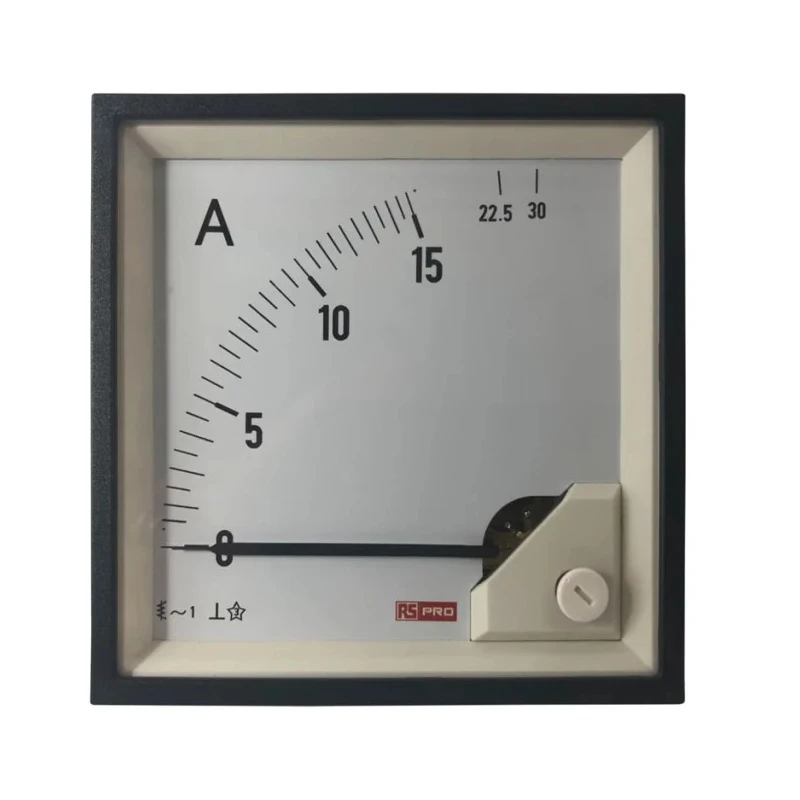

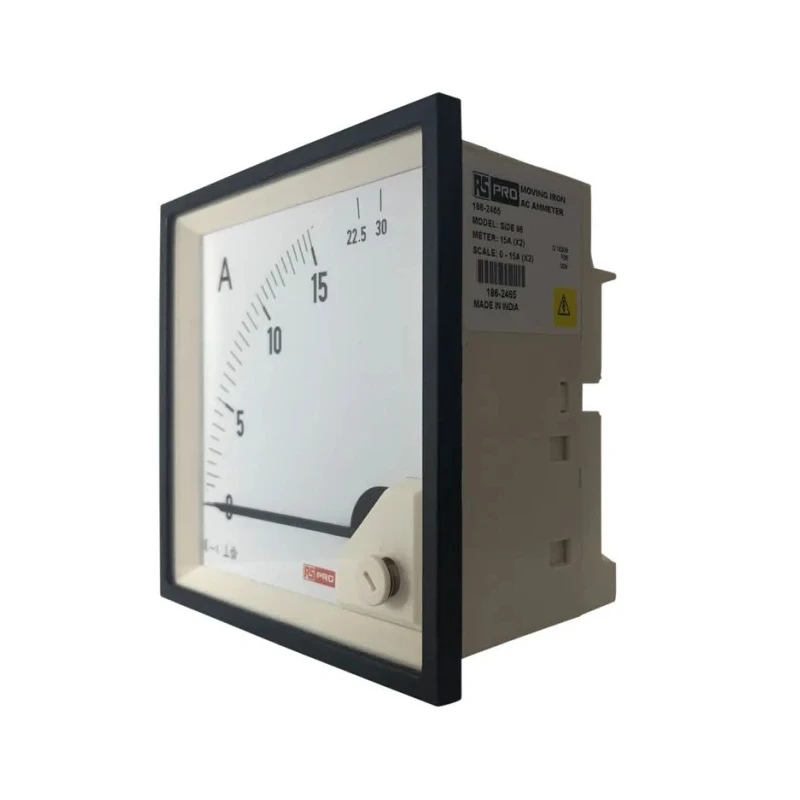

RS PRO Analogue Panel Ammeter 30 A AC, 92 mm x 92 mm, 1% Moving Iron RS186-2465 186-2465

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 30 A AC, 92 mm x 92 mm, 1% Moving Iron RS186-2465 186-2465

Name: RS PRO Analogue Panel Ammeter 30 A AC, 92 mm x 92 mm, 1% Moving Iron RS186-2465 186-2465
Brand: RS PRO
SKU: 334774
Price: 29.72 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2465
Depth	62mm
Series	RS PRO
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	IEC 61010, EN 61010, IEC 529, DIN 43802, DIN 43807, ISO 20653:2006-08, DIN 43701, 93/68/EEC (CE )), DIN 46200/46282, DIN 43718, IEC51/DINEN60051, VDE 0100-410:2018-10, UL 94 V-0, 2014/30/EC, DIN IEC 61554, 2014/35/EC, VDE / VDI 3540
Cutout Height	92mm
Cutout Width	92mm
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	30 A
Pointer deflection	From 0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Nominal range of use	From 100mA to 100A direct connection
Standards/ApprovalsIEC 61010, EN 61010, IEC 529, DIN 43802, DIN 43807, ISO 20653	2006-08, DIN 43701, 93/68/EEC (CE )), DIN 46200/46282, DIN 43718, IEC51/DINEN60051, VDE 0100-410:2018-10, UL 94 V-0, 2014/30/EC, DIN IEC 61554, 2014/35/EC, VDE / VDI 3540

Key Features

The moving iron mechanism provides reliable and accurate true RMS current readings.
The meter features a knife-edge type pointer with deflection from 0° to 90°.
Suitable for frequencies ranging from 15 Hz to 400 Hz with overload capabilities.
The molded polycarbonate square case ensures durability and easy panel mounting.
Operating temperature range from -10°C to 65°C suits diverse industrial environments.
Designed for continuous overload up to 2 times nominal current for monitoring motor inrush currents.
Rated for shock resistance of 15g for pulse durations of 11 milliseconds.
Conforms to multiple international standards including IEC 61010 and EN 61010 for safety and performance.

Product Description

The RS PRO 186-2465 Analogue Panel Ammeter is designed for reliable measurement of AC currents up to 30 A with a high accuracy of 1%, making it ideal for industrial and laboratory applications.

This moving iron type instrument accurately indicates true RMS current values and maintains reading integrity regardless of system waveform. It features a compact 92 mm x 92 mm panel cutout with a depth of 62 mm, enabling integration into standard control and machinery consoles.

Its knife-edge pointer allows clear deflection indication from 0° to 90°, facilitating easy readability for operators monitoring loads or motor starting currents. The meter’s capability to handle overloads up to twice the nominal current ensures robustness in demanding environments.

Encased in a molded polycarbonate square housing, the ammeter resists environmental effects and supports panel mounting. It is suitable for AC frequencies ranging from 15 Hz to 400 Hz and operates reliably over a broad temperature range between -10°C and 65°C.

Compliance with numerous standards such as IEC 61010, EN 61010, and UL 94 V-0 certification highlights its safety and quality assurance, while IP52 rating offers protection against dust ingress and water splashes.

This panel ammeter is a precise and sturdy choice for electrical control panels, process control systems, manufacturing environments, and general industrial use. The moving iron meter ensures stable and true RMS current readings.

Robust polycarbonate casing suitable for panel installations. Overload protection supports continuous operation under high load conditions. Wide temperature operating range enhances versatility across industrial settings.

International standard certifications guarantee reliable safety and performance. Shock resistant design improves durability against mechanical stress. Compact size fits typical DIN style panel cutouts effortlessly. IP52 protection safeguards against dust and water exposure.

Knife-edge pointer allows easy, accurate readings from 0 to 30 amperes AC.
