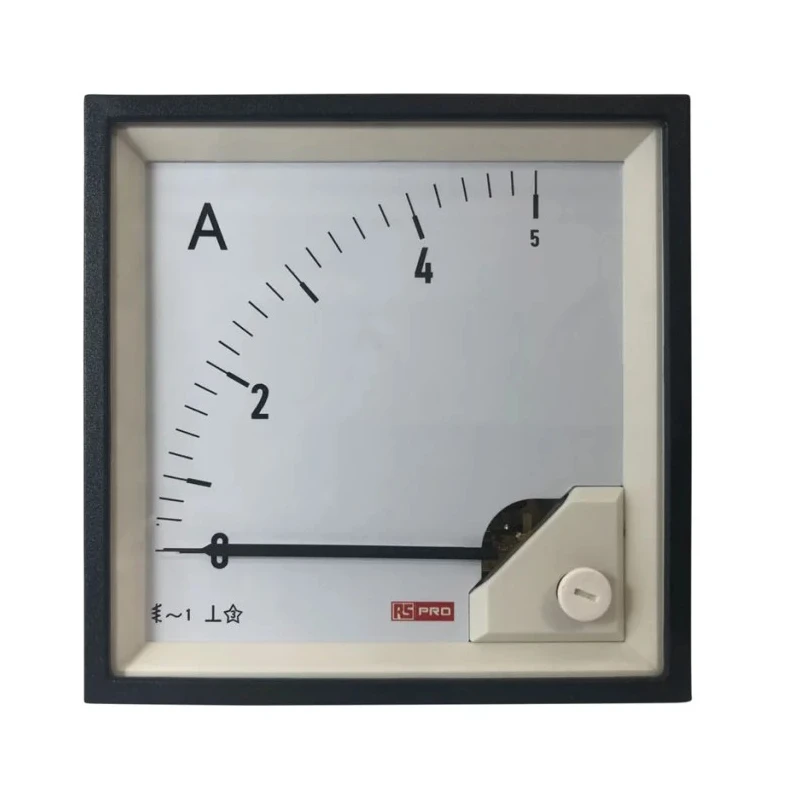

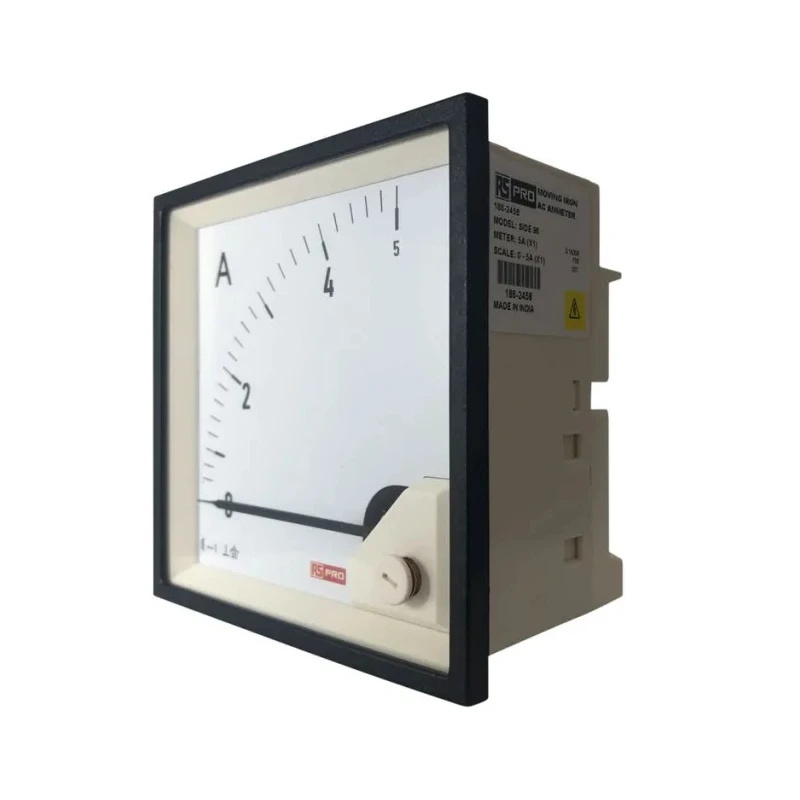

RS PRO Analogue Panel Ammeter AC 5 A, 92 mm x 92 mm, 1% Accuracy Moving Iron 186-2458

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter AC 5 A, 92 mm x 92 mm, 1% Accuracy Moving Iron 186-2458

Name: RS PRO Analogue Panel Ammeter AC 5 A, 92 mm x 92 mm, 1% Accuracy Moving Iron 186-2458
Brand: RS PRO
SKU: 334771
Price: 23.51 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2458
Depth	54mm
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	DIN 43718, 2014/35/EC, VDE 0100-410:2018-10, VDE/VDI 3540, ISO 20653:2006-08, CE, DIN 43807, UL 94 V-0, DIN IEC 61554, IEC 61010, DIN 46200/46282, EN 61010, IEC 529, IEC51/DINEN60051, DIN 43701, 2014/30/EC, 93/68/EEC, DIN 43802
Cutout Height	92mm
Cutout Width	92mm
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	5 A
Pointer deflection	From 0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Nominal range of use	From 100mA to 100A direct connection
Standards/Approvals DIN 43718, 2014/35/EC, VDE 0100-410	2018-10, VDE/VDI 3540, ISO 20653:2006-08, CE, DIN 43807, UL 94 V-0, DIN IEC 61554, IEC 61010, DIN 46200/46282, EN 61010, IEC 529, IEC51/DINEN60051, DIN 43701, 2014/30/EC, 93/68/EEC, DIN 43802

Key Features

Measures alternating current up to 5 A with 1% accuracy.
Features a 92 mm x 92 mm square cut-out size for panel mounting.
Utilizes a moving iron mechanism for true RMS current indication.
Knife-edge type pointer with 0° to 90° deflection ensures precise readings.
Operates reliably in temperature ranges from -10°C to 65°C.
Moulded polycarbonate square case designed for durable panel integration.
Supports overload up to 2 times nominal current continuously.
Shock resistance of 15g pulse duration of 11 milliseconds enhances durability.

Product Description

RS PRO presents model 186-2458, an Analogue Panel Ammeter designed for industrial and control panel current measurement applications. This instrument accurately measures AC current up to 5 A with a 1% accuracy rating, making it suitable for monitoring and control systems in manufacturing, electrical panels, and industrial automation. It features a moving iron element that provides true RMS current readings, maintaining accuracy across various waveform conditions.

The ammeter is built to fit into standard 92 mm x 92 mm panel cut-outs and comes housed in a moulded polycarbonate square case that ensures mechanical protection and safety. The knife-edge pointer offers precise deflection from 0° to 90°, making readings easy and reliable.

Its operational temperature range from -10°C to 65°C and shock resistance of 15g allow it to perform efficiently under industrial environmental conditions. The device also accommodates overloads up to twice the nominal current continuously and functions effectively at relative humidity levels under 75% (non-condensing).

This panel ammeter complies with multiple internationally recognized standards, including DIN 43718, CE certification, UL 94 V-0 flame rating, IEC 61010, ISO 20653, and VDE 0100-410 among others, ensuring safety, reliability, and electromagnetic compatibility.

Measures AC current up to 5 A with 1% accuracy. Moving iron mechanism for true RMS current measurement. Standard 92 mm x 92 mm panel cut-out size for easy installation. Durable polycarbonate moulded case for panel mounting.

Suitable for industrial, commercial, and manufacturing applications. Wide operating temperature range from -10°C to 65°C. Supports continuous overload of 2 times nominal current. Shock and vibration resistant to 15g pulse durations.

Meets multiple international safety and performance standards. Ideal for electrical control panels, automation systems, and process control. Discover more products in the Analogue Panel Ammeter category at EnvMart for reliable industrial automation and control solutions.
