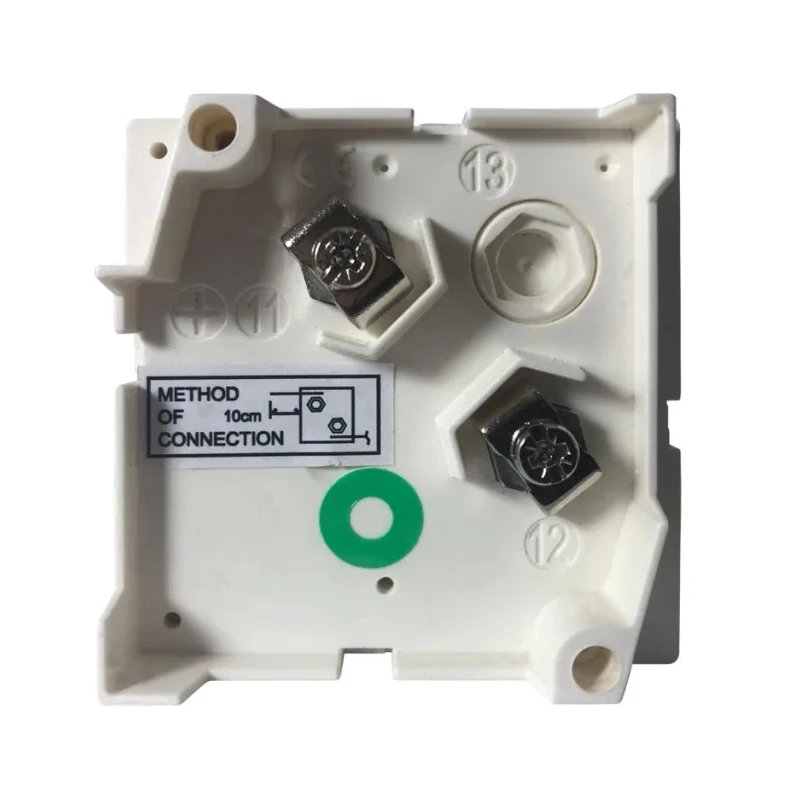

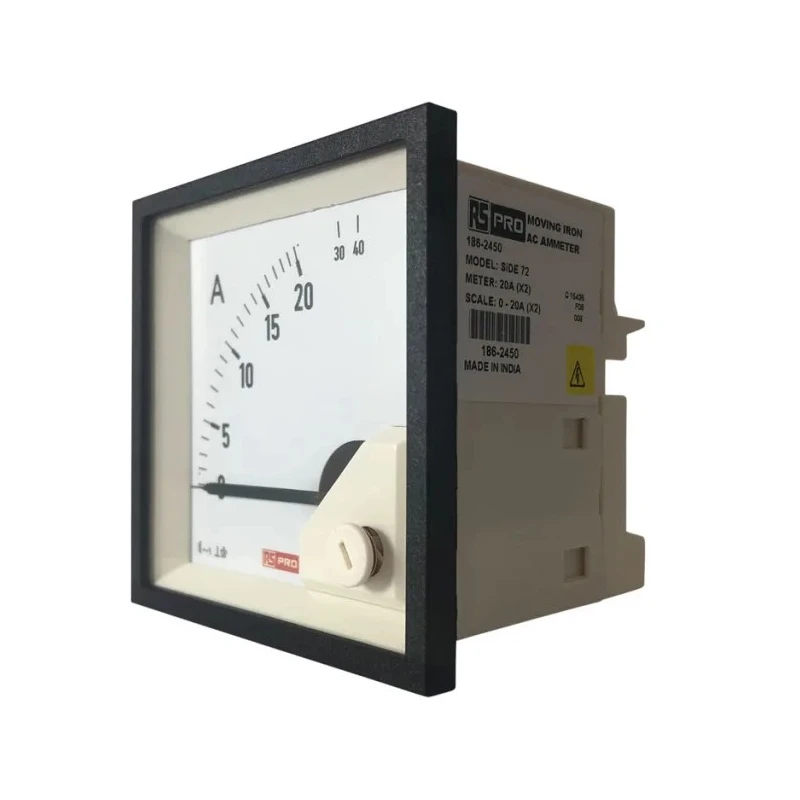

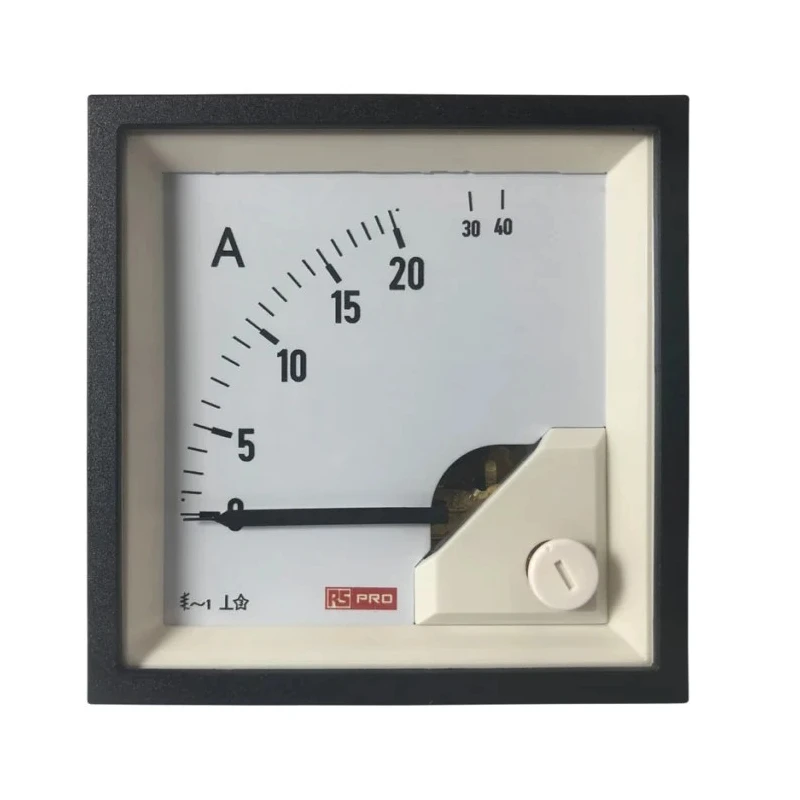

RS PRO Analogue Panel Ammeter 40 A AC, 68 mm x 68 mm, 1% Accuracy Moving Iron 186-2450

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 40 A AC, 68 mm x 68 mm, 1% Accuracy Moving Iron 186-2450

Name: RS PRO Analogue Panel Ammeter 40 A AC, 68 mm x 68 mm, 1% Accuracy Moving Iron 186-2450
Brand: RS PRO
SKU: 334765
Price: 27.88 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2450
Depth	62mm
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	DIN 43802, ISO 20653:2006-08, VDE 0100-410:2018-10, DIN 43807, DIN 43701, IEC51/DINEN60051, IEC 61010, CE, VDE / VDI 3540, 2014/35/EC, IEC 529, EN 61010, DIN 43718, 2014/30/EC, 93/68/EEC, DIN IEC 61554, DIN 46200/46282, UL 94 V-0
Cutout Height	68mm
Cutout Width	68mm
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	40 A
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Nominal range of use	100mA to 100A direct connection
Standards/Approvals DIN 43802, ISO 20653	2006-08, VDE 0100-410:2018-10, DIN 43807, DIN 43701, IEC51/DINEN60051, IEC 61010, CE, VDE / VDI 3540, 2014/35/EC, IEC 529, EN 61010, DIN 43718, 2014/30/EC, 93/68/EEC, DIN IEC 61554, DIN 46200/46282, UL 94 V-0

Key Features

Designed for AC current measurement up to 40 A with high precision.
Robust moulded square polycarbonate case for panel mounting.
Calibration scales available down to 10% with various overload scale options.
Operating temperature range from -10°C to 65°C ensuring stability in diverse environments.
Knife-edge pointer deflection between 0° to 90° offers clear and accurate readouts.
Suitable for frequencies between 15 Hz and 400 Hz to cover various industrial applications.
Shock resistance of 15g enhances durability under mechanical stress.
Overload capacity up to twice the nominal current for continuous operation.

Product Description

RS PRO 186-2450 Analogue Panel Ammeter 40 A AC by RS PRO is engineered to provide reliable and accurate measurement of alternating current up to 40 amperes. Featuring a precision moving iron mechanism, this analogue meter ensures 1% measurement accuracy, suitable for industrial, laboratory, and automation applications.

The instrument includes a 68 mm by 68 mm DIN style cutout for easy panel installation with a moulded polycarbonate square case that guarantees durability and protection. The meter reads RMS current and is calibrated down to 10% with available overload scales of 2x, 3x, 5x, or 6x to monitor motor inrush currents effectively.

Designed for AC current frequencies ranging from 15 Hz to 400 Hz, the device operates reliably within a temperature range of -10°C to 65°C and withstands mechanical shock up to 15g. The knife-edge pointer deflects smoothly from 0° to 90°, delivering clear readings in demanding environments.

This ammeter is IP52 rated, ensuring resistance against dust ingress and dripping water, making it well-suited for use in industrial machines, electrical control panels, and process control systems. Compliance with IEC, DIN, VDE, UL, and CE standards provides assurance of performance and safety.

Designed for AC current measurement up to 40 A with 1% accuracy. Moulded square polycarbonate case suitable for machinery console panels. Wide operating temperature from -10°C to 65°C ensuring usability in various conditions.

Shock resistance of 15g suitable for industrial environments. Overload capability up to 2 times nominal current for sustained loads. Certified with multiple international standards including IEC 61010 and UL 94 V-0.

This RS PRO Analogue Panel Ammeter is ideal for industrial automation, electrical engineering, and process control applications demanding accurate and robust AC current measurement. Explore more RS PRO products to equip your control gear and instrumentation needs effectively.
