RS PRO Analogue Panel Ammeter 25 A AC, 92 mm x 92 mm, 1 % Moving Iron 186-2460

RS PRO 186-2460 Analogue Panel Ammeter 25 A AC is a reliable measuring instrument featuring a 92 mm by 92 mm cut-out size, designed for industrial and laboratory applications requiring accurate AC current measurement with 1% precision. It utilizes a moving iron movement that indicates true RMS values, largely independent of system waveform, ensuring precise readings in diverse electrical environments.

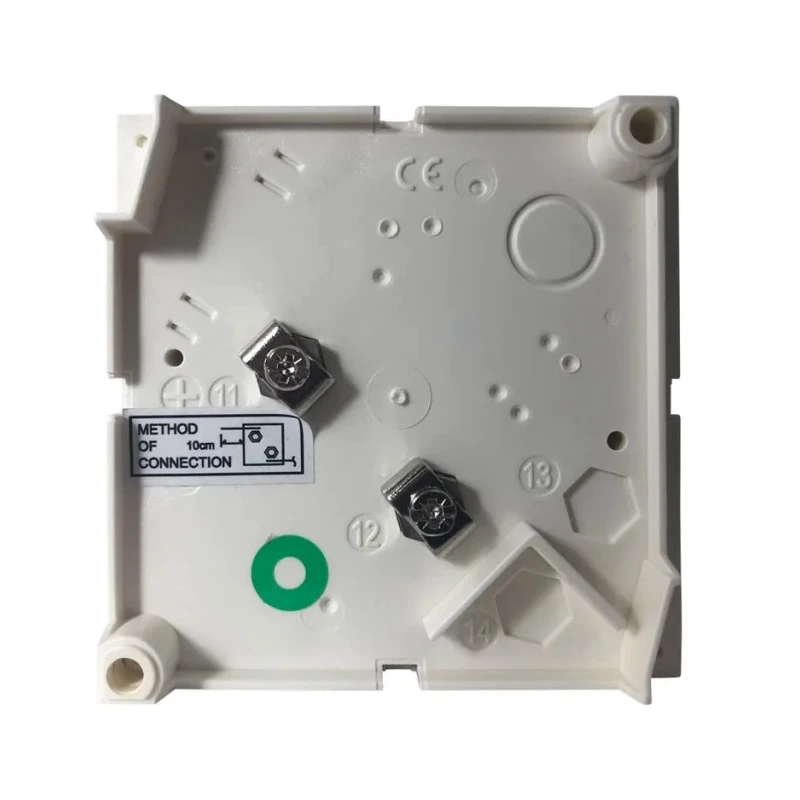

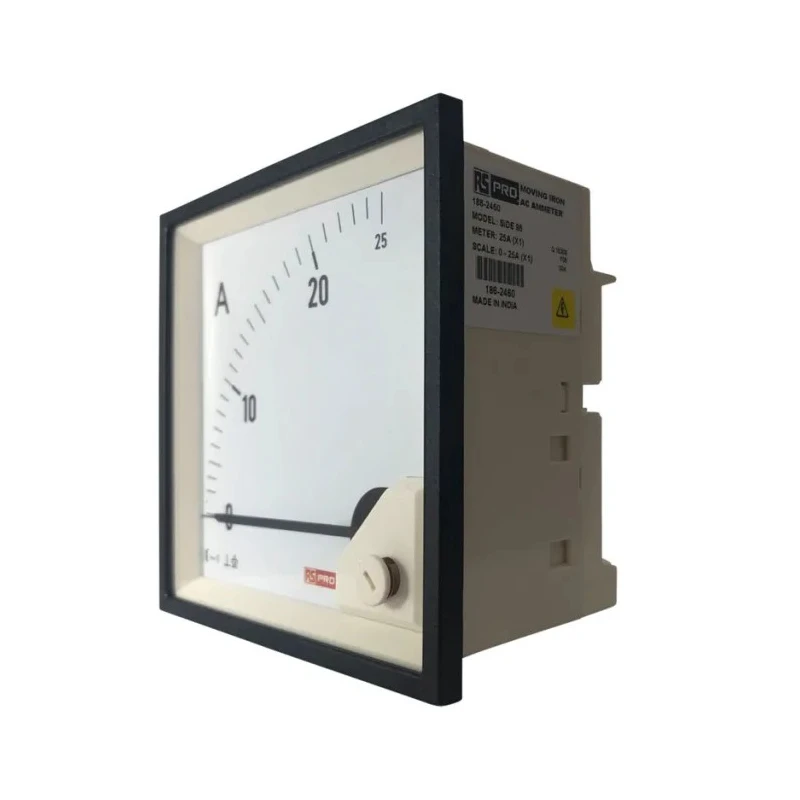

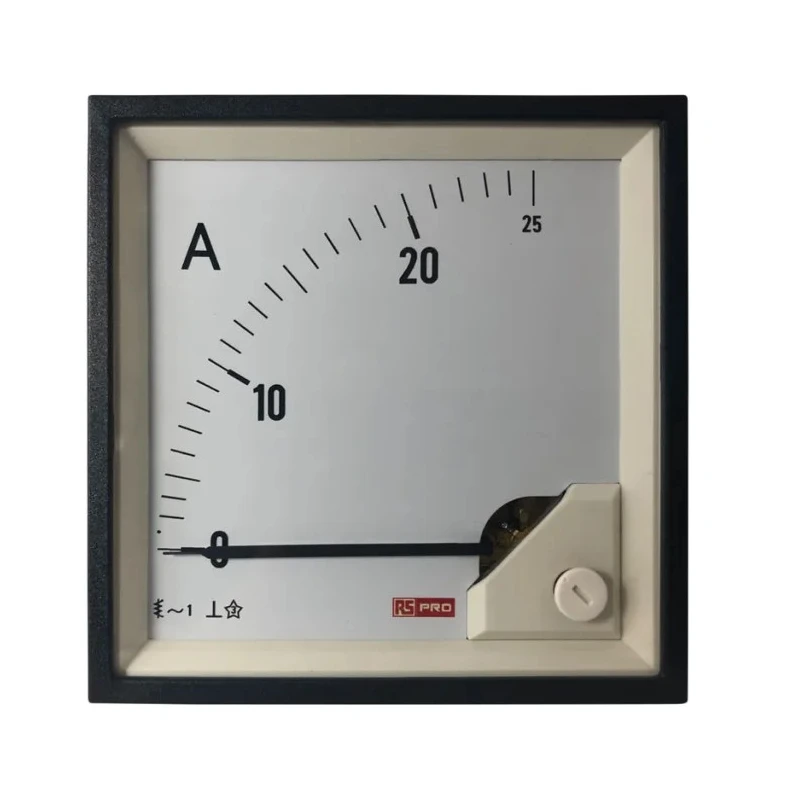

The ammeter is housed within a durable moulded polycarbonate square case, ideal for mounting into machinery control panels or switchgear consoles. Its knife-edge pointer provides clear indication with a deflection range from 0° to 90°, facilitating easy monitoring of AC currents up to 25 amperes.

This panel meter is engineered to operate effectively in ambient temperatures ranging from -10°C up to 65°C and withstands shock resistance of 15g for pulse durations of 11 milliseconds, highlighting its robustness for industrial usage. It supports measurement frequencies from 15 Hz to 400 Hz, making it suitable for a wide variety of AC current measuring scenarios.

The scales are finely calibrated down to 10% of the range, and the device can accommodate overload scales of X2, X3, X5, or X6 to measure motor inrush currents, enhancing its utility in motor and machinery diagnostics. The ammeter maintains reliability even in relative humidity conditions of less than 75% annual average (non-condensing).

This product complies with a broad spectrum of international standards and approvals such as VDE/VDI 3540, DIN 43807, IEC 529, UL 94 V-0, IEC 61010, CE certification, and others, ensuring adherence to global quality and safety requirements. It is ideal for use in industrial automation, electrical panels, control gear systems, process control, and electrical installations requiring dependable current measurement.

Measures AC currents up to 25 A with high precision. Features a robust moulded polycarbonate square case for panel mounting. Knife-edge type pointer with 0° to 90° deflection ensures clear reading. Operates reliably from -10°C to 65°C temperature range.

Shock resistant to 15g pulse for 11 milliseconds enhances durability. Capable of handling overloads up to 2 times nominal current continuously. Suitable for frequencies between 15 Hz and 400 Hz. Calibrated scales down to 10% with optional overload scales for inrush current measurement.

Resistant to humidity conditions below 75% annual average noncondensing. Complies with multiple international standards, including CE, UL 94 V-0, IEC 61010.

This RS PRO ammeter is an essential tool for industrial, laboratory, and commercial electrical measurement tasks. Browse more products in the Analogue Panel Ammeter category at EnvMart to find complementary components and accessories.
