RS PRO Analogue Panel Ammeter 10 A AC, 68 mm x 68 mm, 1 % Meter Accuracy Moving Iron 186-2442

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 10 A AC, 68 mm x 68 mm, 1 % Meter Accuracy Moving Iron 186-2442

Name: RS PRO Analogue Panel Ammeter 10 A AC, 68 mm x 68 mm, 1 % Meter Accuracy Moving Iron 186-2442
Brand: RS PRO
SKU: 334758
Price: 24.84 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2442
Depth	54mm
Series	RS PRO
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	DIN IEC 61554, CE (2014/30/EC,2014/35/EC,93/68/EEC)), DIN 46200/46282, IEC 529, IEC51/DINEN60051, EN 61010, VDE / VDI 3540, DIN 43807, VDE 0100-410:2018-10, UL 94 V-0, DIN 43802, DIN 43701, ISO 20653:2006-08, DIN 43718, IEC 61010
Cutout Height	68mm
Cutout Width	68mm
Maximum Measurement	1000 V ac, 600 V dc
Moving Element	Moving Iron
Maximum Ampere Value	10 A
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Nominal range of use	100mA to 100A direct connection

Key Features

Provides accurate AC current measurement using moving iron technology.
Features a compact 68 mm x 68 mm cut-out size for easy panel mounting.
Durable moulded polycarbonate housing suitable for control panels.
Operating temperature range from -10°C to 65°C ensures reliability under diverse conditions.
Knife-edge pointer enables clear and precise readings up to 90° deflection.
Capable of handling nominal currents from 100mA to 100A with overload protection.
Suitable for frequencies between 15 Hz and 400 Hz with true RMS indication.
Compliance with multiple international standards including DIN IEC, CE, UL, and VDE certifications.

Product Description

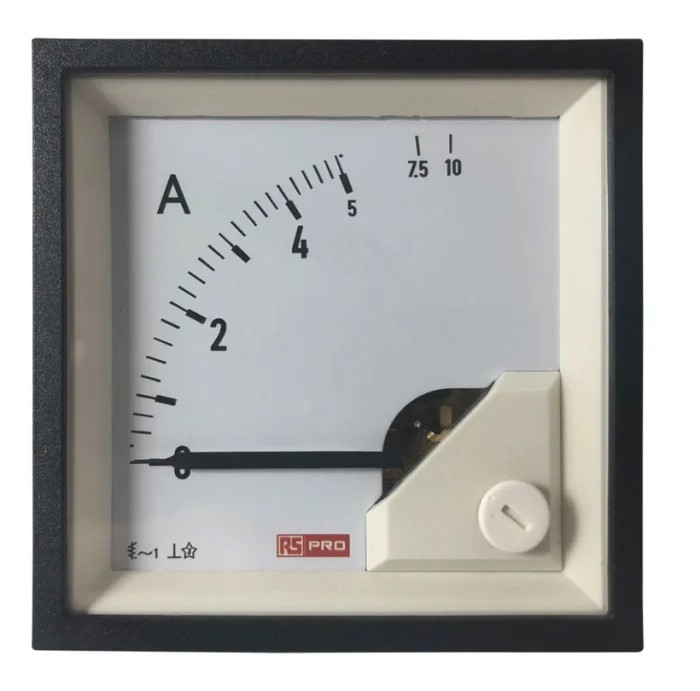

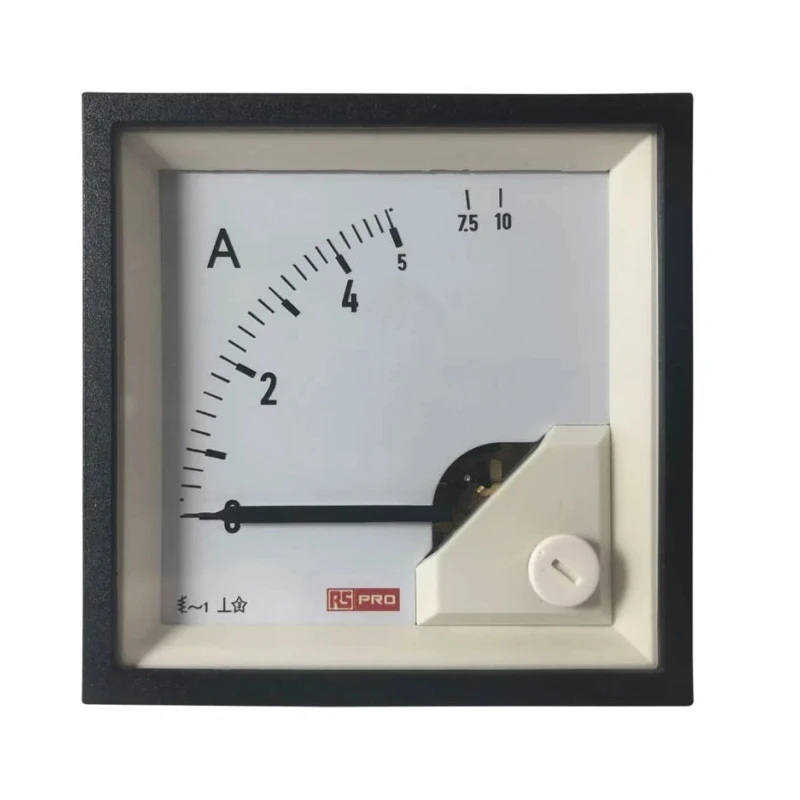

RS PRO 186-2442 Analogue Panel Ammeter is a precision instrument designed for accurate AC current measurement with a nominal range from 100mA to 100A direct connection. Featuring a moving iron mechanism, it ensures reliable true RMS readings substantially independent of waveform distortion, suitable for industrial and process control applications.

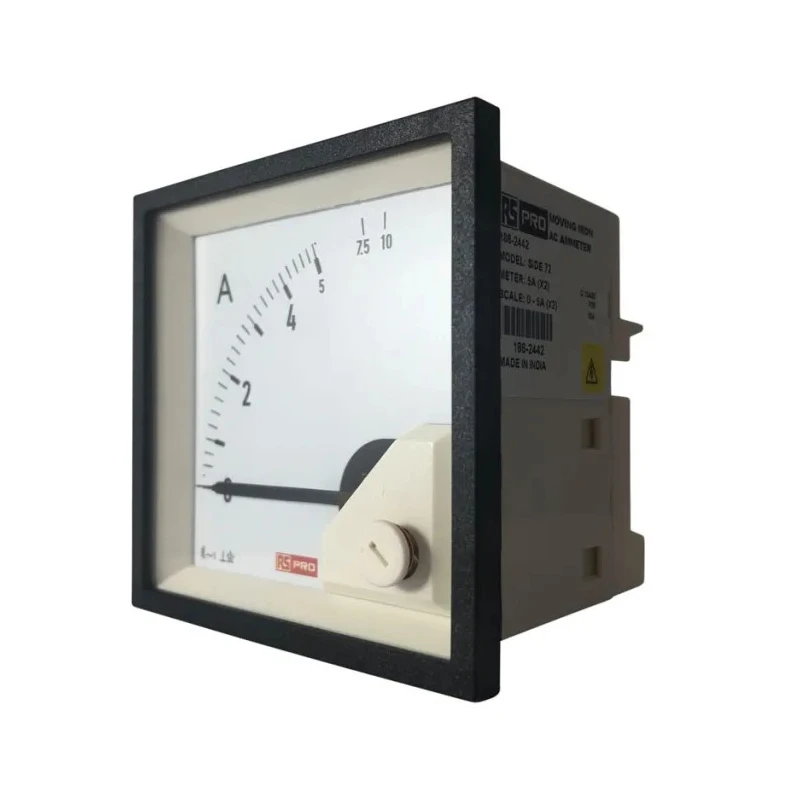

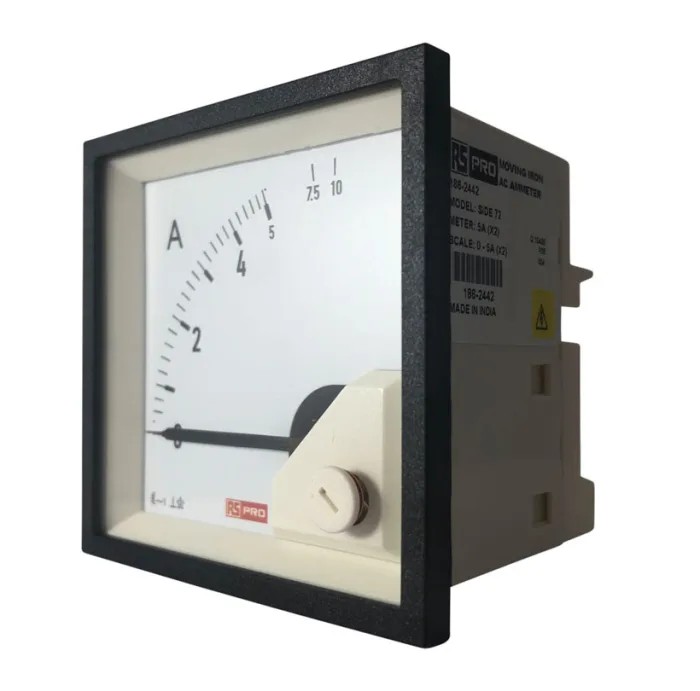

The instrument is housed in a moulded square polycarbonate case measuring 68 mm x 68 mm for cutout width and height, with a depth of 54 mm, allowing easy integration into control and switchgear panels.

Its operating temperature range between -10°C and 65°C guarantees stable performance across diverse environments. The 1% meter accuracy and knife-edge pointer with 90° deflection provide precise and easy-to-read measurements. Designed for frequency ranges from 15 Hz to 400 Hz, it supports overload scales up to six times nominal current for measuring motor inrush currents.

The ammeter complies with rigorous standards including DIN IEC 61554, EN 61010, CE directives, UL 94 V-0, and other international certifications ensuring safety and quality compliance in industrial settings.

Additional features include shock resistance up to 15g for pulses of 11 ms duration and relative humidity tolerance below 75% annual average (non-condensing). This makes the meter ideal for manufacturing, electrical panels, HVAC, laboratory, and industrial instrumentation uses.

Accurate moving iron mechanism with 1% measurement accuracy. Compact 68 mm x 68 mm panel cutout size for versatile mounting. Rugged polycarbonate housing suitable for industrial environments. Wide operating temperature range from -10°C to 65°C.

Knife-edge type pointer with 0° to 90° deflection for clear indications. Overload capacity of two times nominal current continuous operation. Compliance with multiple international standards and certifications. Robust shock resistance and humidity tolerance for reliable use.

True RMS indication, suitable for distorted waveforms in industrial systems.

RS PRO Analogue Panel Ammeter 186-2442 is a dependable and precise instrument built for electrically demanding environments requiring accurate current monitoring and control. Explore the Electronics & Electricals Automation & Control Gear range at EnvMart for compatible products and accessories.
