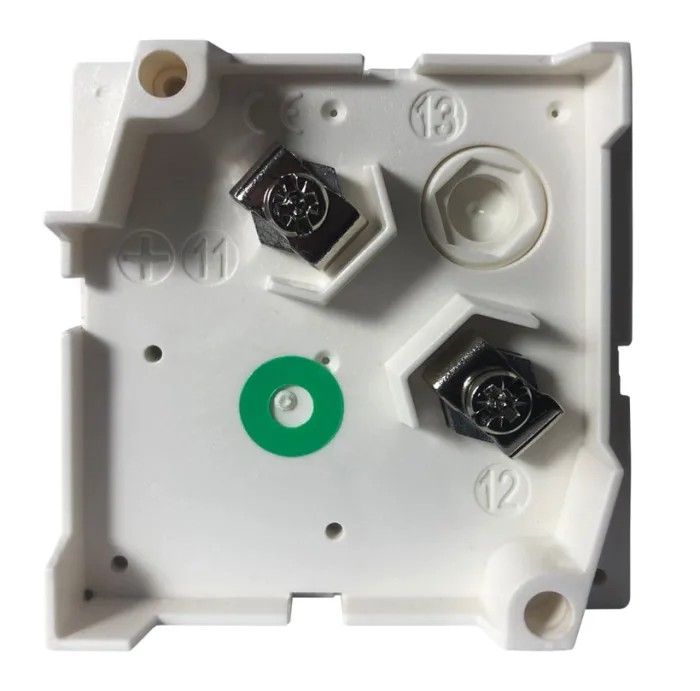

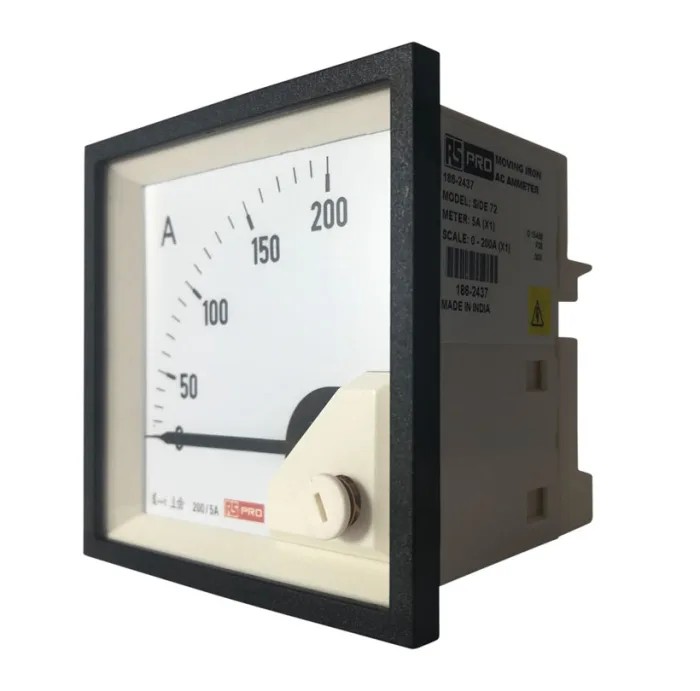

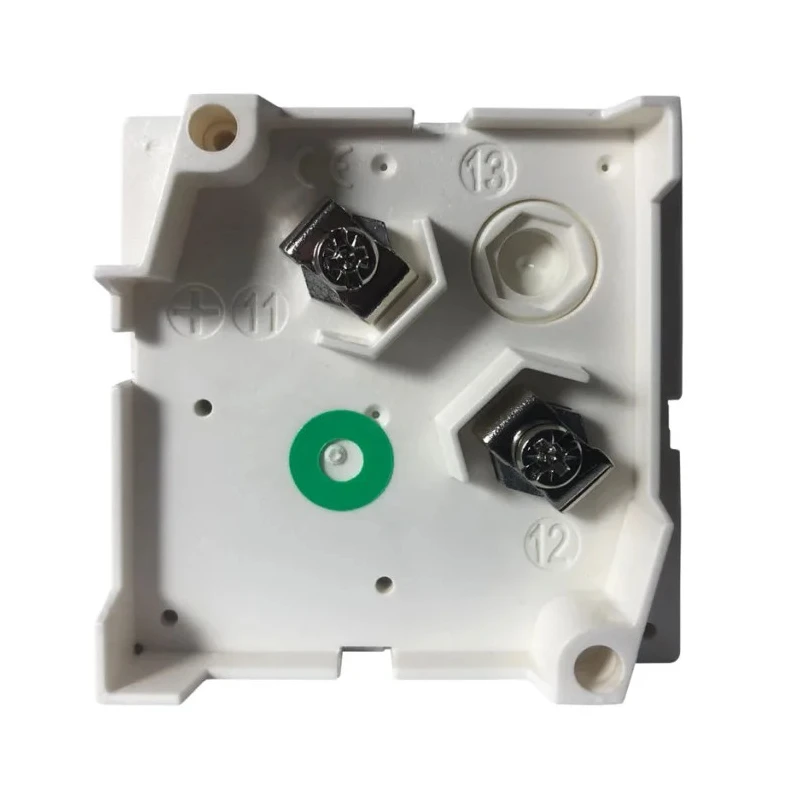

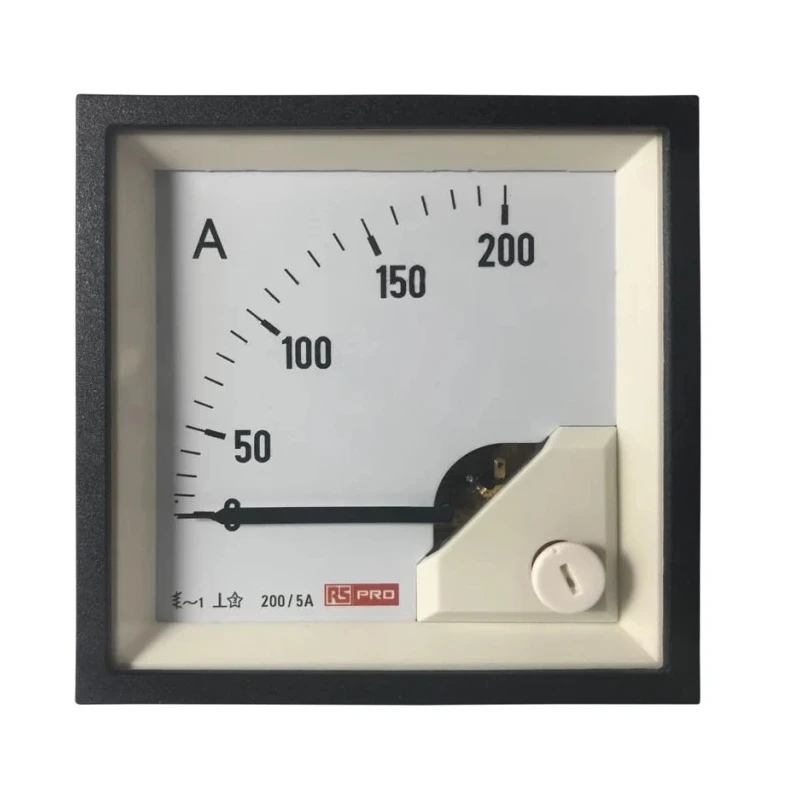

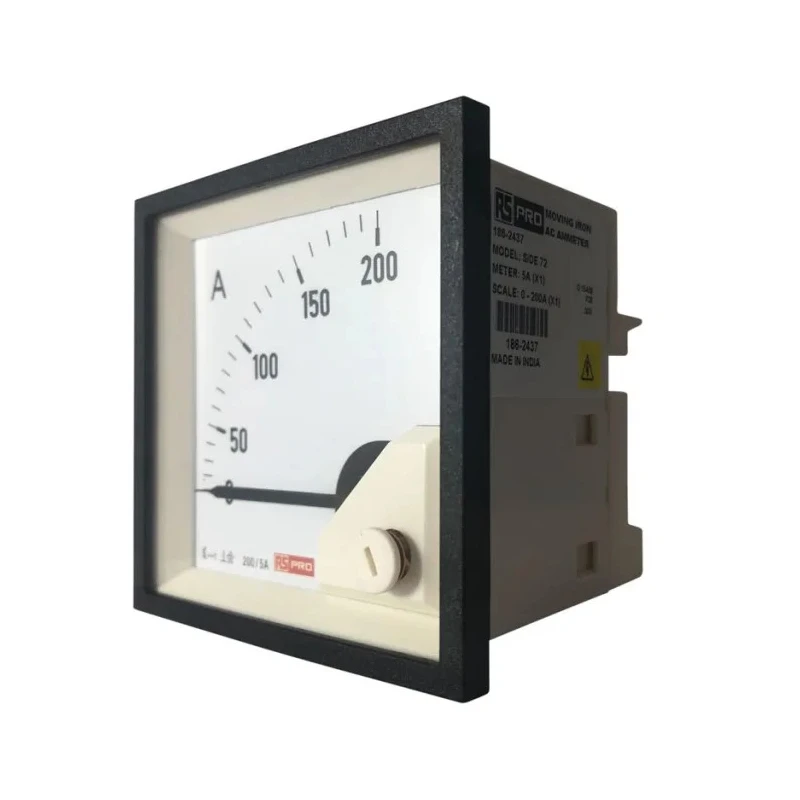

RS PRO Analogue Panel Ammeter 200 A AC, 68 mm x 68 mm, 1 % Moving Iron 186-2437
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2437 |
| Depth | 62mm |
| Series | RS PRO |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Standards/Approvals | DIN 43802, DIN 43807, DIN 43718, EN 61010, IEC 529, IEC51/DINEN60051, CE, 93/68/EEC, VDE 0100-410:2018-10, ISO 20653:2006-08, DIN IEC 61554, DIN 46200/46282, UL 94 V-0, 2014/30/EC, IEC 61010, VDE / VDI 3540, DIN 43701, 2014/35/EC |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| Minimum Measurement | 15 mV (DC), 6 V (AC) |
| Maximum Measurement | 600 V dc, 1000 V ac |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 200 A |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| Nominal range of use | 100mA to 100A direct connection |
Key Features
- Provides true RMS value measurement suitable for irregular waveforms.
- Features a durable moulded polycarbonate square case for panel mounting.
- Operates accurately within -10°C to 65°C temperature range.
- Equipped with a knife-edge pointer and 0° to 90° deflection for clear readings.
- Supports overload up to twice the nominal current continuously.
- Resistant to shock with 15g rating for pulse durations of 11 milliseconds.
- Rated for relative humidity less than 75% annual average, non-condensing.
- Complies with multiple international standards including CE, IEC, VDE, and UL 94 V-0.
Product Description
The RS PRO 186-2437 Analogue Panel Ammeter is a precision instrument engineered for accurate AC current measurement up to 200 A within electrical panels. Utilizing a moving iron mechanism, it is capable of providing true RMS values independent of waveform distortions, making it highly reliable for industrial, manufacturing, HVAC, and process control applications.
Constructed with a molded polycarbonate square case, the meter is designed for seamless panel mounting with a compact cutout size of 68 mm by 68 mm and a depth of 62 mm, making integration into control gear and machinery consoles straightforward. Its robust design includes shock resistance of 15g for short pulse durations, ensuring durability under harsh operating conditions.
This ammeter operates efficiently over a wide temperature range, from -10°C to 65°C, and supports a relative humidity level below 75% annual average, non-condensing, maintaining accuracy in diverse environments. The knife-edge pointer provides clear and precise readings with a deflection range of 0° to 90°.
The instrument features overload protection up to 2 times the nominal current continuously, suitable for monitoring motors and electrical loads with potential inrush currents. It meets stringent international standards, including DIN, IEC, VDE, and UL certifications, ensuring safety, reliability, and compliance for industrial and laboratory use.
True RMS AC current measurement with moving iron movement. Compact 68 x 68 mm cutout for panel installation. Durable polycarbonate case for long life and safety. Accurate 1 % meter accuracy over wide operating conditions.
Robust design with shock resistance and overload capacity. Complies with EN 61010, IEC 61010, VDE, CE, UL standards. Ideal for industrial automation, manufacturing, HVAC, and process control panels. Operates effectively between -10 and 65 degrees Celsius.
This reliable RS PRO ammeter is suitable for integration in various industrial sectors requiring accurate, consistent current monitoring and control. Explore the Electronics & Electricals category at EnvMart for compatible automation and control gear.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measurement capacity of this ammeter is 200 A.
This model operates efficiently within a temperature range of -10°C to 65°C.
The ammeter has a meter accuracy of 1%.
It supports overload conditions up to twice the nominal current continuously.
It features a knife-edge type pointer for clear readings.
The cutout dimensions required for installation are 68 mm by 68 mm.
This unit has a shock resistance rating of 15g for pulse durations of 11 milliseconds.
It operates effectively in environments with relative humidity less than 75% annual average, non-condensing.
It complies with multiple international standards including DIN, IEC, VDE, and UL 94 V-0.
The minimum measurement capability is 15 mV (DC) and 6 V (AC).
This ammeter is suitable for industrial, manufacturing, HVAC, and process control applications.
The ammeter utilizes a moving iron mechanism for true RMS AC current measurement.
