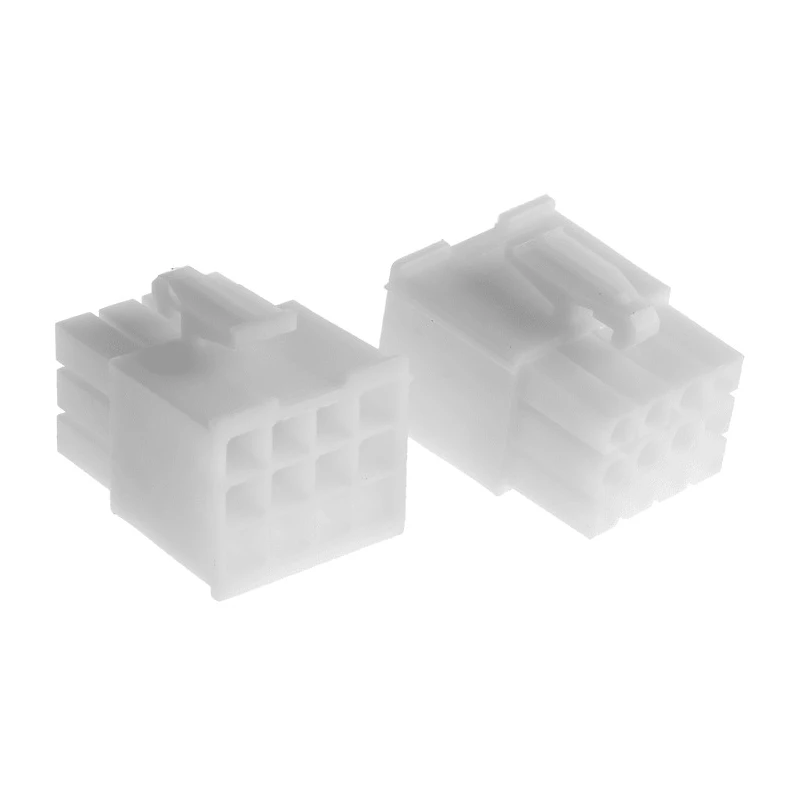

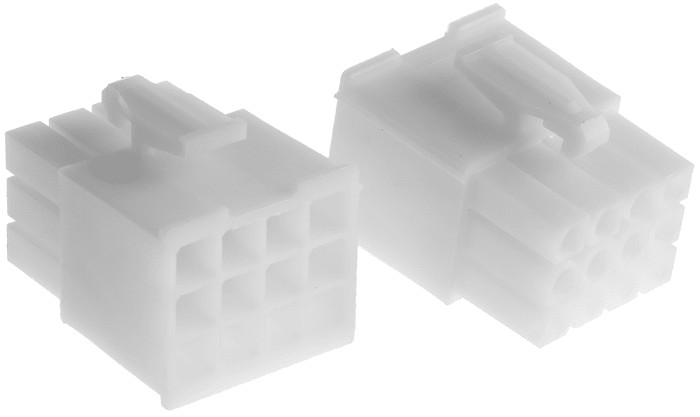

TE Connectivity Mini-Universal MATE-N-LOK Male Connector Housing 4.2 mm Pitch 12 Way 3 Row Straight 172170-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 18.2mm |
| Model | 172170-1 |
| Width | 13.99mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Universal MATE-N-LOK |
| Number of Rows | 3 |
| Pitch | 4.2mm |
| For Use With | Wire-to-Board Connector |
| Number of Contacts | 12 |
| Connector Gender | Male |
Key Features
- Constructed from rugged nylon for durable performance.
- Designed for panel mounting with positive locking to prevent mismating.
- Accepts both pin and socket contacts for versatile connections.
- Compact and splash-proof design suitable for industrial and commercial use.
- Provides low insertion and extraction force for efficient assembly.
- Compatible with Universal MATE-N-LOK contacts in wire-to-board configurations.
- Ideal for consumer electronics, power supplies, HVAC, lighting, and portable devices.
- Features flanges for secure panel mounting and ensures secure mating retention.
Product Description
TE Connectivity 172170-1 is a Mini-Universal MATE-N-LOK male connector housing, designed with a 4.2 mm pitch, 12 way contacts distributed in 3 rows configured in a straight orientation. This connector housing is manufactured from robust nylon material, ensuring durability and reliability in industrial and commercial applications.
This connector housing is engineered for panel mounting and features a positive locking mechanism to prevent mismating, supporting a secure and stable connection under varying environmental conditions. It accepts a combination of pin and socket contacts, expanding its versatility and compatibility within the Universal MATE-N-LOK connector system.
The design emphasizes low insertion and extraction forces facilitating efficient assembly and maintenance. Furthermore, the housing provides a compact and splash-proof configuration, making it suitable for applications that require sealing against environmental exposure.
Common applications include consumer electronics, commercial equipment, power supplies, HVAC systems, lighting fixtures, and portable devices. Its flanged panel mount design offers secure installation within control panels and enclosures.
Constructed from rugged nylon for durability. Positive locking prevents mismating. Accepts pin and socket contacts. Splash-proof and compact design. Low insertion/extraction force. Designed for wire-to-board connection. 12 contacts in 3 rows, 4.2 mm pitch.
Panel mount with flanges for secure fitting.
This Mini-Universal MATE-N-LOK Connector Housing from TE Connectivity is ideal for use in various industrial, laboratory, commercial, and manufacturing setups requiring reliable and secure electrical interconnections. Explore the Electronics & Electricals category at EnvMart for additional high-quality connectors and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Mini-Universal MATE-N-LOK male connector housing features a 4.2 mm pitch and accommodates 12 contacts arranged in 3 rows.
The housing is constructed from rugged nylon, ensuring durability and reliability in various applications.
It is designed for panel mounting and includes flanges for secure installation within control panels and enclosures.
The connector housing is designed in a straight orientation, facilitating easy connections.
This model accepts both pin and socket contacts, allowing for versatile connections within the Universal MATE-N-LOK system.

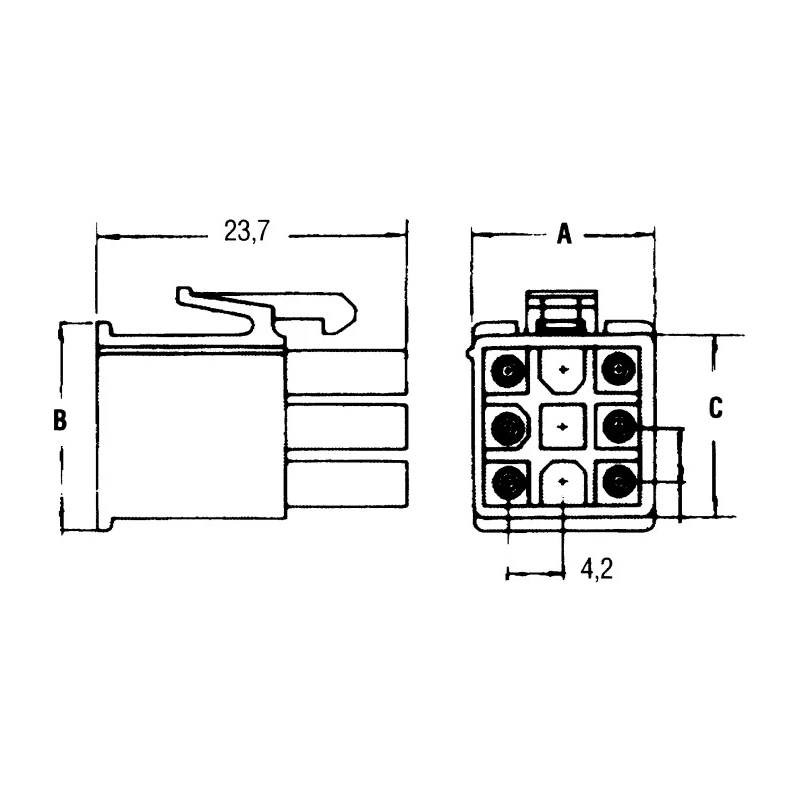

The dimensions of the connector housing are 18.2 mm in length and 13.99 mm in width.
It is ideal for use in consumer electronics, power supplies, HVAC systems, lighting fixtures, and portable devices.
Yes, it features a splash-proof design, making it suitable for applications that require sealing against environmental exposure.
The model number for this Mini-Universal MATE-N-LOK male connector housing is 172170-1.
It is equipped with a positive locking mechanism to prevent mismating, ensuring a secure and stable connection.
This connector housing is manufactured in India.
It is designed for wire-to-board connections, enhancing its versatility in various applications.
