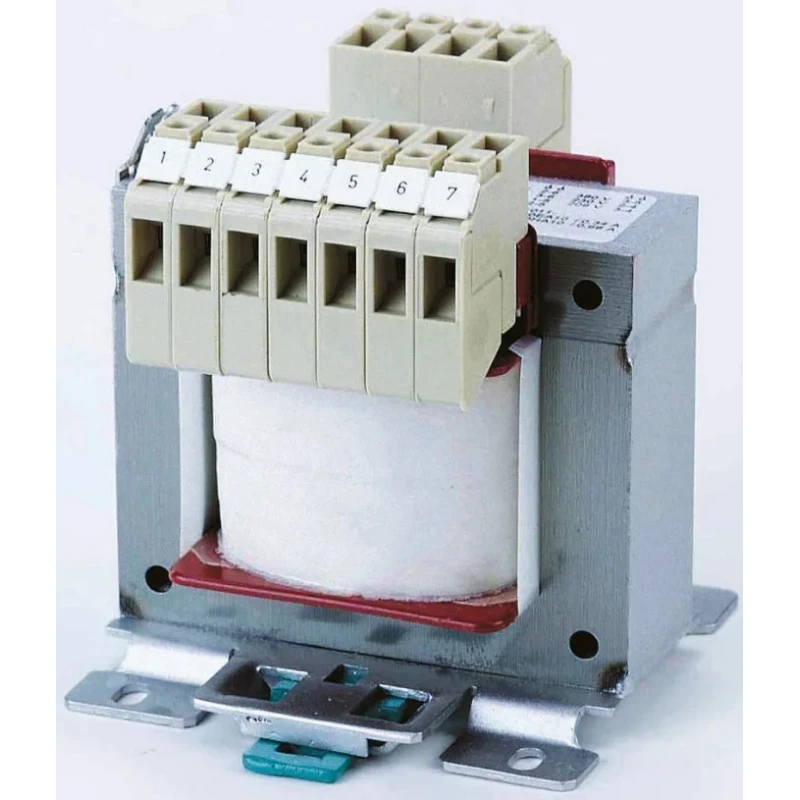

Siemens 2.5 kVA DIN Rail Transformer, 230 V AC 400 V AC Primary, 42 V 24 V Secondary, Screw Clamp 4AM4042-8JD40-0FA0

Free Delivery in India | Lowest Global Shipping Charges

Siemens 2.5 kVA DIN Rail Transformer, 230 V AC 400 V AC Primary, 42 V 24 V Secondary, Screw Clamp 4AM4042-8JD40-0FA0

Name: Siemens 2.5 kVA DIN Rail Transformer, 230 V AC 400 V AC Primary, 42 V 24 V Secondary, Screw Clamp 4AM4042-8JD40-0FA0
Brand: Siemens
SKU: 334178
Price: 426.95 USD
Availability: InStock



Category DIN Rail Transformer Brand Siemens Condition New

Specifications

Country of Origin	Czech Republic
Brand	Siemens
Length	106mm
Model	4AM4042-8JD40-0FA0
Depth	118mm
Gross Weight	16.9kg
Width	98mm
Mount Type	Rail
Series	4A
Termination Type	Screw Clamp
Maximum Operating Temperature	55°C
Number of outputs	2
Primary Voltage	230 V ac, 400 V ac
Secondary Voltage	42 V, 24 V
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Operates at primary voltages of 230 V AC and 400 V AC.
Features screw clamp termination for secure electrical connections.
Compact rail mount design measuring 106 mm x 98 mm x 118 mm.
Supports operating frequency range from 50 Hz to 60 Hz.
Maximum operating temperature of 55°C ensures durability.
Built with electrically isolated coils for safety.
Complies with EN 61558-2-6, -2-1, and -2-2CUUS standards.
Includes protection against short circuits with motor protection switches on main side.

Product Description

Siemens 4AM4042-8JD40-0FA0 DIN Rail Transformer is a robust 2.5 kVA single-phase control transformer designed for industrial and commercial electronic applications. It operates with primary voltages of 230 V AC and 400 V AC, providing dual secondary outputs at 42 V and 24 V, making it versatile for various power supply needs.

This transformer mounts easily on standard DIN rails, featuring a compact form factor with dimensions of 106 mm length, 98 mm width, and 118 mm depth. Its screw clamp termination type offers secure and reliable electrical connections for ease of installation and maintenance.

Engineered to operate efficiently within a frequency range of 50 Hz to 60 Hz, it supports a maximum operating temperature of 55°C. The 4A series transformer incorporates electrically isolated coils to enhance safety and performance, and is suitable as power, safety, or displacement transformer in accordance with applicable EN norms.

It is equipped with features to protect against short circuits and overloads by using motor protection switches on the primary side. This ensures reliable operation and longevity under demanding conditions.

The device conforms to international safety and quality standards including EN 61558-2-6, EN 61558-2-1, EN 61558-2-2CUUS, and VDE 0570, guaranteeing compliance and safe usage in diverse industrial environments.

Operates at 230 V AC and 400 V AC primary voltage range. Dual secondary voltages of 42 V and 24 V for flexible applications. DIN rail mount for easy integration into electrical panels. Screw clamp termination provides solid electrical contact.

Supports frequency from 50 Hz to 60 Hz with max 55°C temperature rating. Electrical isolation of coils enhances safety. Compliant with key international safety standards. Includes motor protection switches for short circuit prevention.

Manufactured in Czech Republic, weighing 16.9 kg.

This Siemens DIN Rail Transformer is ideal for industrial, manufacturing, electronic component, power supply, and control system applications requiring reliable voltage transformation with safety compliance. Explore the full range of Siemens transformers and power products in EnvMart for advanced electrical solutions.
