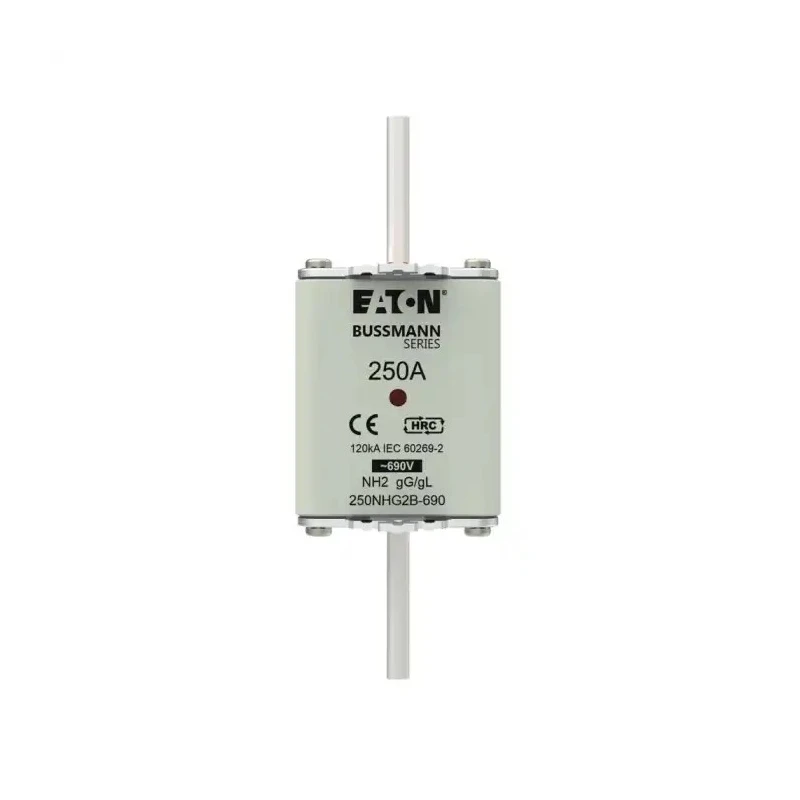

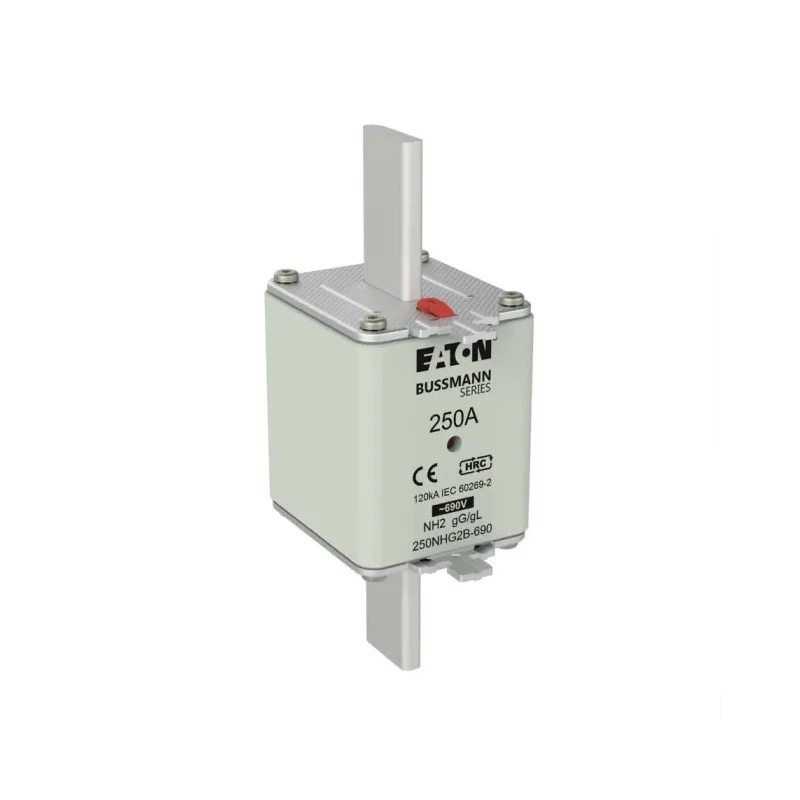

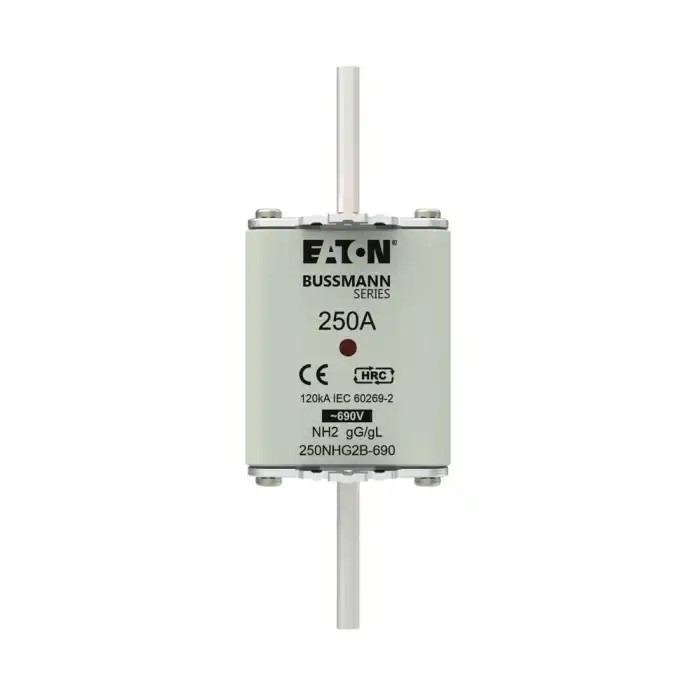

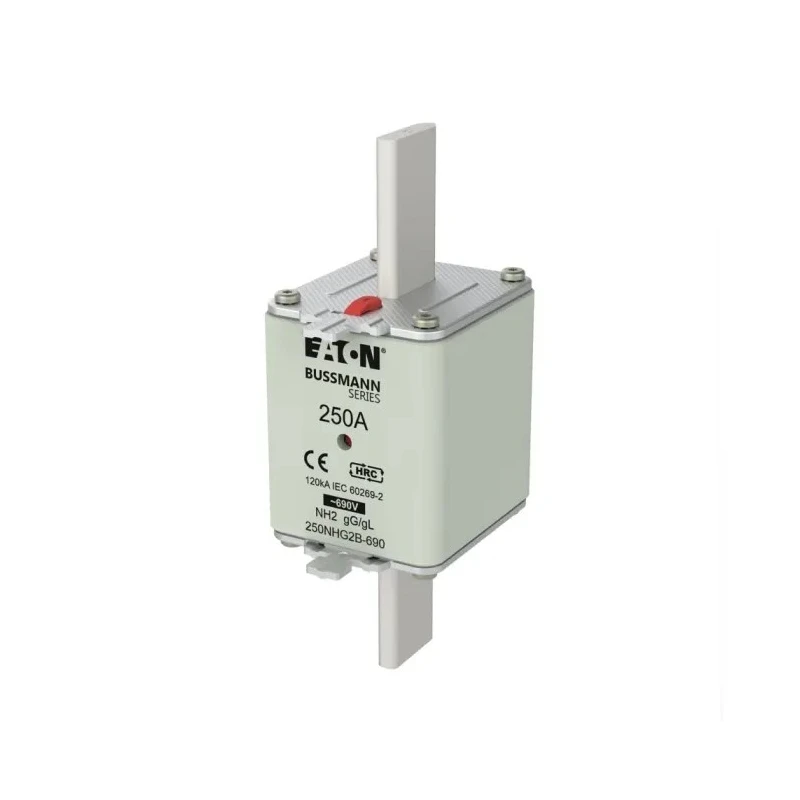

Eaton 250A Centred Tag Fuse NH2 690V AC High Rupture Capacity 150mm Length 25.1mm Tag Width 250NHG2B-690

Eaton 250NHG2B-690 is a centred tag fuse type NH2 designed for high voltage applications with a current rating of 250A and voltage rating of 690V AC. It offers a robust ceramic body construction that provides superior durability and heat resistance necessary in robust electrical installations. This fuse meets IEC 60269 and DIN 43620 compliance, making it suitable for industrial and commercial electrical protection systems.

The fuse features a blade tag type for simple installation and removal, enhancing maintenance efficiency. It has a live gripping lug to ensure secure and reliable connections, preventing accidental loosening during operation. The fuse is rated gG/gL indicating it is intended for both overload and short-circuit protection, covering general industrial equipment protection needs.

Its dimensional measurements of 150mm length, 54mm width, and 71mm height allow compatibility with various fuse holders and switch-disconnectors. It works seamlessly with SD2-D single pole NH fuse bases and TD2-D triple pole NH fuse bases as well as EBH size 00 to 4 horizontal fuse switch-disconnectors.

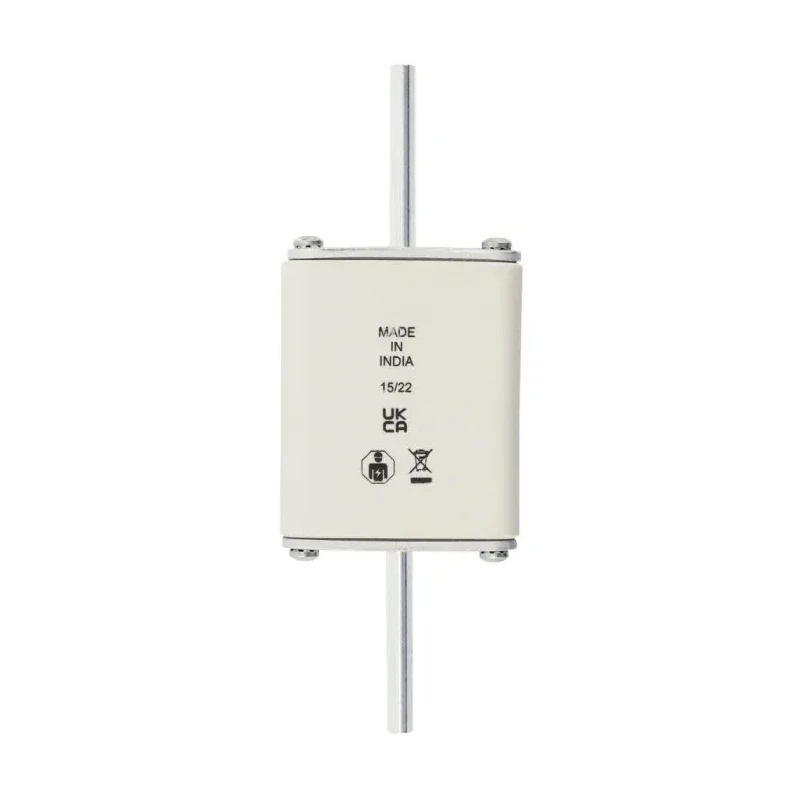

The high rupture capacity of 120kA provides safety against fault currents, protecting surrounding electrical equipment and personnel. This Eaton NH fuse is ideally suited for high voltage distribution systems and is manufactured in India adhering to local quality and safety standards.

Robust ceramic body provides high durability and heat resistance. Blade tag design facilitates straightforward installation and replacement. gG/gL classification assures protection against overload and short circuits. Complies with IEC 60269 and DIN 43620 standards.

Live gripping lug ensures secure electrical connections. Compatible with SD2-D and TD2-D NH fuse bases and EBH size 00 to 4 fuse switch-disconnectors. 120kA breaking capacity for high fault current safety. 150mm length, 54mm width, 71mm height dimensions.

Ideal for industrial, manufacturing, and electrical distribution use cases. Manufactured in India for assured quality.

This Eaton centred Tag Fuse is an essential component for electrical system safety in industrial, commercial, and manufacturing environments. It ensures reliable circuit protection with ease of maintenance and installation. Explore more Eaton electrical protection solutions to enhance safety and efficiency in your projects.
