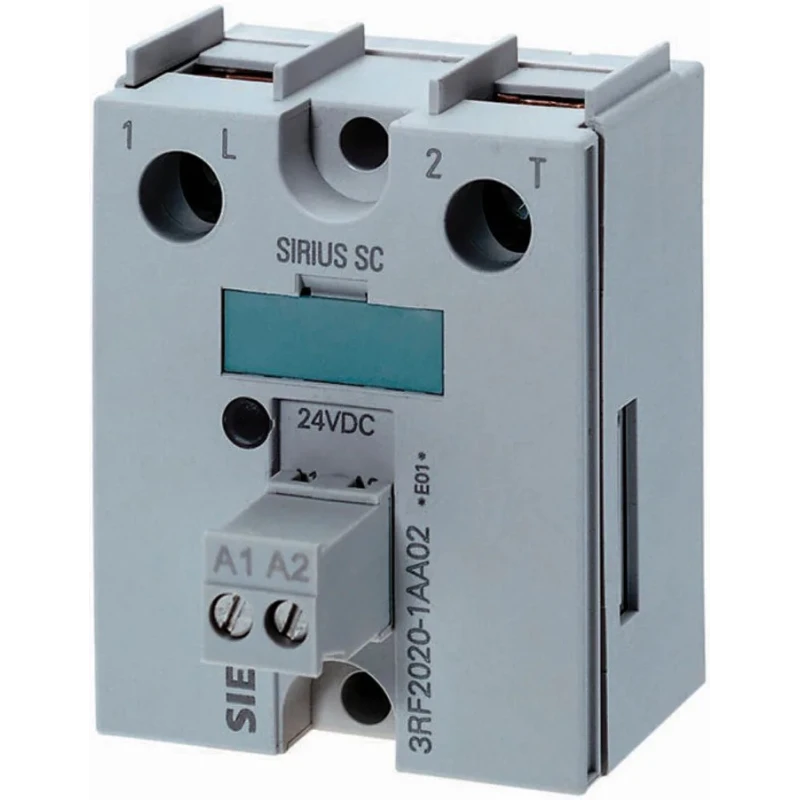

Siemens 3RF2 Series Solid State Relay 20 A Load, DIN Rail Mount, 460 V Load, 24V dc Control 3RF2020-1AA04

Siemens 3RF2020-1AA04 solid state relay is engineered for high reliability in automation and control applications, supporting a maximum load current of 20 A and load voltage up to 460 V. It is designed for DIN rail mounting, making it suitable for compact control panels in industrial settings.

The relay utilizes zero-cross switching technology, which reduces electrical noise and prolongs component life. Its robust thyristor output type provides efficient switching performance with minimal power loss.

Equipped with screw terminals, the device allows quick and secure electrical connections. The enclosure and construction offer an IP20 ingress protection rating, ensuring protection against solid objects greater than 12mm but not suitable for exposure to liquids.

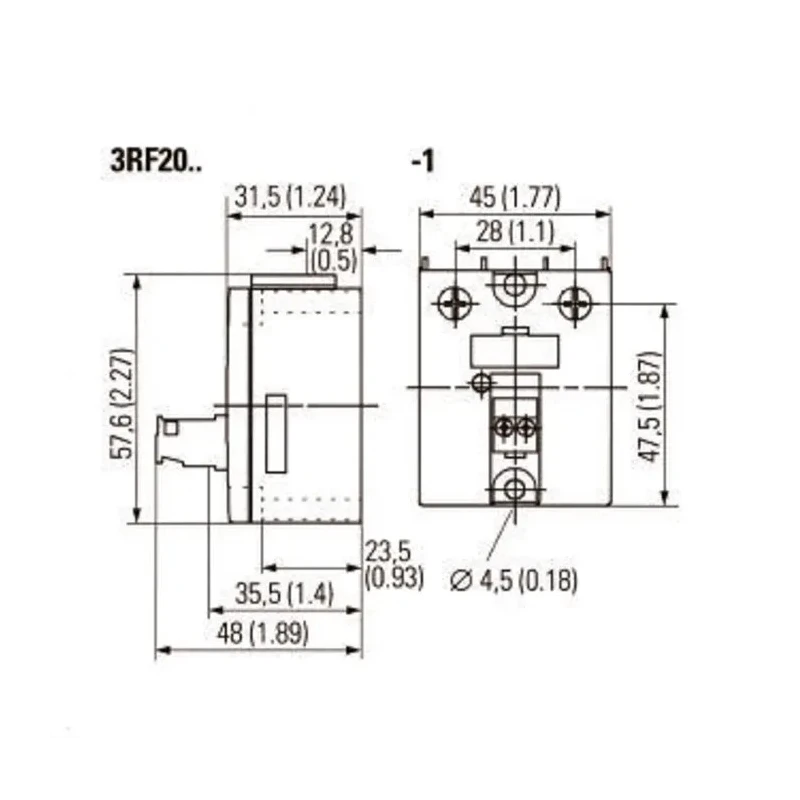

Operating temperature ranges from -25°C to 60°C make it adaptable for various industrial environments. Its compact form factor, with dimensions of 57.6mm in height, 48mm width, and 45mm length, facilitates space-saving installations.

This solid state relay complies with international standards including CSA, EAC, and UR, assuring safety and quality in performance. The off-state leakage current of 10mA contributes to energy efficiency and system reliability.

Manufactured in Germany, the relay supports industrial, automation, electrical control, and manufacturing sector applications where reliable switching and durable relay solutions are essential.

This relay features zero-cross switching for enhanced performance and noise reduction. Equipped with screw terminal connections for fast and secure wiring. Compact and space-saving design measuring 45mm wide and 57.6mm in height.

Operates efficiently within a temperature range of -25°C to 60°C for versatile use cases. Thyristor output type ensures robust switching suitable for automation and control systems. Offers an off-state leakage current of only 10mA, conserving energy when inactive.

IP20 rated protection level safeguards the device in controlled industrial environments. Designed and manufactured to meet CSA, EAC, and UR standards. Discover more quality electrical components and Solid State Relays to enhance your industrial automation systems at EnvMart.
