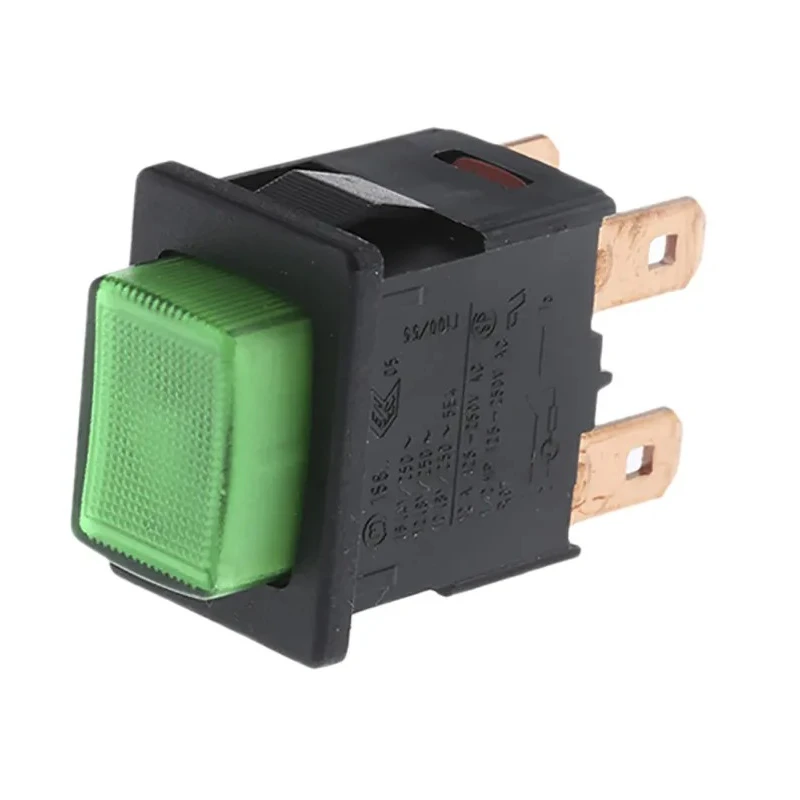

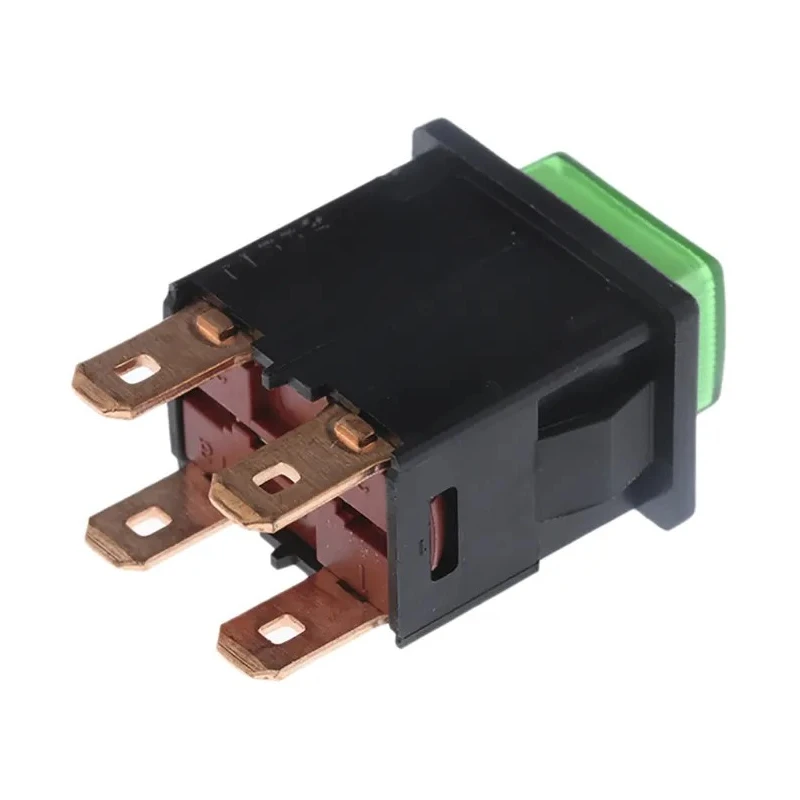

Marquardt Illuminated Push Button Switch, Panel Mount, Green, Rectangular, DPDT, IP67, 230V 16A 1687.1104
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Marquardt |
| Body Material | Fibreglass Reinforced Polyamide |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS, UL, ENEC 05, CSA |
| Push Button Actuation | Direct |
| Push Button Material | Polycarbonate |
| Push Button Colour | Green |
| Push Button Style | Rectangular |
| Illumination Voltage | 230V |
| UL 94 flammability (actuator | V-0, socket: V-1, housing: V-2) |
| Marquardt Illuminated Push Button Switch, Panel, DPST, IP40Brand | Marquardt |
Key Features
- Suitable for Class II appliances and panel mounting installations.
- Illuminated with 230V neon actuator for clear indication.
- Rectangular green push button made of polycarbonate for durability.
- Rated for high switching capacity up to 16A with silver contacts.
- IP67 protection ensures resistance against dust and water exposure.
- Operates within -20°C to 120°C temperature range.
- Features 4.8mm Faston/Quick Connect tab terminals for quick wiring.
- Constructed with fibreglass reinforced polyamide body for mechanical robustness.
Product Description
Marquardt 1687.1104 illuminated push button switch is designed for panel mounting applications requiring reliable and robust switching solutions with visual indication. The green rectangular push button is suitable for Class II appliances and industrial control panels.
It features a double pole double throw (DPDT) contact configuration with silver contacts rated for up to 16A current, providing high switching capabilities. Illumination is provided via a 230V neon actuator that enhances visibility in various operating environments.
The push button body is made of fibreglass reinforced polyamide, ensuring strong mechanical performance and resistance to harsh conditions. The actuator is polycarbonate, combining durability with ergonomic design.
Its protection rating of IP67 guarantees dust-tight sealing and water ingress protection, making it suitable for industrial applications exposed to dust and moisture. The switch operates effectively across a temperature range of -20°C to 120°C.
Terminals are Faston/Quick Connect style tab type with a 4.8mm width, allowing straightforward and secure wiring connections in control circuitry. The switch holds approvals including RoHS compliance, UL, ENEC 05, and CSA standards, affirming its safety and quality credentials for industrial and electrical equipment use.
Suitable for industrial, electrical control panels, and automation systems. IP67 rated enclosure ensures durability in harsh environments. High current capacity and mechanical life provide long service duration. Illuminated push button allows easy status monitoring.
Compact rectangular design fits standard panel cutouts.
Experience quality and reliability with Marquardt push button switches, ideal for a wide range of industrial automation and control applications. Browse more Push Button Switches and related components at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Marquardt illuminated push button switch has a maximum current rating of 16A.
This switch has an IP67 rating, ensuring it is dust-tight and protected against water ingress.
It operates effectively within a temperature range of -20°C to 120°C.
This model features a double pole double throw (DPDT) contact configuration.
The body is made of fibreglass reinforced polyamide, while the push button actuator is made of polycarbonate.
Illumination is provided via a 230V neon actuator, enhancing visibility during operation.
It features Faston/Quick Connect tab type terminals with a width of 4.8mm for easy wiring connections.
The switch holds approvals including RoHS compliance, UL, ENEC 05, and CSA standards.
The push button has a rectangular design and is colored green.
Yes, it is designed specifically for panel mounting applications.
Being suitable for Class II appliances indicates that it can be used in applications where electrical safety is a priority, typically involving double insulation.
This push button switch is suitable for industrial applications exposed to dust and moisture, thanks to its IP67 rating.
