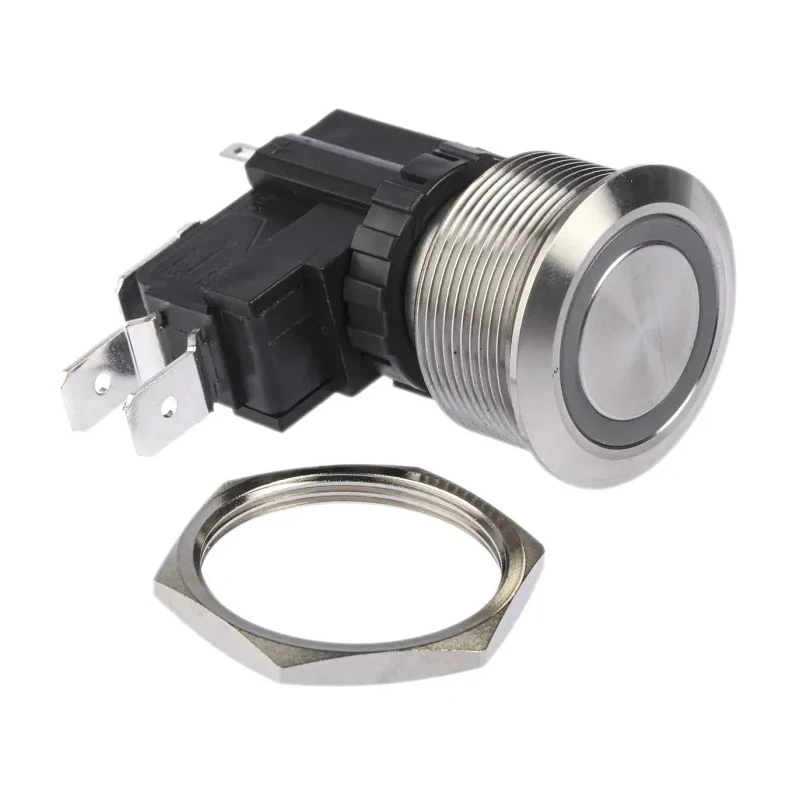

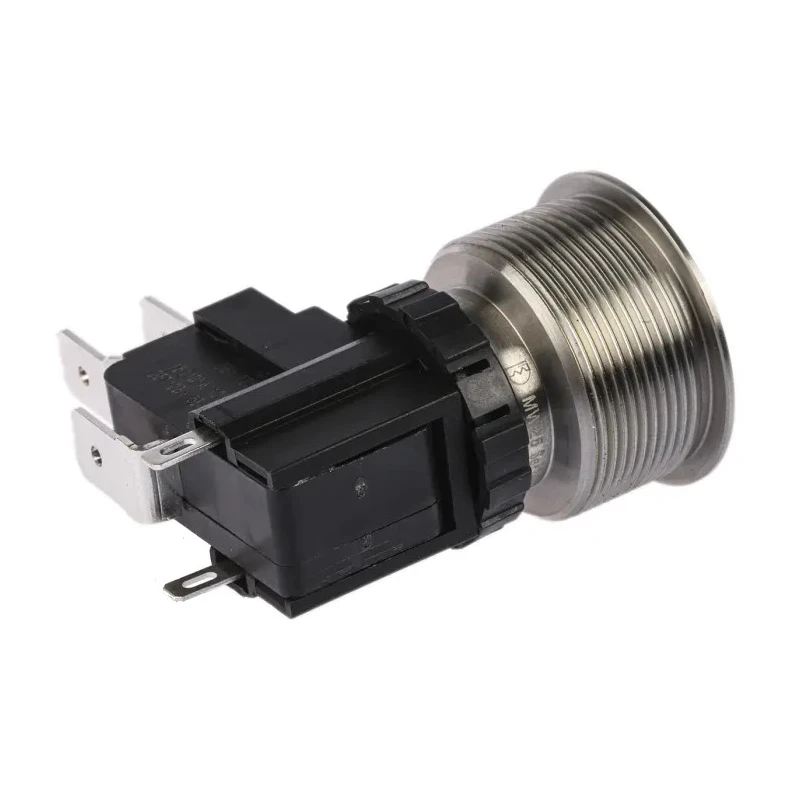

RS PRO Illuminated Push Button Switch Momentary Panel Mount SPDT White LED IP67 250 V ac 175-8138
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8138 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 25.2 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | cULus Recognized, EC15, EN15, UL 94 V-0, UL 94 V-2 |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Style | Flat |
| Switch Contact Current | 16, 26A |
| Contact AC Voltage | 250V ac |
Key Features
- Designed with momentary switch operation for reliable control.
- Panel mount type with a 25.2 mm cutout size for easy installation.
- Single Pole Double Throw (SPDT) contact configuration ensures versatile switching.
- Equipped with white LED illumination and flat actuator style for clear indication.
- Rated IP67, suitable for harsh environments requiring water and dust resistance.
- Supports AC voltage up to 250 V and switch contact currents of 16A and 26A.
- Quick connect terminal type simplifies wiring and maintenance.
- Operates within a temperature range of -25°C to 85°C for robust performance.
Product Description
RS PRO 175-8138 Illuminated Push Button Switch is a momentary panel mount switch designed with a 25.2 mm cutout size. It features a Single Pole Double Throw (SPDT) contact configuration and a white LED for illumination. Rated IP67, it provides excellent protection against dust and water ingress, making it suitable for demanding industrial environments.
The flat actuator allows easy operation while the quick connect terminals simplify installation and maintenance. This push button switch supports AC voltage up to 250 V and switch contact currents of 16 A and 26 A, ensuring capability for high current applications.
Temperature operation range from -25°C to 85°C ensures performance stability under varying environmental conditions. Certified under cULus Recognized, EC15, EN15, and UL standards, this component meets strict safety and quality standards required in industrial and commercial controls.
The switch’s micro-switch and bushing can be replaced individually, providing convenient maintenance options and extending product life. This product finds applications in industrial control instruments, medical devices, security systems, vehicle peripherals, audio-visual equipment, and energy storage systems.
Momentary switch operation for precise control input. Panel mount installation with 25.2 mm cutout for secure fitting. SPDT contact configuration provides flexible switching options. White LED illumination enhances visibility and status indication.
IP67 rating ensures protection against dust and water exposure. Supports high contact current ratings of 16 A and 26 A for demanding loads. Quick connect terminals enable rapid and safe wiring. Flat actuator style provides comfortable user interaction.
Wide operating temperature range from -25°C to 85°C ensures adaptability. Compliant with recognized safety and performance standards.
This RS PRO Push Button Switch 175-8138 is a reliable component engineered for industrial, laboratory, commercial control panel, and manufacturing applications where durability, safety, and clear indication are critical. Explore the extensive range of switches and components at EnvMart for comprehensive electrical and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This push button switch requires a panel cutout size of 25.2 mm for installation.
It has an IP67 rating, providing protection against dust and water ingress.
This model operates as a momentary switch, allowing for precise control input.
The switch supports contact currents of 16 A and 26 A.
It features quick connect terminals, simplifying wiring and maintenance.
This model is certified under cULus Recognized, EC15, EN15, and UL standards.
It has a Single Pole Double Throw (SPDT) contact configuration for versatile switching.
The minimum operating temperature for this model is -25°C.
The LED illumination is white, enhancing visibility and status indication.
This switch is suitable for industrial control instruments, medical devices, security systems, and more.
It features a flat actuator style for comfortable user interaction.
