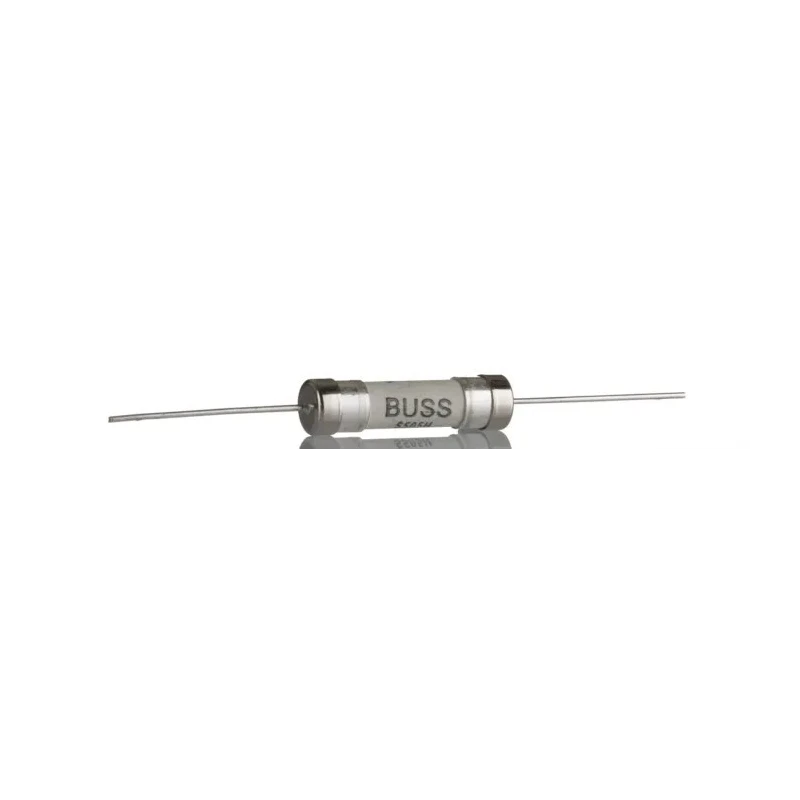

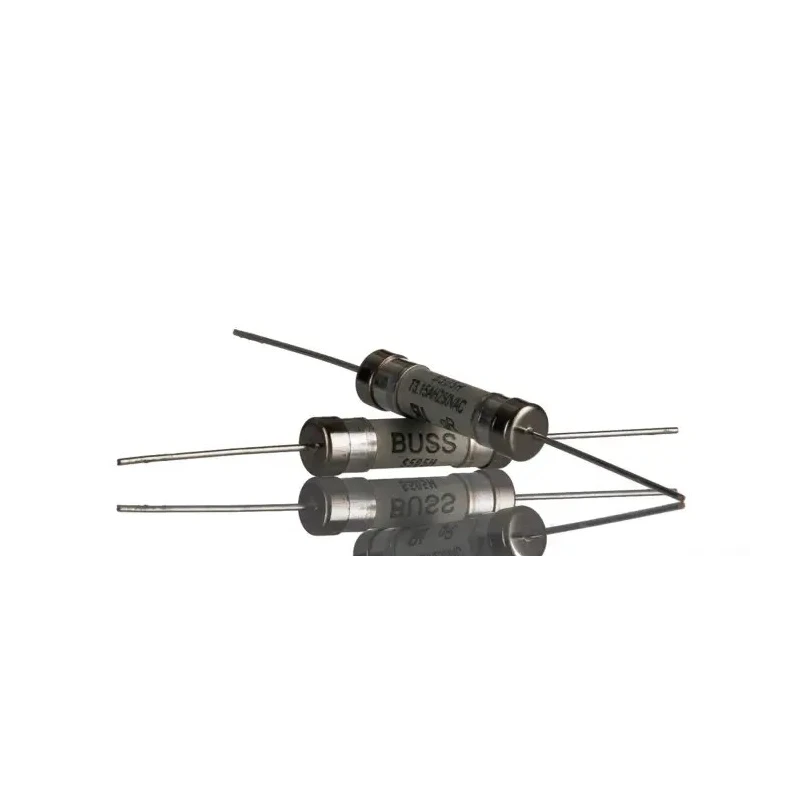

Eaton 3.15A T Ceramic Cartridge Fuse 5 x 20 mm S505H-V-3-15-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505H-V-3-15-R |
| Overall Length | 20mm |
| Current Rating | 3.15A |
| Series | S505H |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CCC, cURus, IEC 60127-2, PSE |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
Key Features
- Features a time-delay characteristic suitable for transient surges.
- Rated for 3.15A current and 250V AC voltage.
- Constructed with durable ceramic body material and plated end caps.
- Compact size of 5 x 20 mm ensures compatibility in various devices.
- Meets international safety standards including IEC 60127-2, CCC, cURus, and PSE.
- Operates effectively in temperature range of -40°C to +85°C.
- High breaking capacity to handle fault conditions safely.
- Applicable for power supplies, adapters, and a variety of consumer electronics.
Product Description
Eaton S505H-V-3-15-R Ceramic Cartridge Fuse is a high-quality 3.15A fuse designed for protecting electrical circuits in industrial, commercial, and consumer applications. Its 5 x 20 mm ceramic body provides mechanical strength and excellent heat resistance, suitable for demanding environments.
This fuse has a time-delay characteristic allowing it to tolerate harmless transient surges without unnecessary interruptions. It is rated for 250V AC and uses plated end caps for reliable conductivity and durability. The 20 mm overall length and 5 mm diameter make it compact for versatile installation.
The fuse complies with IEC 60127-2 standards and has multiple safety approvals such as CCC, cURus, and PSE, ensuring global conformity and safe operation. It can operate in temperatures ranging from -40°C up to +85°C, making it useful in harsh conditions.
Typical applications include powering and protecting adapters, desktops, notebooks, televisions, game systems, printers, air conditioning units, lighting ballasts, and battery chargers. The Eaton S505H series is known for its reliable fault interruption and surge protection while minimizing downtime.
Features a time-delay capability protecting devices against transient surges. High breaking capacity handles electrical faults effectively and safely. Compact 5 x 20 mm ceramic body built for durability and heat resistance.
Complies with IEC 60127-2 standard and holds CCC, cURus, and PSE certifications. Rated for 3.15A current and 250V AC voltage. Operates reliably in a broad temperature range of -40°C to +85°C. Suitable for use in power supplies, consumer electronics, and HVAC equipment.
Durable ceramic construction with plated end caps ensures long service life.
This Eaton ceramic Cartridge Fuse offers dependable circuit protection, aligning with rigorous safety and operational standards. Ideal for use in electrical, industrial, and HVAC applications where transient surge protection and reliable fault interruption are paramount.
Explore more circuit protection devices and fuses in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse is rated for a current of 3.15A.
It is rated for 250V AC voltage.
The fuse has a diameter of 5 mm and an overall length of 20 mm.
It is constructed with a ceramic body material and features plated end caps for conductivity.
This model operates effectively in a temperature range from -40°C to +85°C.
It features a time-delay characteristic suitable for tolerating transient surges.
It complies with several standards including IEC 60127-2, CCC, cURus, and PSE.
This fuse is applicable for use in power supplies, adapters, consumer electronics, and HVAC equipment.
It has a high breaking capacity designed to handle fault conditions safely.
Yes, it is designed for protecting electrical circuits in industrial, commercial, and consumer applications.
This model belongs to the Eaton S505H series of fuses.
This is a ceramic cartridge fuse, specifically designed for circuit protection.
