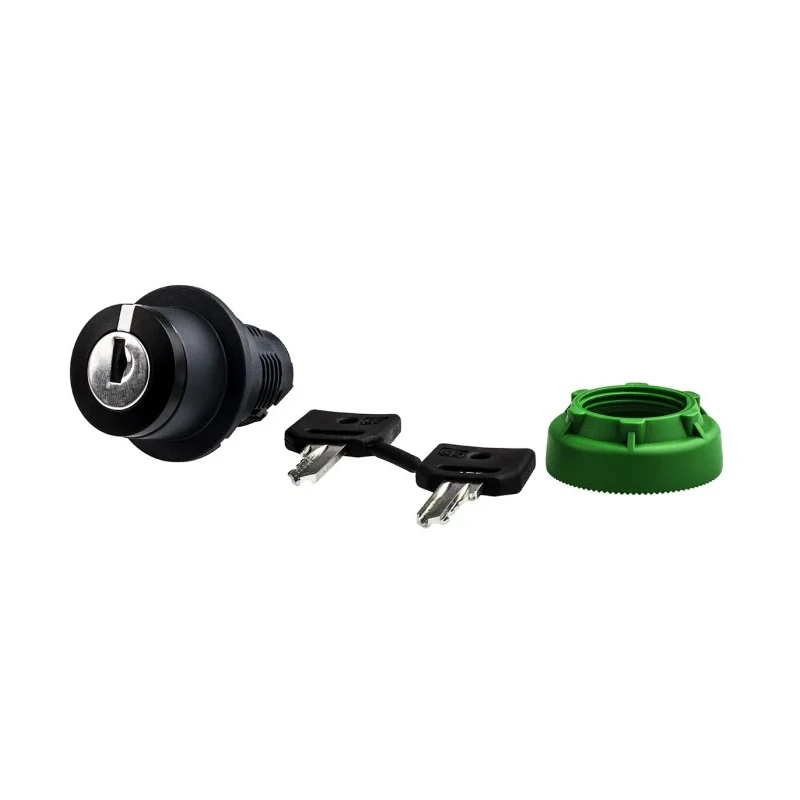

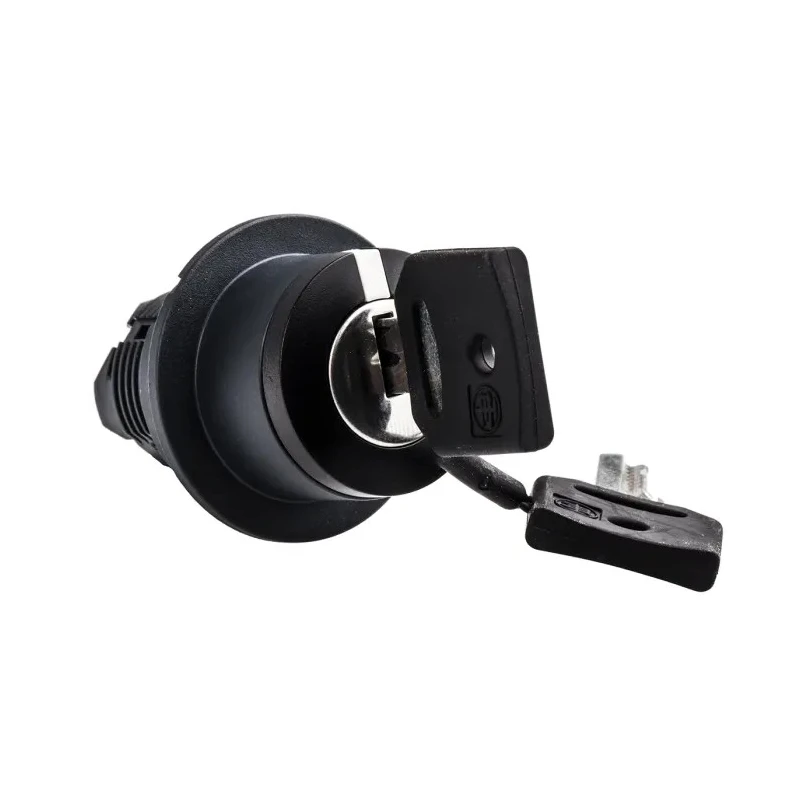

Schneider Electric Harmony XB5 3-position Latching Key Switch Head with 30 mm Cutout ZB5FG3

Schneider Electric ZB5FG3 is a high-performance Harmony XB5 3-position latching key switch head engineered for robust industrial and commercial electrical control systems. It features a 30 mm cutout diameter designed for flush panel mounting with a durable plastic bezel and a black type 455 key for reliable user operation.

The switch head operates with a latching mechanism, providing three distinct positions with an angle of throw of +/- 45 degrees and a mechanical life rated for up to 1,000,000 cycles, ensuring long-lasting performance. It has a built-in key withdrawal position at the center to enhance security and operational control.

Engineered to withstand demanding environments, the device carries an ingress protection rating of IP69K, IP67, and IP66, making it suitable for use in water, dust, and cleaning intensive conditions prevalent in chemical plants, marine applications, food processing, and energy distribution panels. It complies with international standards including IEC 60947 series, UL 508, CSA C22.2 No 14, DNV, BV, and JIS certifications, ensuring safety and reliability in diverse industrial applications.

Typical usage scenarios include machine manufacturing, infrastructure control systems, paper mills, and industrial food and beverage lines. This Key Switch Head is ideal for applications requiring a secure and flexible key operated control with three stable switch positions.

This key switch features a 30 mm cutout diameter suitable for flush mounting. Offers 3 stable positions with +/- 45 degrees angle of throw. Constructed with a durable plastic bezel and a black 455 type key. Equipped with a latching switch operation and a mechanical life of 1,000,000 cycles.

Rated with high ingress protection IP69K, IP67, and IP66 for harsh environments. Certified to multiple international standards including IEC, UL, CSA, DNV, and JIS. Designed for machine manufacturers, chemical, paper mill, marine, energy distribution, food and beverage, and car wash industries.

Includes 1 key with withdrawal position centered for secure operation. Explore Schneider Electric and Harmony XB5 switch heads for robust and compliant industrial switch solutions available at EnvMart.
