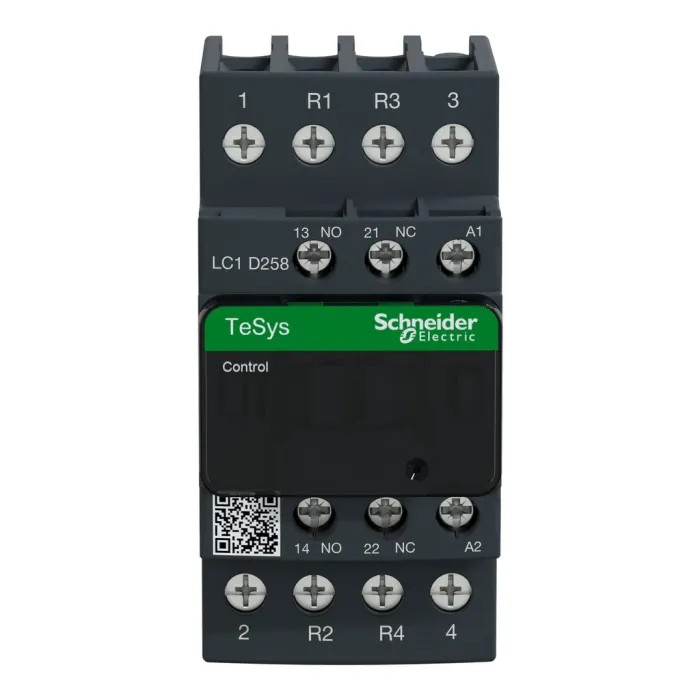

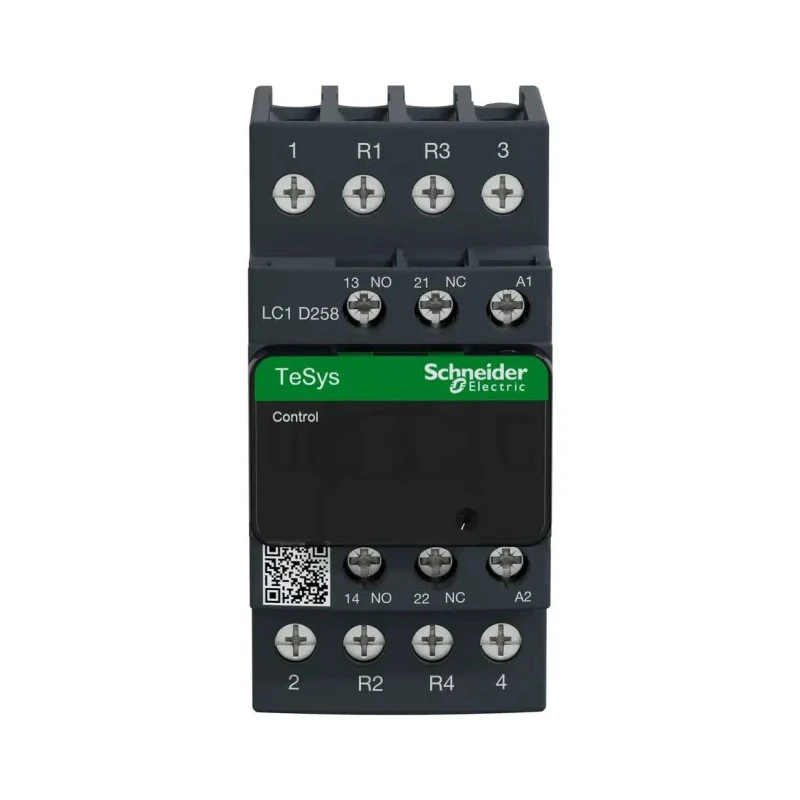

Schneider Electric LC1D Contactor, 110V AC Coil, 4-Pole, 40 A, 2.5 W Power, 2 NO/2 NC, 690V AC LC1D258F7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 105mm |
| Model | LC1D258F7 |
| Depth | 97mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, EAC, IEC, RoHS, UL, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 110V 50/60Hz AC coil with a power rating of 2.5 W per pole.
- Includes 2 normally open and 2 normally closed auxiliary contacts, with one NC contact being mirror certified.
- Compact design with 45 mm width, 105 mm length, and 97 mm depth for DIN rail or screw fixing.
- Reliable screw clamp terminals for secure load and auxiliary connections.
- Designed for high reliability and durability with an operational current of 40A and operating temperature range from -5°C to 60°C.
- Complies with international standards including CSA, EAC, IEC, RoHS, UL, CCC, and Marine certifications.
- Energy efficient with power loss of only 3.2W per pole and includes a protective cover for sensitive components.
- Suitable for motor starters, water treatment systems, and oil and gas industry applications.
Product Description
Schneider Electric LC1D258F7 is a high-performance 4-pole contactor with a 110V AC coil, designed for motor control and resistive load applications rated up to 40A at 690V AC. This model provides two normally open (NO) and two normally closed (NC) auxiliary contacts, with one NC contact mirror certified for enhanced reliability.
The contactor supports a coil power rating of 2.5 W per pole and features a compact form factor measuring 45 mm in width, 105 mm in length, and 97 mm in depth, allowing for flexible installation via DIN rail or screw mounting.
Connections are secured with screw clamp terminals ensuring robust and vibration-resistant electrical connections suitable for demanding industrial environments. Engineered for operational durability, this contactor supports a broad temperature range from -5°C to 60°C and can perform at operating rates up to 3600 cycles per hour.
It meets multiple international certifications including CSA, UL, IEC, CCC, EAC, and RoHS standards, affirming its quality and environmental compliance. Energy efficiency is a key feature, with low power loss of 3.2W per pole and a protective cover that maintains integrity against mechanical impacts.
Ideal for use in motor starters, water treatment facilities, and oil and gas industries, it offers a service life of approximately 1.4 million electrical cycles, ensuring dependable equipment control in industrial and commercial settings.
Features a 110V AC coil with 2 NO/2 NC auxiliary contacts. Supports motor control and resistive load applications up to 40A/690V AC. Compact design allows DIN rail or screw mounting with secure screw terminals. Complies with CSA, EAC, IEC, RoHS, UL, CCC, and Marine standards.
Energy efficient with 2.5W coil power rating and protective cover. Wide operating temperature range from -5°C to 60°C. Designed for high reliability with a long operational service life. Suitable for diverse industrial applications including motor starters and water treatment.
Explore Schneider Electric’s range for trusted automation and control solutions on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 110V AC.
This model supports a maximum operational current of 40A.
It has a power rating of 2.5W per pole.
The contactor measures 105 mm in length, 45 mm in width, and 97 mm in depth.
It includes two normally open (NO) and two normally closed (NC) auxiliary contacts.
The operating temperature range is from -5°C to 60°C.
It supports DIN rail or screw mounting.
The contact voltage rating is 690V AC.
It complies with CSA, EAC, IEC, RoHS, UL, CCC, and Marine standards.
This contactor is designed for motor control and resistive load applications.
It features screw clamp terminals for secure connections.
It is suitable for motor starters, water treatment systems, and applications in the oil and gas industry.
