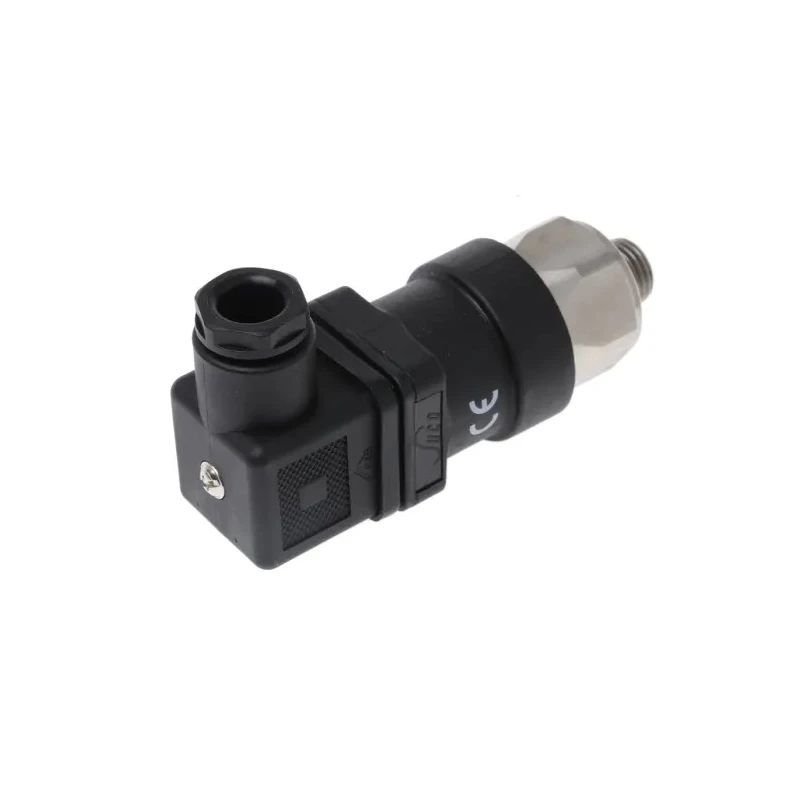

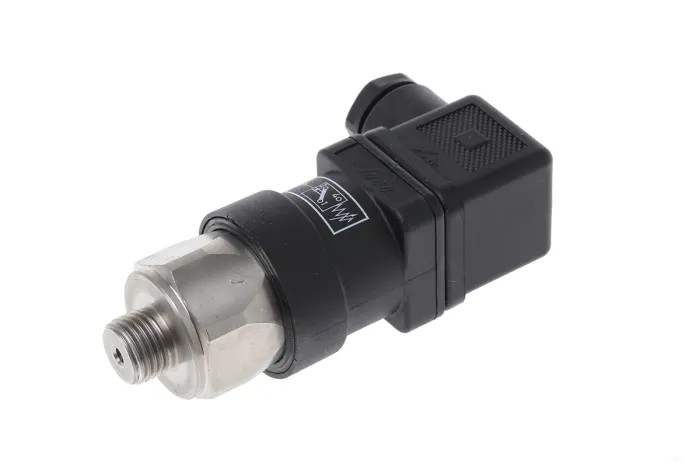

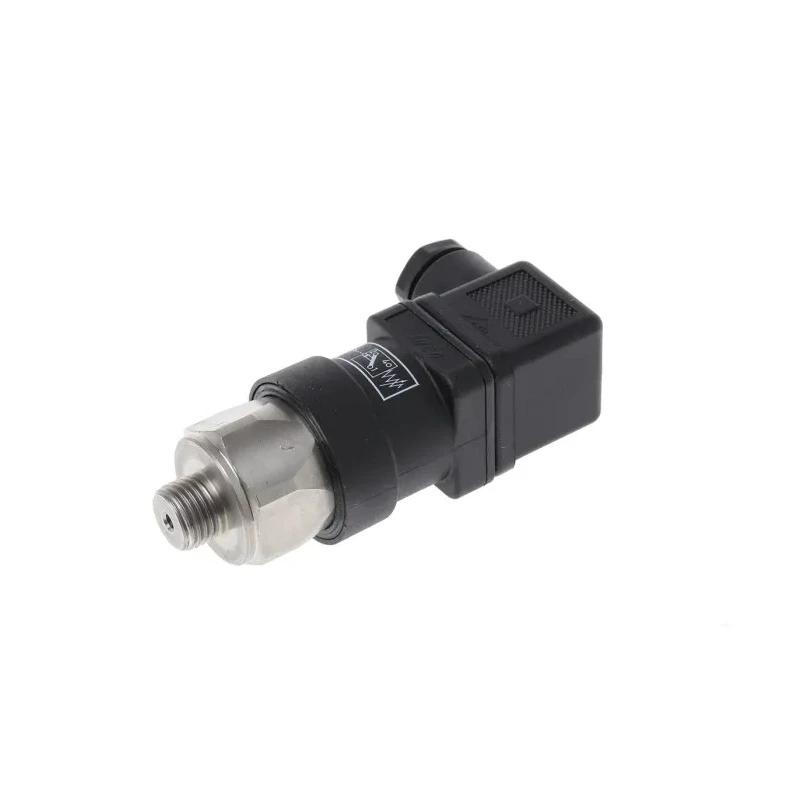

Suco Stainless Steel Industrial Pressure Switch SPCO 10 bar to 50 bar 25V 4A IP65 0184459031-SS
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 25V |
| Brand | Suco |
| Maximum Operating Pressure | 50 bar |
| Current | 4A |
| Model | 0184459031-SS |
| IP Rating | IP65 |
| Width | 34mm |
| Series | 184 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPCO |
| Port Size | 1/4 in BSP |
| Minimum Operating Temperature | -30°C |
| Protection rating | IP65 |
| Standards/Approvals | CE |
| Connection Thread Standard | BSP |
| Minimum Operating Pressure | 10bar |
| Suitable Medias | Oil, Gas, Air, Fluid |
Key Features
- Stainless steel body ensures durability and corrosion resistance.
- Adjustable pressure range from 10 bar to 50 bar suitable for various fluids.
- Rated for 25V voltage and 4A current with SPCO contact configuration.
- Protection rating of IP65 provides dust-tight and water-resistant operation.
- Operates in temperature range from -30°C to 100°C for versatile environments.
- Standard G1/4 BSP port size for easy pipe connection.
- Suitable for use with oil, gas, air, and fluid media.
- Equipped with DIN 43650 standard connector for secure electrical connection.
Product Description
Suco 0184459031-SS is a stainless steel bodied industrial pressure switch designed for precise monitoring and control of pressure in pneumatic and hydraulic systems. It features a diaphragm-operated mechanism with an adjustable pressure range from 10 bar to 50 bar, ensuring suitability for a broad range of industrial fluid media including oil, gas, air, and other fluids.
This pressure switch operates reliably at voltages up to 25V and currents up to 4A with SPCO contact configuration, providing versatile switching capabilities for control circuits. The device offers an IP65 protection rating, making it dust-tight and resistant to water jets, which is essential for harsh industrial environments.
The robust 303 stainless steel housing ensures durability and resistance to corrosion, supporting long service life. It includes a connection thread standard of BSP with a port size of 1/4 inch (G1/4), compatible with standard piping installations. The switch can operate across a wide temperature range of -30°C to 100°C, suitable for various climatic conditions.
Adjustments to the pressure setpoint are made by removing the electrical connection block and using a 2.5mm screwdriver, highlighting the importance of safety precautions during maintenance. The product is CE certified, manufactured in Germany, and fits into demanding industrial applications such as fluid power, pneumatic control, HVAC systems, manufacturing lines, and water treatment processes.
Stainless steel body with IP65 protection rating. Adjustable pressure from 10 to 50 bar for diverse applications. Rated 25V voltage and 4A current with SPCO contact configuration. Operates between -30°C and 100°C ambient temperature.
Standard G1/4 BSP port size ensures compatibility. Suitable for oil, gas, air, and fluid media. CE certified and manufactured in Germany. Requires removal of electrical block for safe pressure adjustment.
This pressure switch is ideal for precise control in industrial pneumatic, hydraulic, and fluid power systems, providing reliable performance under demanding conditions. Browse the Pressure Switch category on EnvMart for more precision industrial controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable pressure range of this model is from 10 bar to 50 bar.
This pressure switch has an IP65 protection rating, making it dust-tight and resistant to water jets.
It can operate at a maximum temperature of 100°C.
It is rated for a voltage of 25V and a current of 4A.
It is suitable for use with oil, gas, air, and other fluid media.
The switch has a port size of 1/4 inch (G1/4) BSP, compatible with standard piping installations.
This model is manufactured in Germany.
It features an SPCO contact configuration.
The minimum operating temperature is -30°C.
Adjustments to the pressure setpoint are made by removing the electrical connection block and using a 2.5mm screwdriver.
It is CE certified, indicating compliance with relevant European standards.
It is designed for use in pneumatic and hydraulic systems, fluid power applications, HVAC systems, and water treatment processes.
