Mersen 100A NH Fuse NH00 690V AC Full Range Fast Acting Ultra Fast Acting NH000UD Series NH00 Model D320163 NH00UD69V100PV

Mersen NH00 100A NH Fuse Model D320163 NH00UD69V100PV is a full range fast acting and ultra fast acting fuse designed for high rupture capacity electrical protection. Rated at 100 amperes and 690V AC, this fuse belongs to the NH000UD series and meets IEC standards for industrial applications.

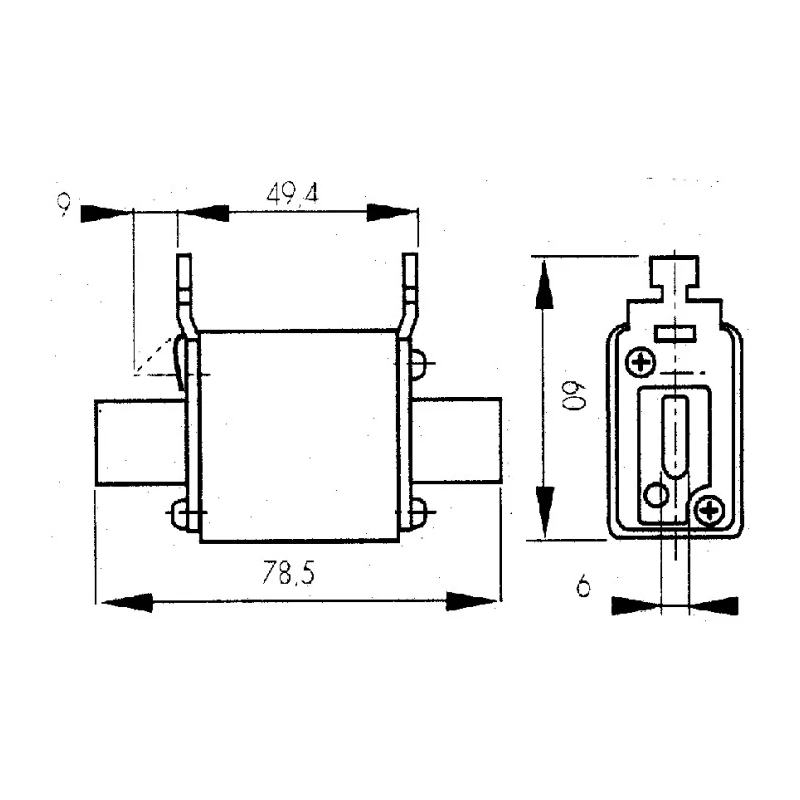

The fuse is constructed according to DIN 43620 size T00, offering reliable protection of power semi-conductors and other critical equipment. It features a NH plain blade tag type with a 6mm tag width, providing secure and stable electrical connections. The compact fuse dimensions include a fuse body length of 50mm, overall length of 79mm, height of 47.5mm, and width of 29.5mm, making it suitable for various fuse holders and electrical panels.

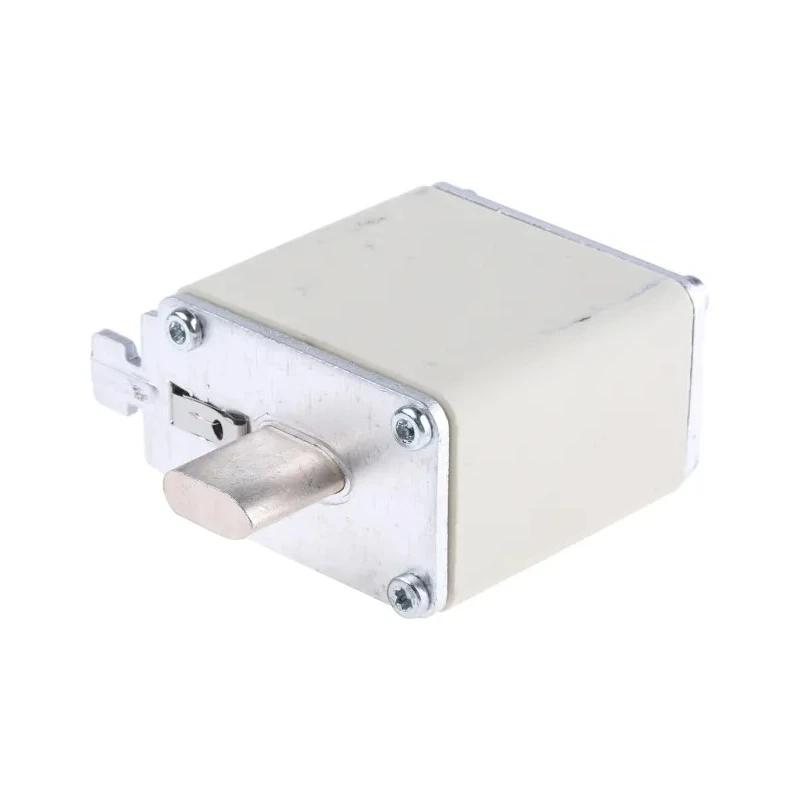

This fuse is designed with a Protistor® body equipped with a fusion striker capable of activating a micro-switch (micro-switch sold separately under stock no. 448-3241). Its high rupture capacity and full range fast acting characteristics ensure sensitive and reliable interruption of fault currents, protecting sensitive electronic devices and industrial systems.

Applications include industrial, electrical, automation, and power semiconductor protection in commercial and manufacturing environments. The product’s country of origin is Tunisia.

Provides very high breaking capacity for maximum safety. Fast and ultra fast acting characteristics protect sensitive components. Compact DIN 43620 T00 fuse size standard. Reliable NH plain blade tag with 6mm width for connections.

Protistor® fuse body with fusion striker mechanism. IEC standard compliant ensuring quality and performance. Suitable for use in aR application category circuits. Micro-switch activation feature enhances monitoring capabilities.
