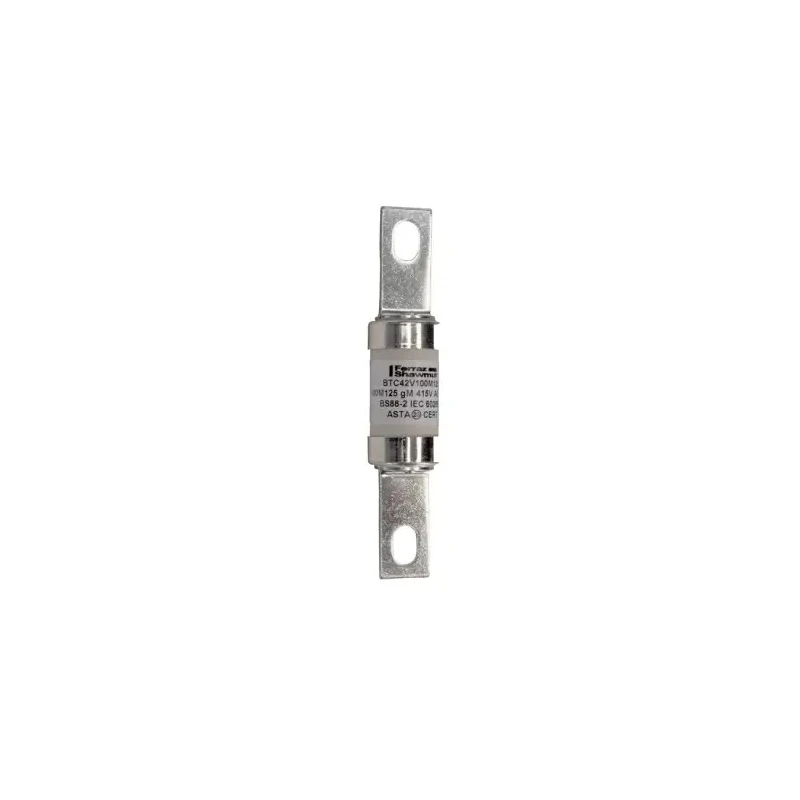

Mersen 100A Bolted Tag Fuse B1C 415V AC Tag Width 19.5mm, Fixing Centres 111 mm Q226311 / BTC42V100M125

Free Delivery in India | Lowest Global Shipping Charges

Mersen 100A Bolted Tag Fuse B1C 415V AC Tag Width 19.5mm, Fixing Centres 111 mm Q226311 / BTC42V100M125

Name: Mersen 100A Bolted Tag Fuse B1C 415V AC Tag Width 19.5mm, Fixing Centres 111 mm Q226311 / BTC42V100M125
Brand: Mersen
SKU: 303222
Price: 20.22 USD
Availability: InStock



Category Tag Fuse Brand Mersen Condition New

Specifications

Country of Origin	India
Voltage	415V ac
Diameter	26.9mm
Brand	Mersen
Height	57mm
Length	57mm
Model	Q226311 / BTC42V100M125
Width	26.9mm
Overall Length	137mm
Current Rating	100A
Series	Central Bolted Tag Fuse-links gM 415VAC/240VDC
Standards/Approvals	BS 88, IEC 60269, REACH, EN 60269-2, RoHS, CE
Fuse Size	B1C
Fixing Centres	111 mm
Tag Width	19.5mm
Tag Orientation	Centred
Application Category	gM

Key Features

This bolted tag fuse features a current rating of 100A for motor and general purpose protection.
The fuse size is B1C with a high-speed fuse characteristic for rapid fault interruption.
Designed with fixing centres measuring 111 mm and a tag width of 19.5 mm for secure installation.
Constructed with centred tag orientation and compact overall length of 137 mm for convenient mounting.
Product manufactured in India, suitable for industrial and commercial electrical applications.

Product Description

Mersen Q226311 / BTC42V100M125 bolted tag fuse B1C is a high-quality fuse designed for reliable electrical protection in industrial and commercial electrical installations. Rated at 100 amps and 415 volts AC, it offers robust current limitation ensuring safety in various circuit scenarios.

This tag fuse complies with international and industry standards, including BS 88, IEC 60269, REACH, EN 60269-2, RoHS, and CE, guaranteeing performance consistency and safety in demanding electrical environments.

Featuring a B1C fuse size and high-speed fuse characteristics, it is suitable for general purpose (gG) and motor protection (gM) applications. The fuse is designed with fixing centres measuring 111 mm and a tag width of 19.5 mm allowing for firm and easy installation either in fuse holders or directly onto busbars.

The compact design includes dimensions: overall length of 137 mm, tag length and height of 57 mm each, and a diameter of 26.9 mm, enabling space-efficient integration within electrical panels.

Manufactured in India, this bolted tag fuse series provides reliable overload and short-circuit protection with excellent current limitation to prevent damage to electrical equipment.

This bolted Tag Fuse features a current rating of 100A for motor and general purpose protection. The fuse size is B1C with a high-speed fuse characteristic for rapid fault interruption. Designed with fixing centres measuring 111 mm and a tag width of 19.5 mm for secure installation.

Rated voltage of 415V AC with compliance to BS 88, IEC 60269, REACH, EN 60269-2, RoHS, and CE standards. Constructed with centred tag orientation and compact overall length of 137 mm for convenient mounting. Product manufactured in India, suitable for industrial and commercial electrical applications.

This product is ideal for use in industrial, manufacturing, electrical distribution, and commercial settings requiring dependable fuse protection. Explore EnvMart's comprehensive range of circuit protection devices and electrical components for related products.
