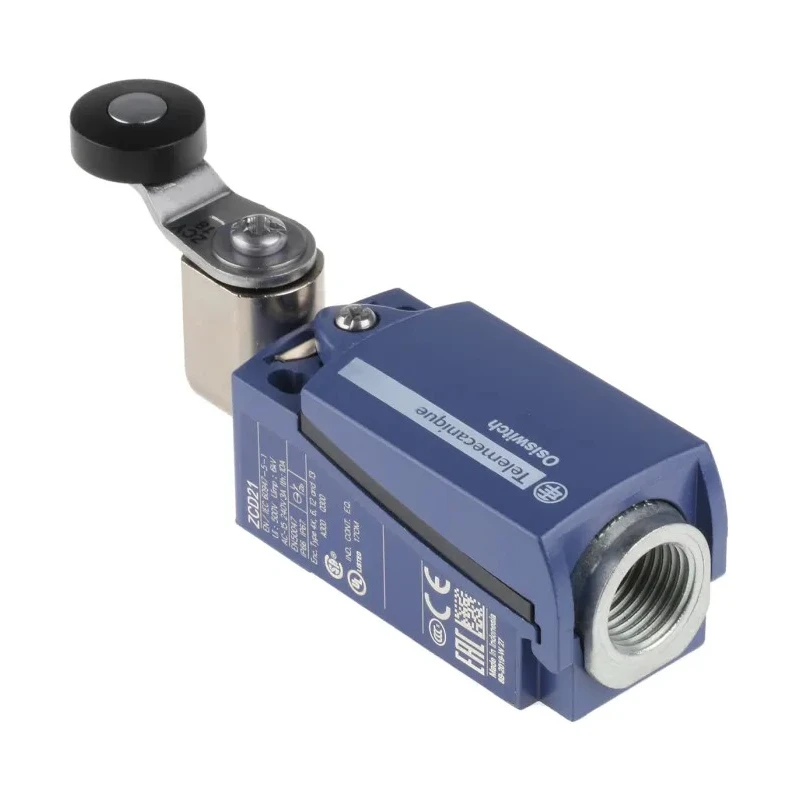

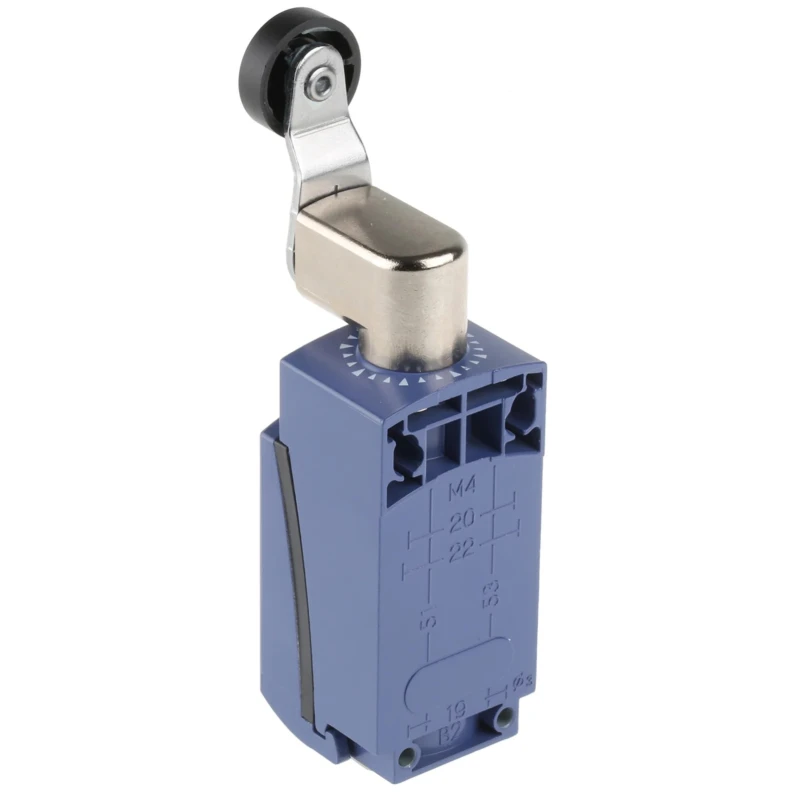

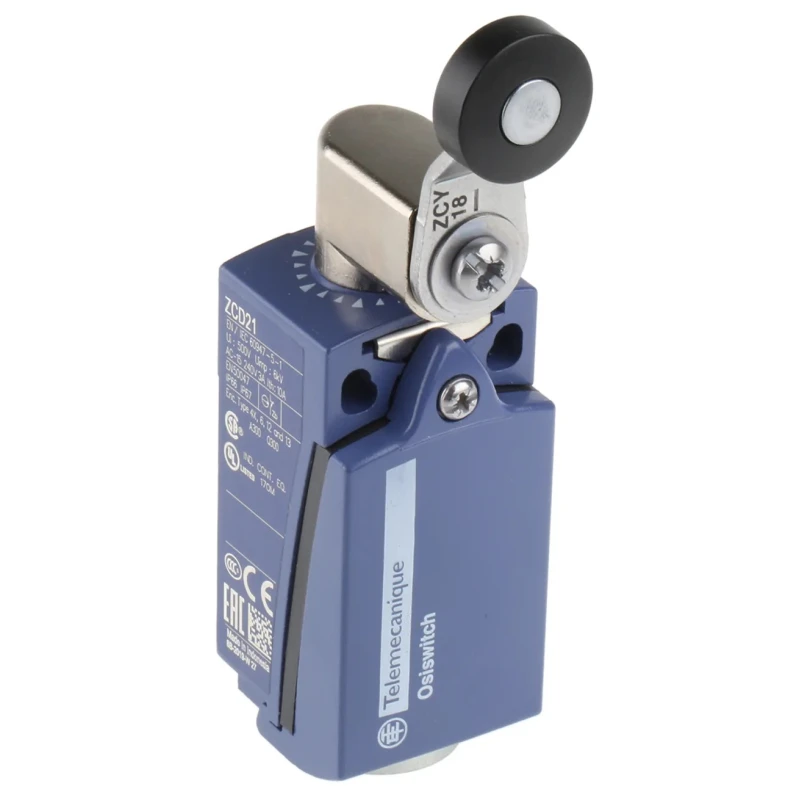

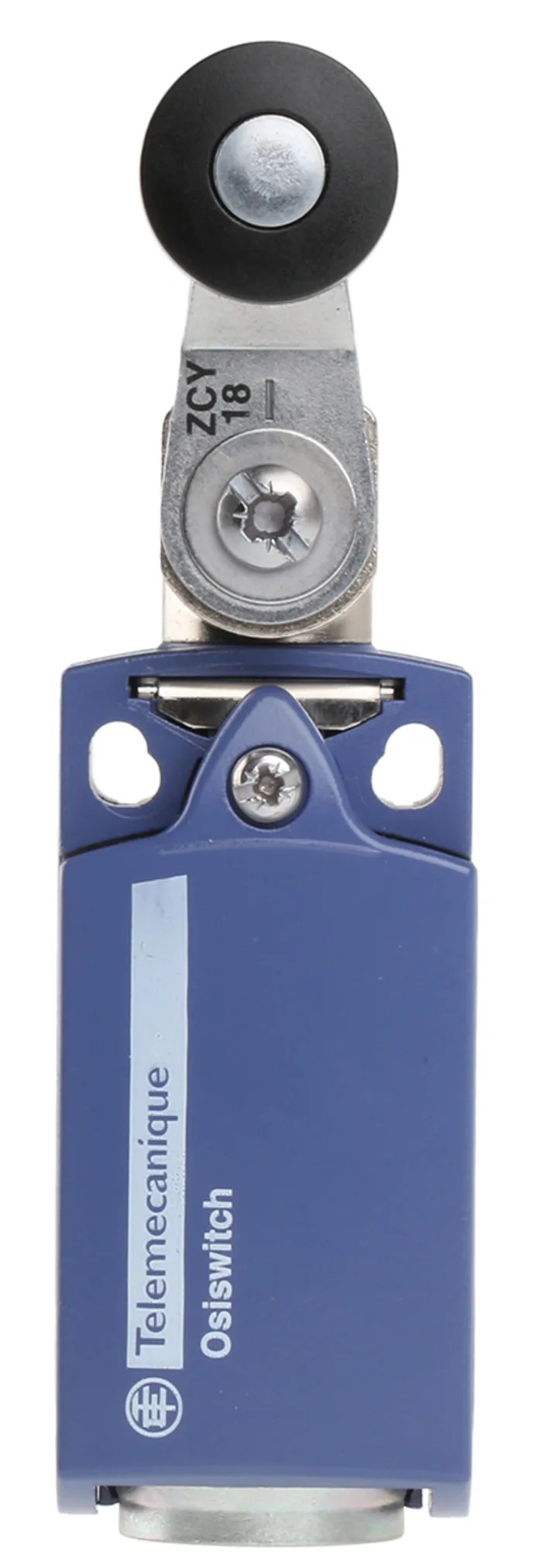

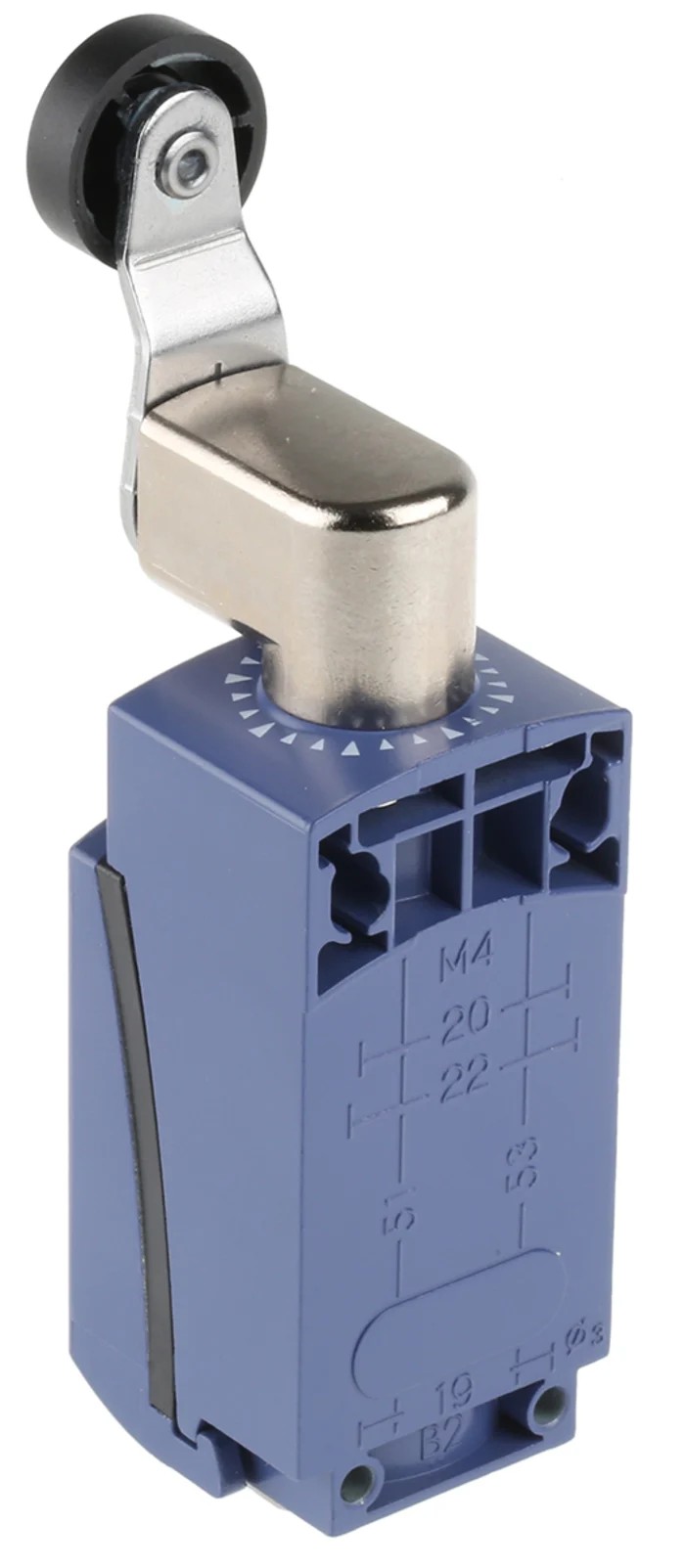

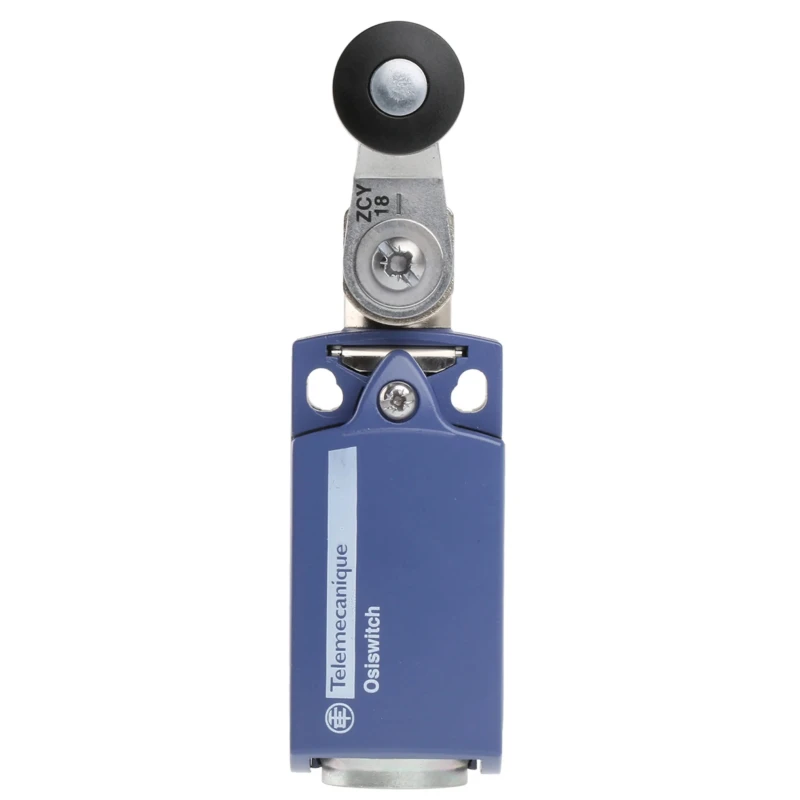

Telemecanique Sensors Roller Lever Limit Switch 1 NO/1 NC 240V AC 3A IP66 IP67 Zamak Housing XCKD2118P16
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKD2118P16 |
| Depth | 30mm |
| IP Rating | IP66, IP67 |
| Width | 31mm |
| Housing Material | Zamak |
| Series | XCKD |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | UL, RoHS, REACH, IEC, EN, CSA |
| Operating Force | 0.25Nm |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M16 |
Key Features
- Features 1 NO and 1 NC snap-action contact for reliable switching operation.
- Constructed with a durable zamak housing rated IP66 and IP67 for dust and water resistance.
- Capable of switching currents up to 3 amps at 240V AC and 250V DC voltages.
- Robust mechanical life of 10,000,000 cycles ensures extended operation reliability.
- Operating temperature range from -25°C to 70°C suits varied industrial environments.
- Includes M16 conduit entry with screw-clamp terminals for secure wiring.
- Compact dimensions with 30 mm depth, 65 mm length, and 31 mm width optimize space usage.
- Ideal for conveyor end-of-travel detection, machine tool limit sensing, and position feedback applications.
Product Description
Telemecanique Sensors XCKD2118P16 roller lever limit switch offers precise mechanical position detection for demanding industrial automation and control tasks. Featuring a roller lever actuator, this device converts mechanical motion into electrical signals using snap-action contacts, delivering swift and reliable switching performance.
The switch housing is made of zamak, providing dimensional stability and resistance to wear while maintaining a compact footprint. Its IP66 and IP67 ratings guarantee protection against dust ingress and water jets, suitable for harsh industrial environments.
Designed for electrical control applications, it supports switching currents of up to 3 A at 240 V AC and 250 V DC voltages. The rugged construction allows an impressive mechanical life of 10 million cycles, ensuring prolonged operational duty. The operating temperature range from -25°C to 70°C enables use in a wide range of ambient conditions.
Installation is facilitated by an M16 conduit entry and screw-clamp terminals, enabling secure and standardized cable routing. The compact dimensions (30 mm depth, 65 mm length, and 31 mm width) allow fitting into tight control panels or machinery.
Typical industrial uses include conveyor end-of-travel detection, machine tool limit sensing, safety interlock systems for access doors, and position feedback on material handling systems. This product adheres to recognized standards such as UL, IEC, EN, CSA, RoHS, and REACH, allowing its deployment in regulated environments.
Features 1 NO and 1 NC snap-action contact for reliable switching operation. Durable zamak housing with IP66 and IP67 protection ratings. Suitable for switching currents of 3A at 240V AC and 250V DC. Mechanical lifetime rated for 10 million cycles.
Operating temperature range from -25°C to 70°C. M16 conduit entry with screw-clamp terminals for secure wiring. Compact size with 30 mm depth, 65 mm length, and 31 mm width. Conforms to UL, RoHS, REACH, IEC, EN, and CSA standards.
Explore more from Telemecanique Sensors and Limit Switch solutions on EnvMart for robust industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC) snap-action contact, providing reliable switching operation.
It is capable of switching currents up to 3A at 240V AC and 250V DC, making it suitable for various electrical control applications.
The dimensions of this limit switch are 65 mm in length, 31 mm in width, and 30 mm in depth, allowing for compact installation in tight spaces.
This model operates effectively within a temperature range of -25°C to 70°C, accommodating various industrial environments.
The housing is constructed from zamak, which provides durability and resistance to wear in industrial settings.
It has a mechanical life rated for 10 million cycles, ensuring prolonged operational reliability in demanding applications.
It includes an M16 conduit entry with screw-clamp terminals, facilitating secure and standardized cable routing during installation.
This unit conforms to several standards, including UL, RoHS, REACH, IEC, EN, and CSA, making it suitable for regulated environments.
It is ideal for applications such as conveyor end-of-travel detection, machine tool limit sensing, and position feedback in material handling systems.
This model utilizes a roller lever actuator, which converts mechanical motion into electrical signals for swift and reliable switching performance.
It has an IP66 and IP67 rating, providing protection against dust ingress and water jets, suitable for harsh industrial environments.
The operating force for this unit is 0.25 Nm, which is necessary for its mechanical operation.
