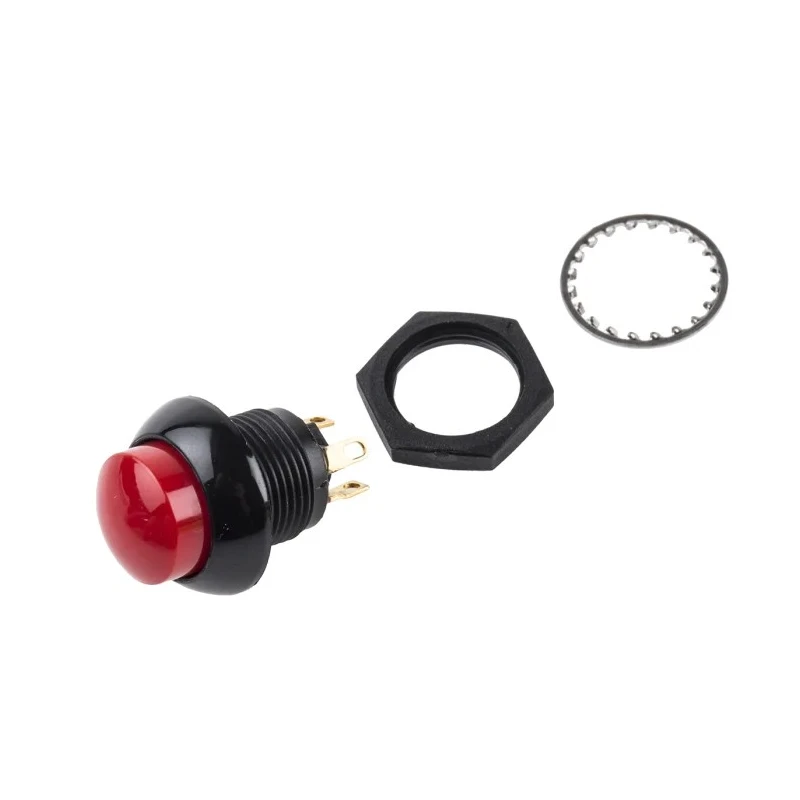

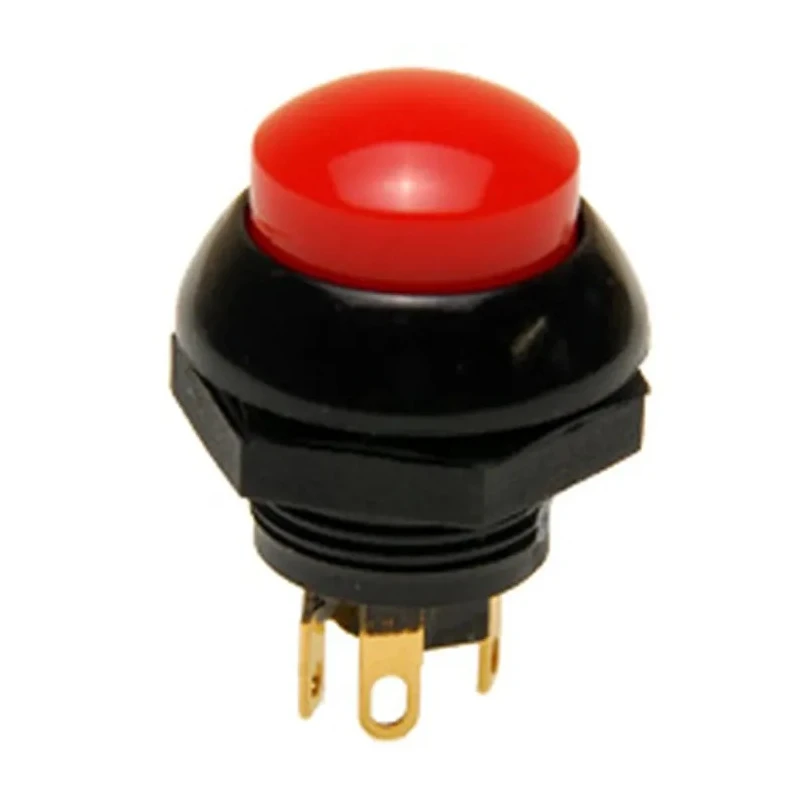

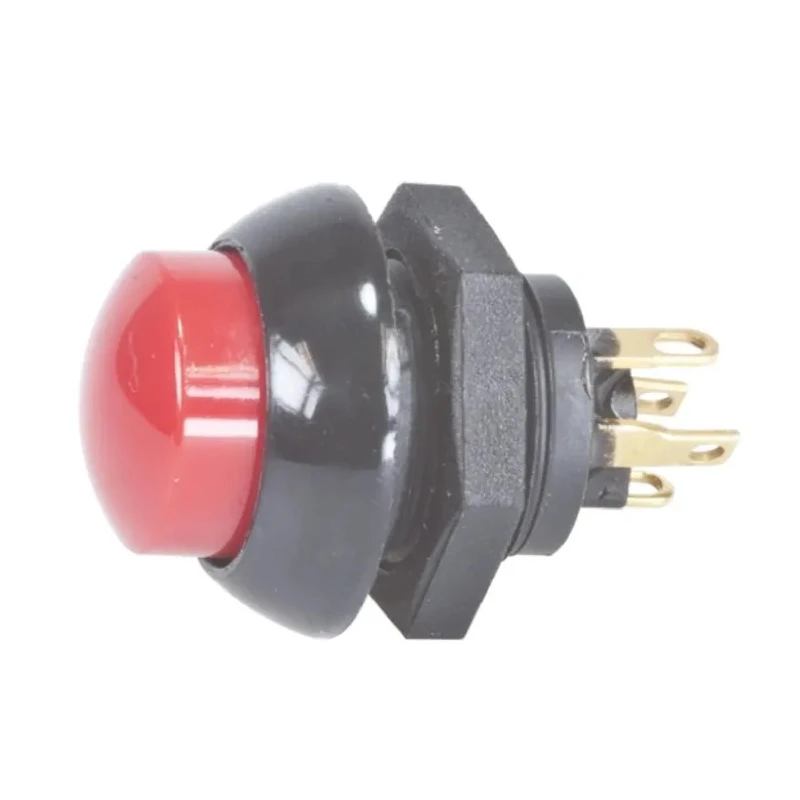

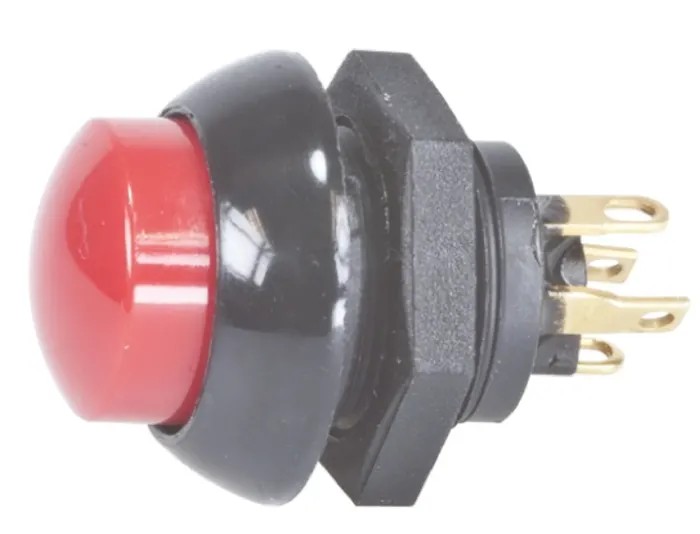

Otto P9 Series Push Button Switch Momentary Panel DPDT Red LED IP68 28V dc 115V ac P9-213121

Otto P9-213121 push button switch is a robust momentary panel switch featuring a DPDT contact configuration and integrated red LED illumination. Its black body and bezel are designed with a contoured dome style push button actuator, offering positive tactile feedback and a firm grip for reliable operation in industrial, electrical, and automation applications.

This switch requires a 0.5 inch cutout for panel mounting and is secured through a threaded 15/32-32 body hex nut mount, with solder-type terminals for electrical connections. Rated IP68, it ensures exceptional moistureproof and dust-tight performance, making it suitable for harsh and demanding environments.

The P9 series supports electrical specifications of 28V dc and 115V ac contact voltages, with a maximum current rating of 5 amps. It operates effectively across a wide temperature range from -55°C to 85°C, ensuring functionality in extreme temperature conditions. Engineered with low contact resistance and precision manufacturing, it guarantees reliable low-level switching and a long mechanical life span of one million operations alongside an electrical life expectancy of 25,000 cycles.

This switch is suited for use in control grips, computers, instrumentation, heavy equipment, and panel assemblies requiring a rugged, dependable push button switch with sealed construction against environmental challenges. It complies with RoHS standards and is manufactured in the United States.

Momentary switch operation with DPDT configuration. Red illuminated LED and button actuator. 0.5 inch panel cutout size for mounting. IP68 rated sealing for protection against moisture and dust. Contact voltages: 28V dc, 115V ac with 5A current rating.

Operating temperature range from -55°C to 85°C. Mechanical life of approximately one million operations. Electrical life of 25,000 cycles. Designed for use in industrial, laboratory, and heavy equipment applications.

For comprehensive Push Button Switch solutions, explore the Otto brand selection on EnvMart for reliable, high-quality electrical components designed to meet demanding industrial standards.
