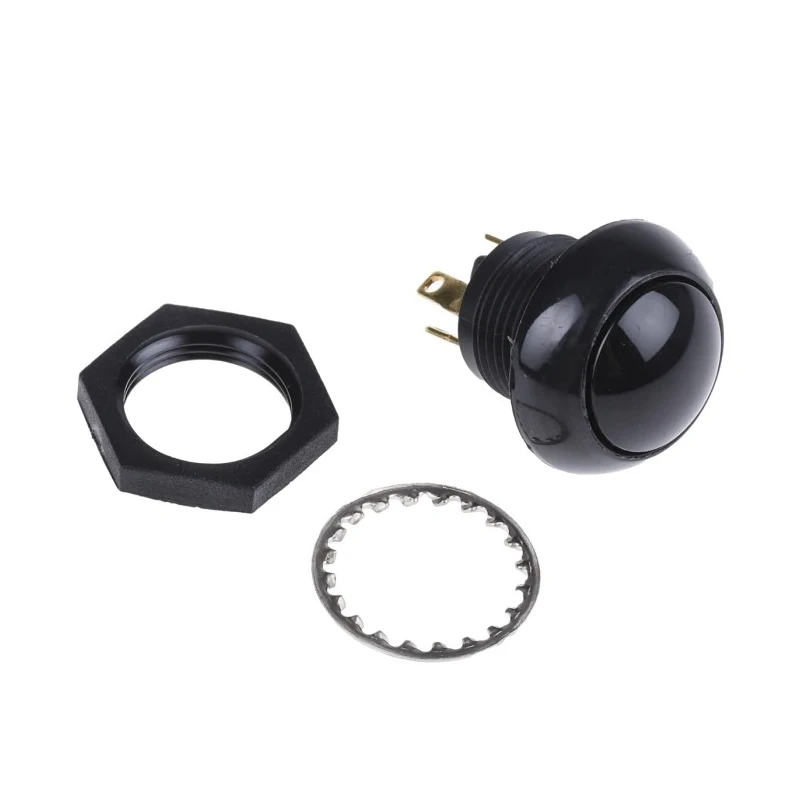

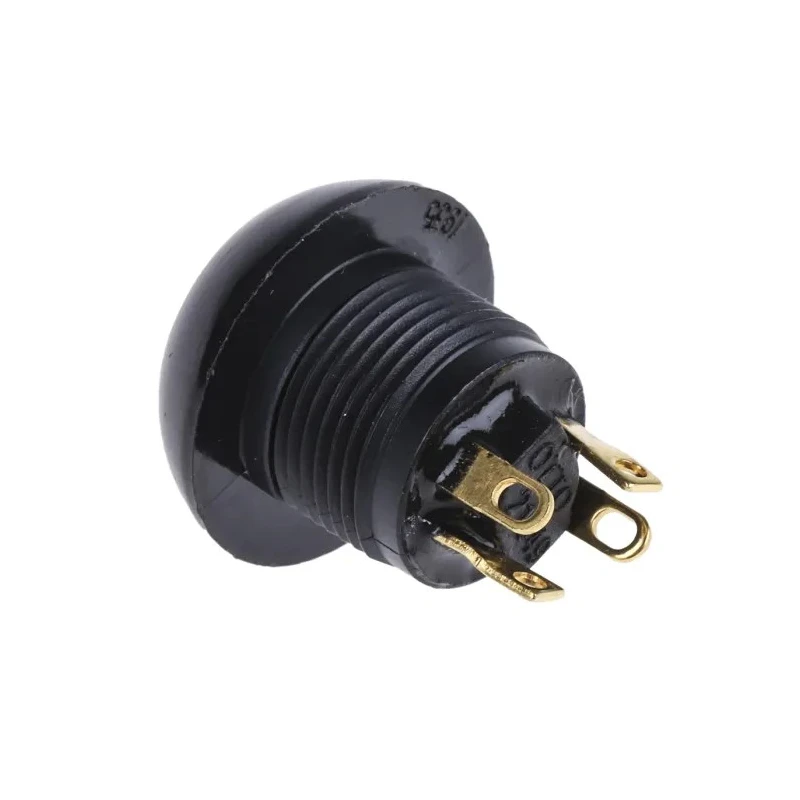

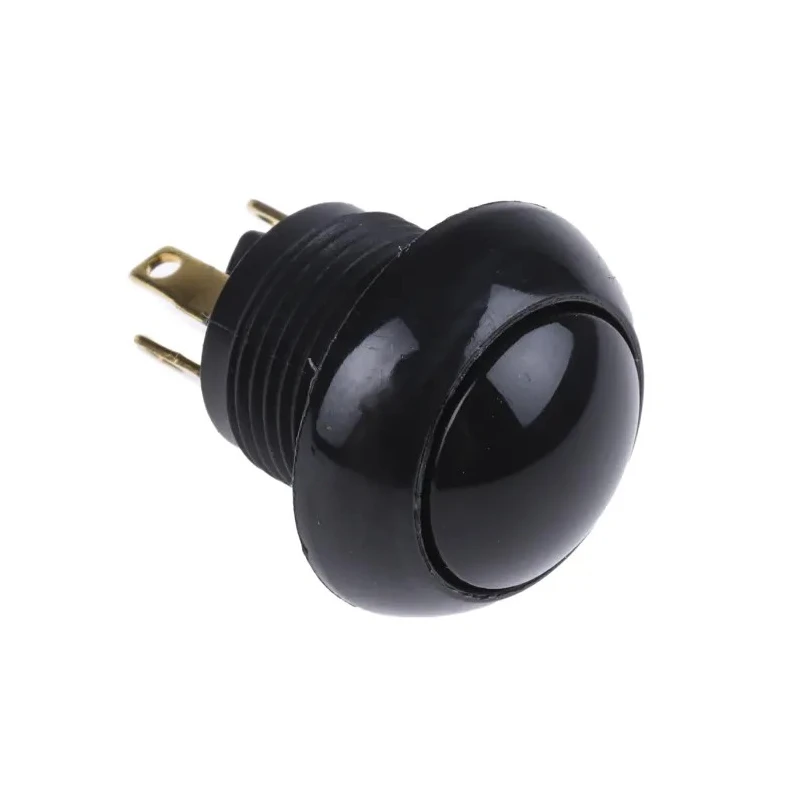

Otto P9 Series Push Button Switch Momentary DPDT Panel Mount Black LED IP68 28V dc 115V ac P9-113122

Name: Otto P9 Series Push Button Switch Momentary DPDT Panel Mount Black LED IP68 28V dc 115V ac P9-113122
Brand: Otto
SKU: 330799
Price: 18.62 USD
Availability: InStock



Category Push Button Switch Brand Otto Condition New

Specifications

Country of Origin	India
Brand	Otto
Model	P9-113122
IP Rating	IP68
Mount Type	Panel
Series	P9
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-55°C
Panel Cutout Size	0.5 x 0.5 in
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Black
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	115V ac

Key Features

The switch operates momentarily with a contoured dome style black button actuator.
It requires a 0.5 x 0.5 inch panel cutout for mounting.
The device offers an IP68 ingress protection rating ensuring moistureproof and dust tight performance.
The switch supports a contact current rating of 5A and functions reliably between -55°C to 85°C operating temperature.
Its solder terminal type and on-on switch configuration provide versatile electrical connections and control.
Designed for rugged industrial use, it offers approximately one million mechanical operations and 25,000 electrical operations at rated load.
This model is suitable for applications in control panels, heavy equipment, instruments, and industrial machinery.

Product Description

Otto P9-113122 is a momentary action push button switch from the Otto P9 Series, featuring a robust black body with a contoured dome style button actuator. It is designed for panel mounting using a 0.5 x 0.5 inch cutout and provides a double pole double throw (DPDT) contact configuration. This switch is illuminated with a black LED and rated for 28 V dc and 115 V ac, making it suitable for a wide range of electrical applications.

The P9 Series switches are built for durability, offering approximately one million mechanical cycles and 25,000 electrical cycles at full rated load of 5 amps resistive or 3 amps inductive. With an IP68 rating, this switch provides superior protection against moisture and dust ingress, ensuring reliable performance in harsh environmental conditions.

Operating temperature range from -55°C to 85°C and solder terminal type enhance its suitability for industrial, laboratory, manufacturing, heavy equipment, and HVAC control panel applications. The positive tactile feedback and on-on switch configuration allow for precision control in demanding settings.

Constructed with a black bezel and body, and a button actuator style, this switch is compact with a short panel depth making installation flexible. The product is RoHS compliant and adheres to UL and CSA approvals, ensuring safety and environmental standards compliance.

The switch has a momentary operation with DPDT contacts. IP68 rating ensures it is moistureproof and dust tight. Rated 28 V dc and 115 V ac contact voltage with 5A current capability. Operating temperature range from -55°C to 85°C enhances durability.

Solder terminal type facilitates secure electrical connections. Contoured dome style black button actuator provides tactile feedback. Compact panel mount design fits a 0.5 x 0.5 inch cutout size.

This Otto P9-113122 push button switch is ideal for industrial automation, control panels, instrumentation, heavy machinery, and other commercial electrical applications. Its rugged design, high reliability, and environmental resistance make it an excellent choice for demanding electrical switching tasks.
