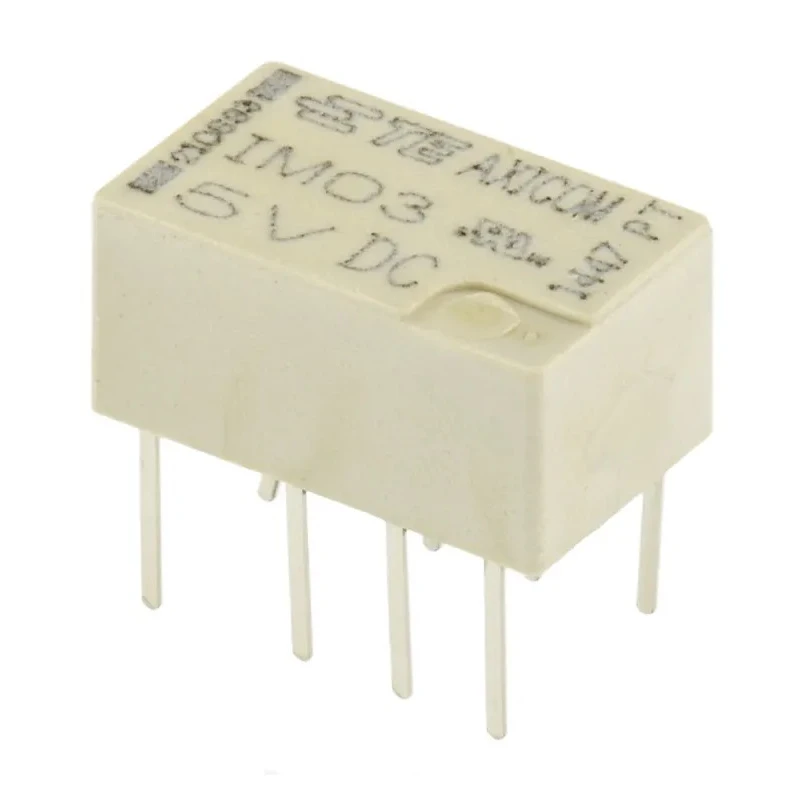

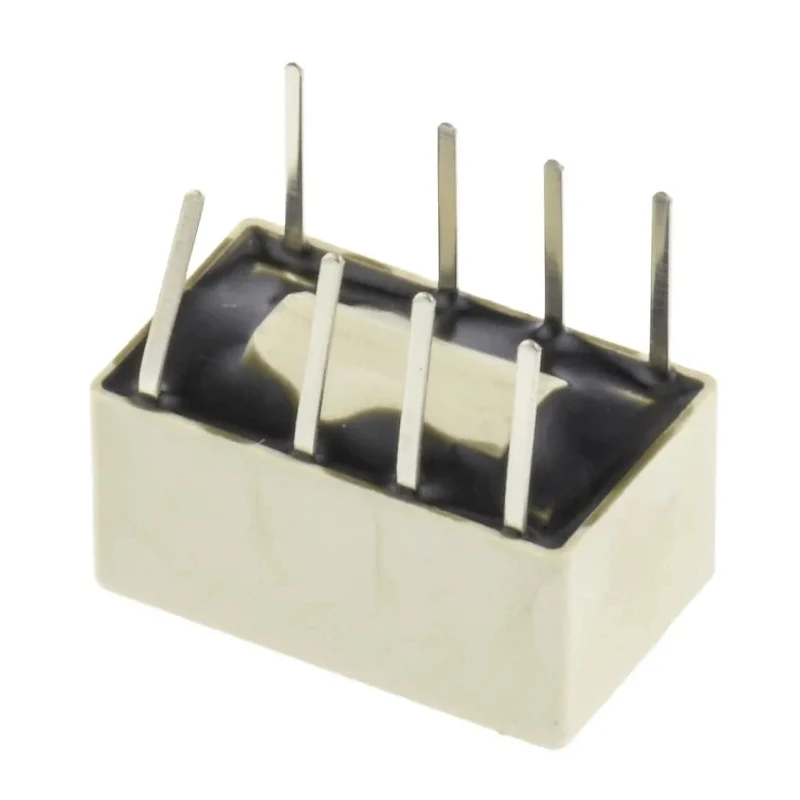

TE Connectivity PCB Mount Signal Relay, 5V DC Coil, DPDT Contact Configuration, 2A Switching Current IM03TS 1-1462037-8
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM03TS 1-1462037-8 |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 100mW |
| TE Connectivity PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | TE Connectivity |
| Aratas PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | Omron |
Key Features
- The slimline IM series provides a low profile of 5.65mm and occupies minimal PCB space for compact designs.
- Coil power consumption is low at 140mW, enhancing energy efficiency.
- Gold plated bifurcated contacts ensure excellent conductivity and corrosion resistance.
- The relay is hermetically sealed with IP67 rating for superior environmental protection.
- High mechanical shock resistance up to 300G functional and 500G survival enhances durability.
- Wide operating temperature range from -40°C to 85°C suits diverse applications.
- Meets RoHS standards and offers high surge capability conforming to Telcordia GR 1089, FCC Part 68, and ITU-T K20/21/45.
- Ideal for telecommunication, office equipment, medical, automotive, and test/measurement uses.
Product Description
TE Connectivity IM03TS 1-1462037-8 PCB Mount Signal Relay features a 5V DC coil voltage with DPDT contact configuration and 2A switching current capacity. This slimline relay has a low profile height of 5.65mm and measures 10mm length by 6mm width, optimized for space-efficient circuit designs.
Its coil power consumption is only 140mW, providing energy-efficient operation. The contacts are bifurcated and gold plated, ensuring stable conductivity and corrosion resistance. The relay is hermetically sealed (RT V) with an IP67 rating, offering protection against dust and moisture ingress.
Designed for industrial robustness, it withstands mechanical shock up to 300G during operation and 500G for survival, with insulation resistance greater than 10⁹ Ω at 500V DC. High surge capability meets stringent telecom and regulatory standards including Telcordia GR 1089, FCC Part 68, and ITU-T K20/21/45.
This relay operates reliably over a temperature range from -40°C to 85°C, suitable for harsh environments. It is mounted by soldering on PCB and features a coil resistance of 178Ω.
Applications include telecommunication equipment, optical network terminals, office and medical equipment, test and measurement devices, and automotive systems. The slim profile and compact footprint enable efficient PCB layout.
Low coil power consumption conserves energy in continuous use. Gold plated contacts provide reliable switching performance. Hermetic sealing ensures long-term durability in challenging conditions. High shock resistance extends operational lifespan.
Compliance with international standards guarantees quality and safety. Suitable for a broad range of industrial and commercial applications.
This product originates from Portugal and is supplied new, delivering a dependable, high-quality relay solution. Explore more Signal Relay options at EnvMart for electronics and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 2A.
This model operates with a coil voltage of 5V DC.

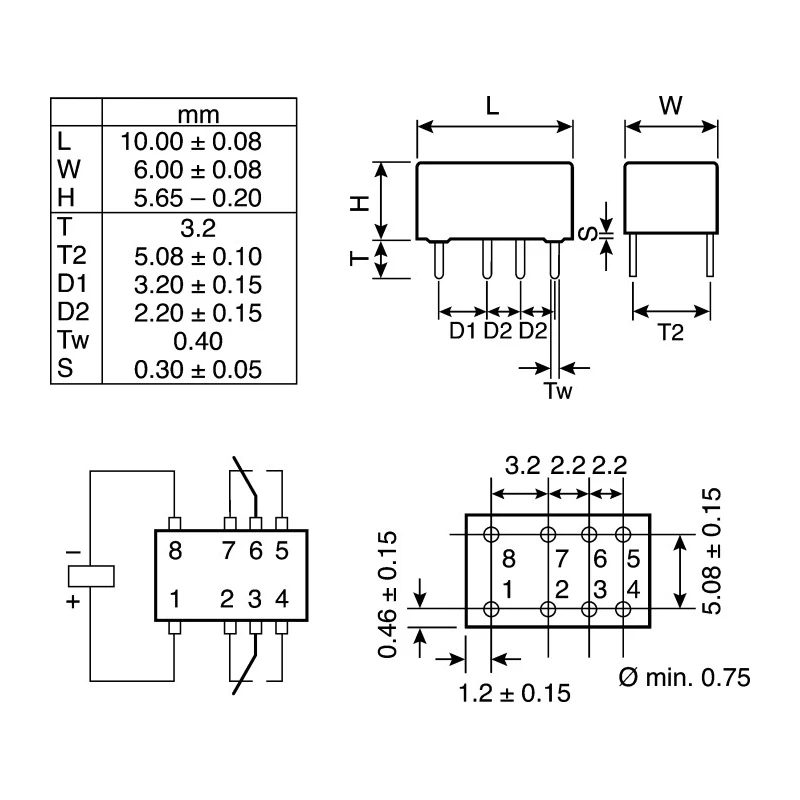

The relay has a height of 5.65mm, a length of 10mm, and a width of 6mm.
The coil power consumption is 140mW, which enhances energy efficiency.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay operates reliably over a temperature range from -40°C to 85°C.
This relay is mounted by soldering on a PCB.
The contacts are bifurcated and gold plated, ensuring stable conductivity and corrosion resistance.
The relay has an IP67 rating, providing protection against dust and moisture ingress.
It meets RoHS standards and has high surge capability conforming to Telcordia GR 1089, FCC Part 68, and ITU-T K20/21/45.
The insulation resistance is greater than 10⁹ Ω at 500V DC.
This relay originates from Portugal.
