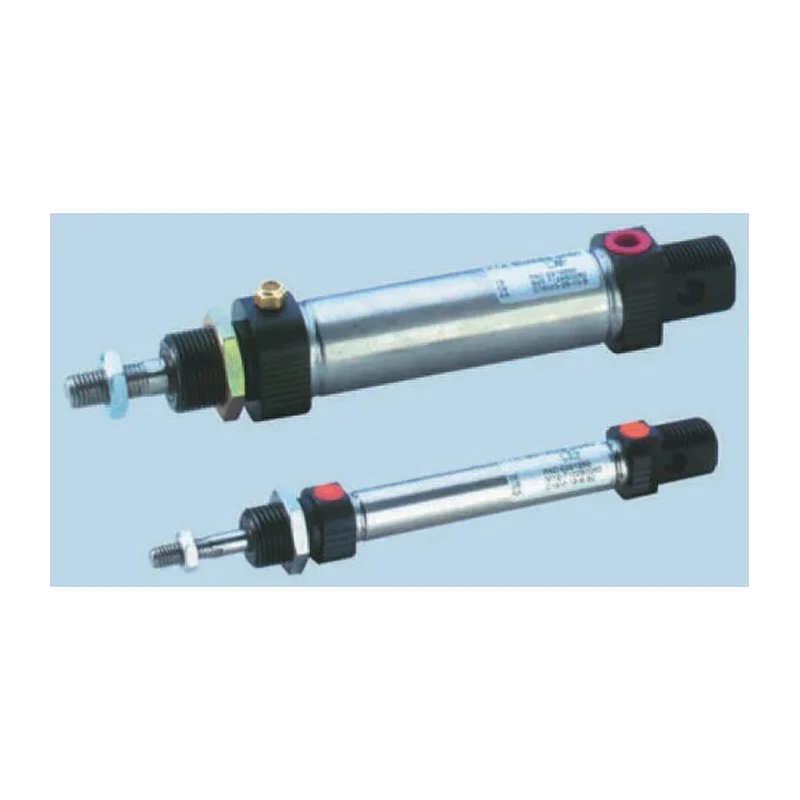

Parker 100 mm Pneumatic Piston Rod Cylinder, Stainless Steel Body, Anodised Aluminium End-Caps, Buffer P1A-S025DS-0100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Parker |
| Body Material | Stainless Steel, Anodised Aluminium End-Caps |
| Operating Temperature | -20°C to +80°C |
| Length | 232mm |
| Model | P1A-S025DS-0100 |
| Operating Pressure | 10 bar max |
| Mount Type | Neck, Clevis, Foot, Flange, Bracket |
| Series | P1A |
| Medium | Compressed air, filtered, lubricated or non-lubricated |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 100mm |
| Piston Rod | Stainless steel |
| Seals | Fluorocarbon/Nitrile rubber |
| Standards/Approvals | ISO 6432, ISO 8139 (swivel rod eye), ISO 4393 (stroke lengths), CETOP RP52P, ISO 8140 (clevis) |
| Cushioning Type | Buffer |
| End covers | Anodised aluminium |
| Barrel | Stainless steel |
| RS PRO 100 mm Pneumatic Roundline Cylinder - Mini ISO SeriesRS Stock No. | 304-3612Brand: RS PRO |
Key Features
- Conforms to ISO 6432 standards ensuring dimensional and performance consistency.
- Equipped with buffer cushioning to extend service life.
- Suitable for compressed air, filtered and optionally lubricated media.
- Operating pressure rated up to 10 bar max with a temperature range of -20°C to +80°C.
- Includes magnetic piston for position sensing applications as standard.
- Multiple mounting types available including neck, clevis, foot, flange, and bracket.
- Seals constructed from fluorocarbon and nitrile rubber for durability.
- Single and double acting versions available with spring return on single acting types.
Product Description
Parker P1A-S025DS-0100 Pneumatic Piston Rod Cylinder is engineered for precision and durability, featuring a 100 mm stroke length ideal for various industrial applications. Its compact size with 232 mm total length facilitates integration into automation and control systems.
The cylinder body is made from stainless steel, providing excellent corrosion resistance and mechanical strength, complemented by anodised aluminium end-caps for added protection and lightweight endurance. The design adheres to ISO 6432 and other relevant standards, ensuring interchangeability and reliability.
This pneumatic cylinder operates with compressed air media, either filtered and lubricated or non-lubricated, supporting a maximum operating pressure of 10 bar and a temperature range from -20°C to +80°C. End stroke buffer cushioning is integrated for noise reduction and prolonging component life.
The cylinder includes a magnetic piston as standard, enabling easy position sensing for automation feedback systems. It supports multiple mounting options including neck, clevis, foot, flange, and bracket mountings, providing versatility across mechanical setups.
Compact pneumatic piston rod cylinder with 100 mm stroke length and 232 mm total length. Stainless steel barrel and piston rod for high corrosion resistance. Anodised aluminium end-caps for lightweight robustness. Buffer cushioning for reduced wear and quieter operation.
Magnetic piston standard for sensor compatibility. Suitable for compressed air, filtered, lubricated or non-lubricated media. Operating pressure up to 10 bar max with temperature range -20°C to +80°C. Multiple mount types available: neck, clevis, foot, flange, bracket.
This pneumatic piston rod cylinder is suited for industrial automation, material handling, manufacturing lines, packaging machinery, and other pneumatic actuation applications. Parker's quality standards ensure dependable performance across heavy-duty and continuous operation environments.
Explore the wide range of pneumatic components in the EnvMart Pneumatic Piston Rod Cylinder category for dependable industrial pneumatic solutions.
