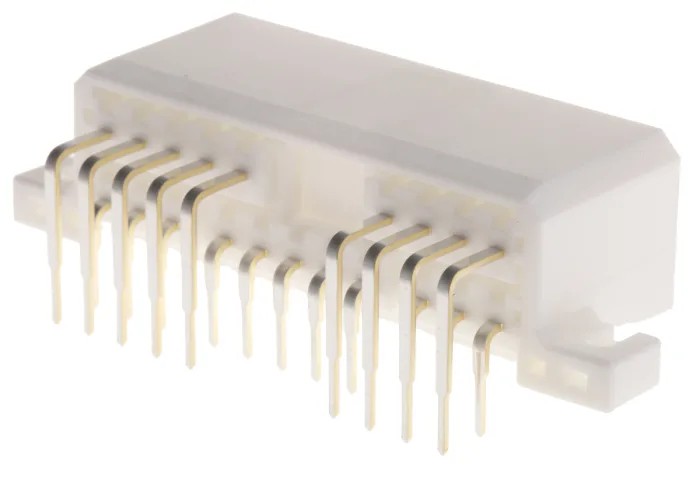

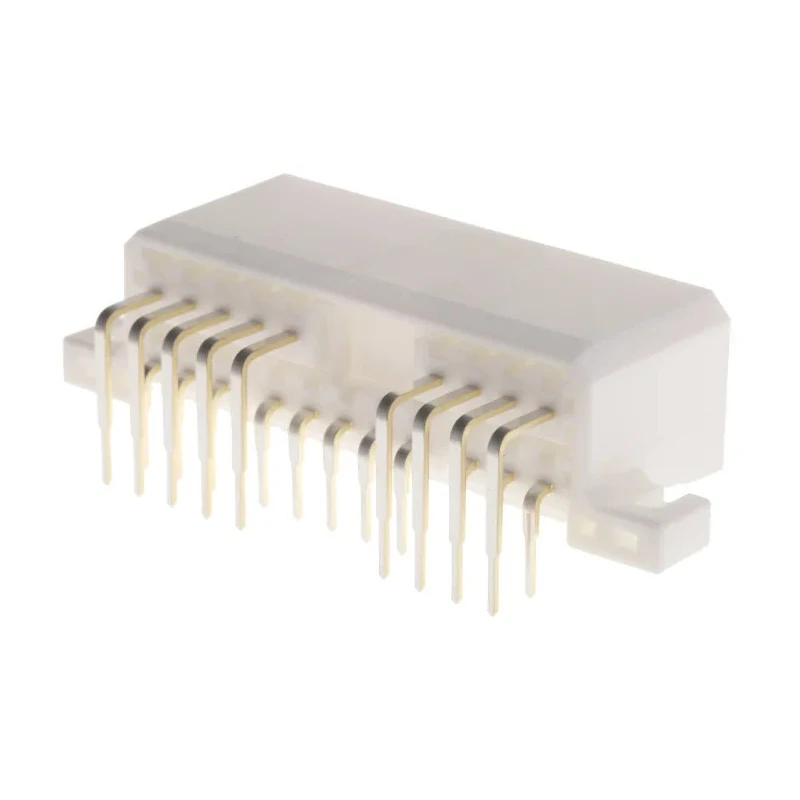

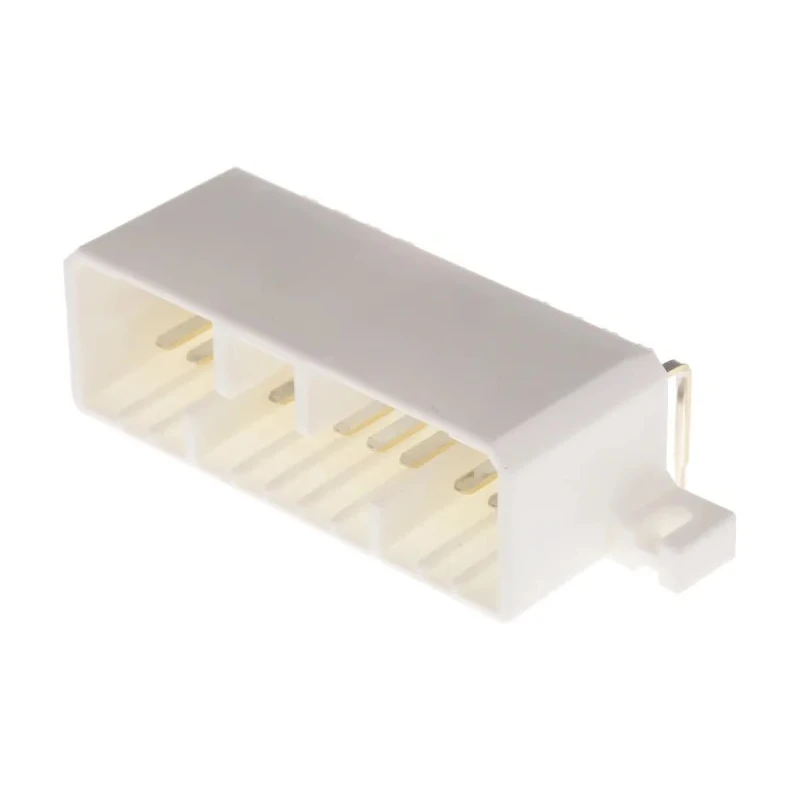

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 20 Way 2 Row Right Angle 175785-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 60.3mm |
| Model | 175785-1 |
| Width | 15.8mm |
| Mount Type | Panel |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Multilock Wire-to-Board Connector |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- The connector has 20 contacts arranged in 2 rows for efficient signal transfer.
- Features a right-angle orientation and panel mount type for convenient installation.
- Manufactured with Polybutylene Terephthalate housing material for durability.
- Includes an integral double locking mechanism ensuring secure contact retention.
- Protects contacts against damage caused by KOJIRI action during mating and unmating.
- Designed for automotive applications including powertrain, safety, convenience, and body systems.
- Housing lance design allows use of lanceless contacts to avoid tangling and deformation.
Product Description
TE Connectivity 175785-1 MULTILOCK 070 Female Connector Housing is a miniaturized automotive connector featuring a durable Polybutylene Terephthalate housing and a high-density 3.5 mm pitch. It is designed for reliable wire-to-board and wire-to-wire connections in demanding automotive environments.
This 20-contact connector is arranged in 2 rows and is panel mounted with a right-angle orientation for versatile assembly options. The housing incorporates a robust integral double lock system that secures contacts and prevents partial insertion, enhancing connection reliability and safety.
The Connector Housing protects contacts from KOJIRI action - a damaging rocking motion during connector mating and unmating - ensuring longevity and consistent electrical performance. The lance design enables lanceless contacts, eliminating contact tangling and deformation issues typically caused by lance damage.
Applications include automotive powertrain systems, safety and security devices, driver information systems, body and chassis circuitry, and various convenience modules. The compact form factor (60.3 mm length by 15.8 mm width) makes it suitable for space-constrained installations.
TE Connectivity MULTILOCK series connectors provide a high-density, secure I/O solution widely adopted in automotive industries and suitable for various signal transfer purposes beyond automotive.
The connector has 20 contacts arranged in 2 rows for efficient signal transfer. Features a right-angle orientation and panel mount type for convenient installation. Manufactured with Polybutylene Terephthalate housing material for durability.
Includes an integral double locking mechanism ensuring secure contact retention. Protects contacts against damage caused by KOJIRI action during mating and unmating. Designed for automotive applications including powertrain, safety, convenience, and body systems.
Housing lance design allows use of lanceless contacts to avoid tangling and deformation. Length of 60.3 mm and width of 15.8 mm for compact installation in automotive systems. Explore the TE Connectivity MULTILOCK series and find robust connectors that ensure reliable performance for automotive and industrial wiring solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing has a pitch of 3.5 mm, allowing for efficient signal transfer between contacts.
It features 20 contacts arranged in 2 rows, providing a high-density connection solution.
This connector has a right-angle orientation, which facilitates convenient installation in space-constrained environments.
The housing is manufactured from Polybutylene Terephthalate, which contributes to its durability in demanding applications.
This model is designed for panel mounting, making it suitable for various installation scenarios.
It includes an integral double locking mechanism that ensures secure contact retention and protects against KOJIRI action during mating and unmating.
It is designed for automotive applications, including powertrain, safety, convenience, and body systems.
The dimensions of the connector housing are 60.3 mm in length and 15.8 mm in width, making it compact for various installations.
This connector housing is female, allowing for compatibility with male connectors in wire-to-board or wire-to-wire applications.
The housing incorporates a lance design that allows the use of lanceless contacts, preventing tangling and deformation during use.
Yes, it is compatible with Multilock Wire-to-Board Connectors, allowing for versatile connectivity options within the MULTILOCK series.
The connector housing is manufactured in Japan, ensuring adherence to high manufacturing standards.
