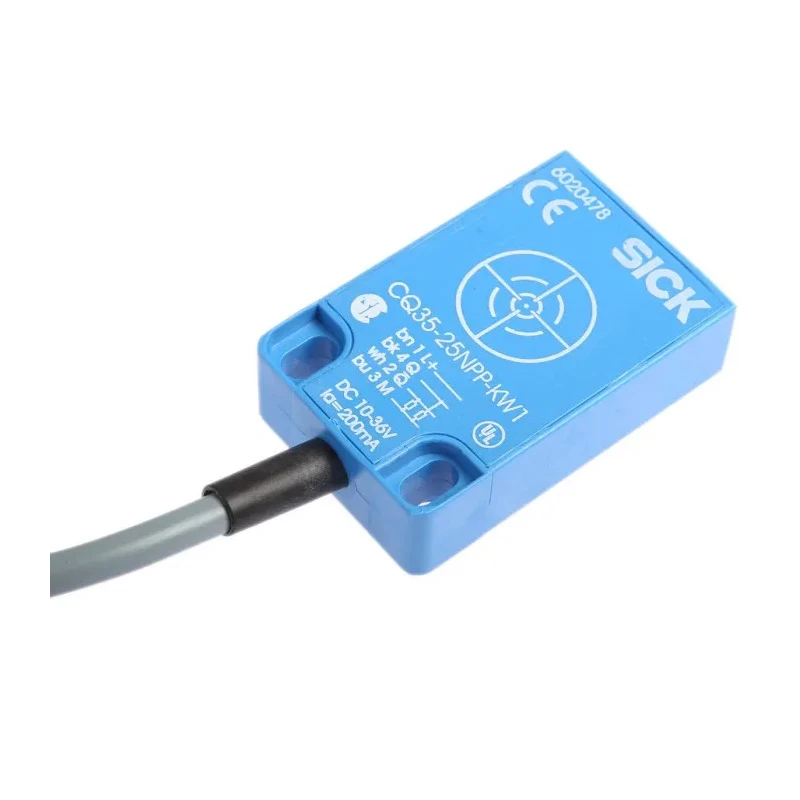

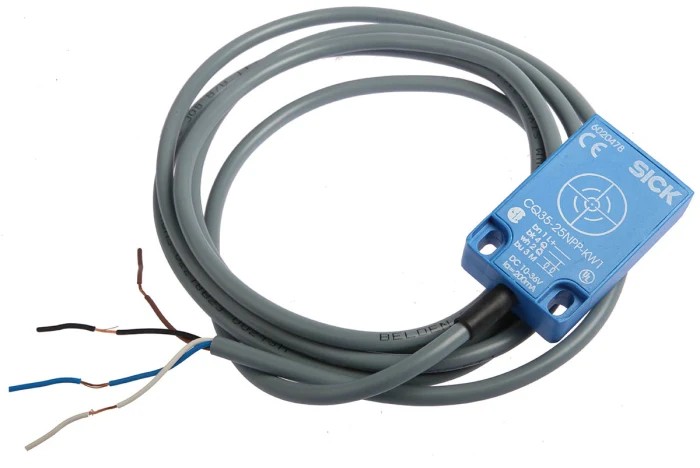

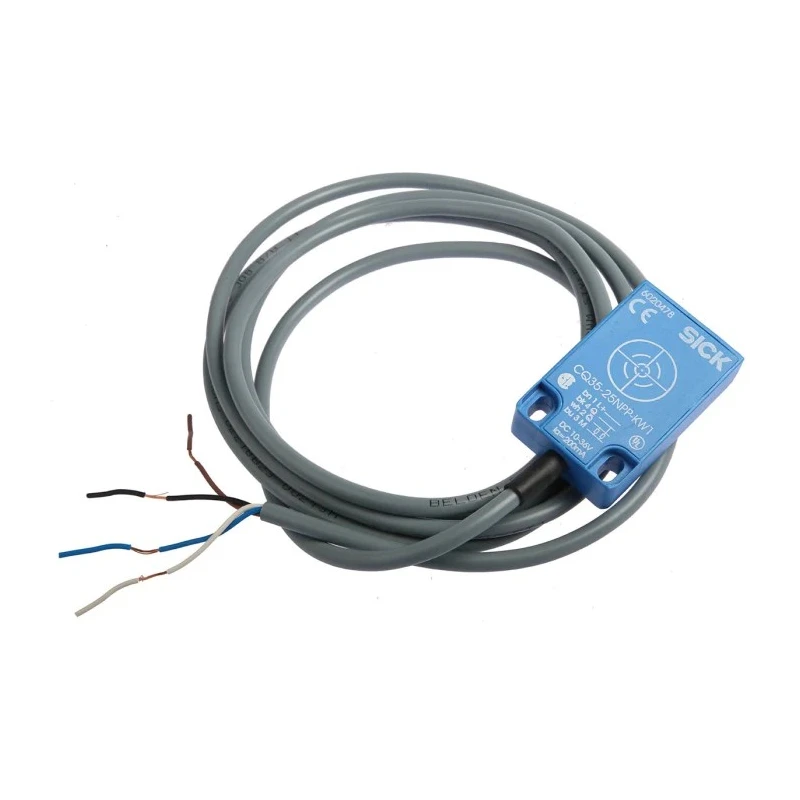

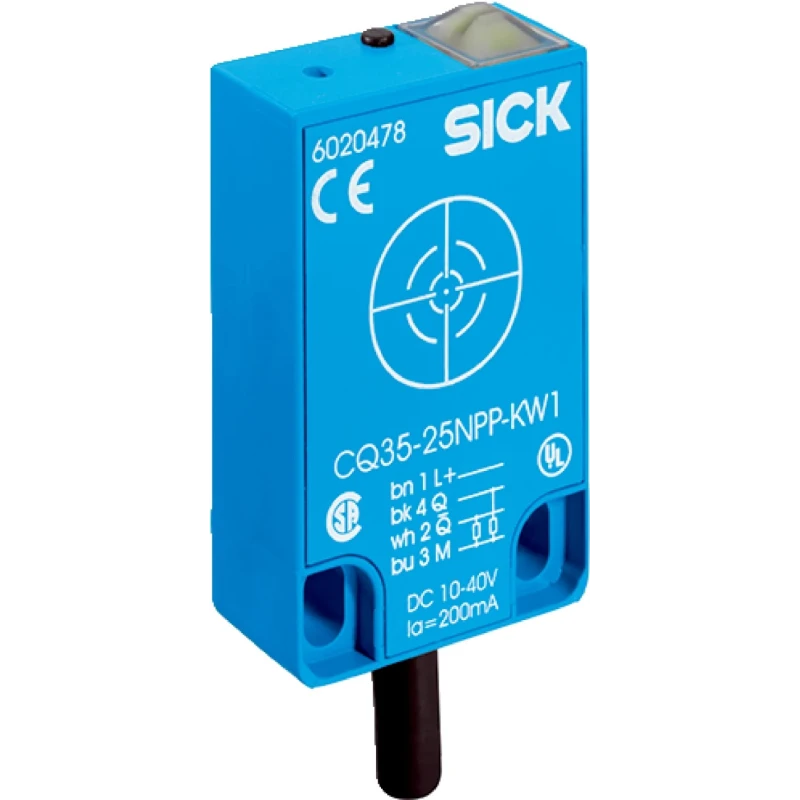

SICK Block Capacitive Proximity Sensor 25 mm Detection Range PNP Output 200mA Switching Current 40V dc 250V ac CQ35-25NPP-KW1

SICK CQ35-25NPP-KW1 Block Capacitive Proximity Sensor offers precise and reliable object detection with a maximum sensing distance of 25 mm. This sensor delivers a PNP output signal and supports a switching current of 200 mA, making it ideal for direct control of low-power loads in automation systems. Its compact rectangular block design with non-flush mounting enables installation in offset positions where space is limited.

Constructed from durable plastic and polycarbonate, the sensor housing meets IP67 standards, offering full protection against dust ingress and temporary immersion in water, ensuring robust operation in harsh industrial environments. It functions effectively within a temperature range of -25°C to 75°C, suitable for diverse factory floor conditions.

The device operates at a maximum supply voltage of 40V DC and can handle an AC voltage up to 250V, providing flexibility for various control circuits. Its maximum switching frequency of 50 Hz allows moderate-speed object detection, useful in assembly lines, packaging machines, or pick-and-place operations.

This capacitive sensor is designed for detecting both metallic and non-metallic objects, enhancing versatility across automation tasks such as presence monitoring, part detection on conveyors, and end-of-travel detection in pneumatic systems. The unshielded sensor and pre-cabled terminal reduce installation complexity and enable quick maintenance.

Certified to UL and CE standards, the CQ35-25NPP-KW1 sensor complies with recognized industry safety and performance benchmarks. Made in Denmark, it belongs to the SICK CQ series known for quality and reliability.

The sensor features a compact block body style with non-flush mounting for versatile installation. Operates within a voltage range of 40V DC maximum and 250V AC maximum for flexible power supply compatibility. Designed for detecting both metallic and non-metallic objects with high reliability.

IP67 rated housing made of plastic and polycarbonate ensures protection against dust and temporary immersion. Capable of operating in temperatures ranging from -25°C to 75°C, suitable for industrial environments. Supports a maximum switching frequency of 50 Hz for moderate-speed detection tasks.

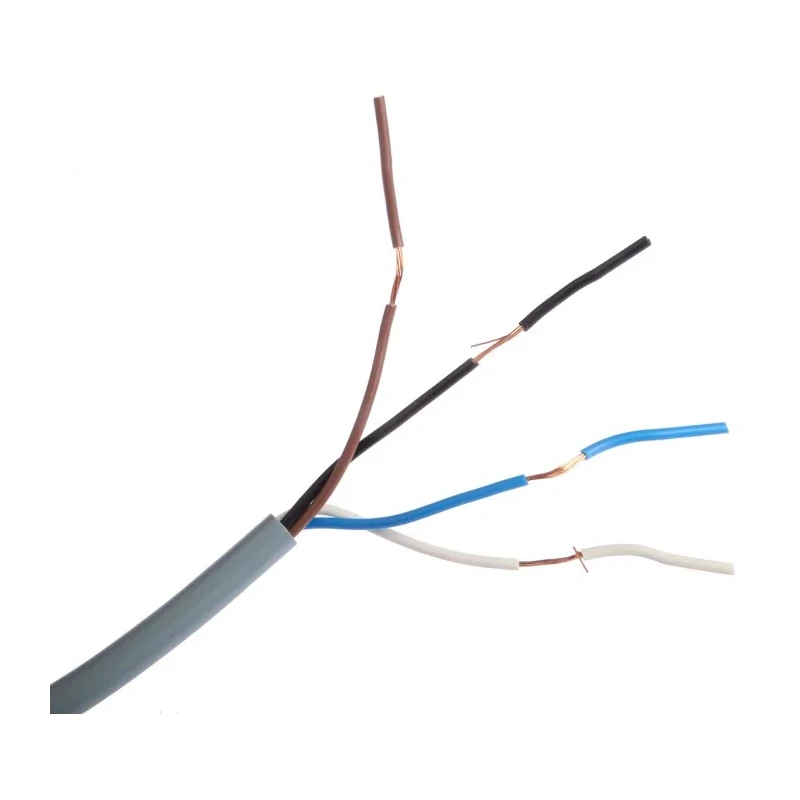

Pre-cabled terminal type reduces wiring time and simplifies installation on site. Output type is PNP, facilitating easy integration with source input controllers. Unshielded sensing offers appropriate detection range in diverse applications.

Complies with UL and CE standards ensuring conformity to safety and quality regulations.

This sensor is well suited for industrial automation applications, including manufacturing, packaging, assembly line monitoring, and pneumatic actuator position sensing. Its robust construction and precise sensing capabilities make it a reliable choice for demanding factory environments. Explore more sensors and automation components at EnvMart for your industry needs.
