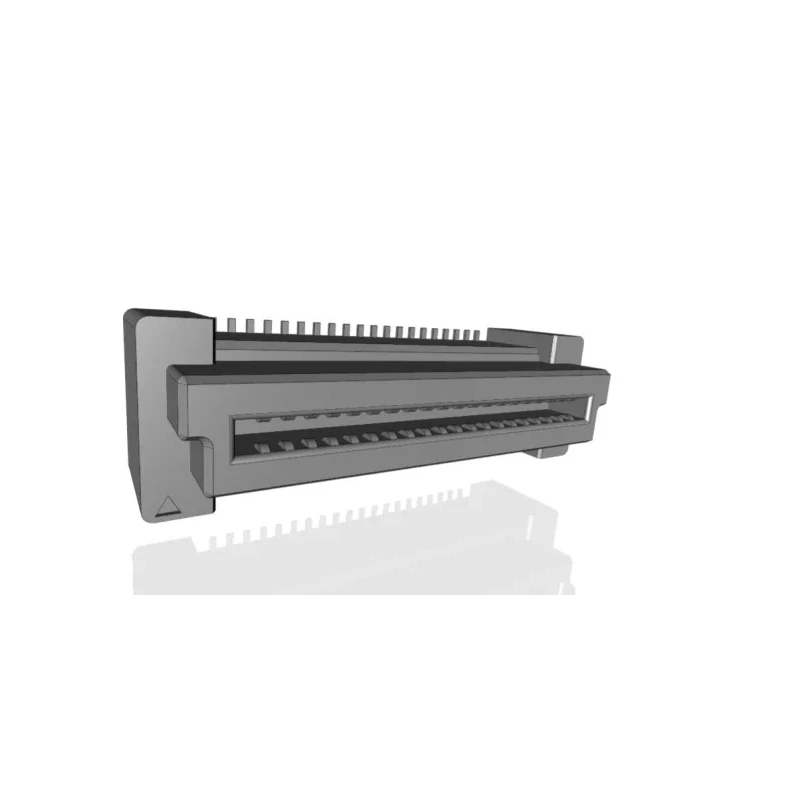

TE Connectivity Free Height Series Straight Surface PCB Socket 40-Contact 2 Row 0.8 mm Pitch Solder 5-5179009-1

TE Connectivity 5-5179009-1 Free Height Series Straight Surface PCB Socket is a high-density board-to-board connector designed for compact electronic assemblies requiring reliable interconnections. This PCB socket accommodates 40 female contacts arranged in 2 rows with a fine 0.8 mm pitch, facilitating space savings exceeding 50% compared to connectors with 1.27 mm pitch.

The socket features a liquid crystal polymer housing, providing structural integrity and resistance to environmental stresses. Its gold-plated beryllium copper alloy contacts utilize a bellows-type spring design that resists damage during mating cycles and ensures consistent electrical performance. The straight surface mount design supports ease of PCB installation and solder termination.

Operating voltage is rated at 100 V with a current rating of 500 mA, suitable for low power electronics. It functions reliably within a temperature range from -40°C to 125°C, catering to diverse industrial and commercial environments.

Positioning bosses and polarization features are incorporated for accurate placement and connector mating, which reduces assembly errors and improves product reliability in manufacturing processes. This connector series supports a variety of stacking heights when combined with corresponding board mount plugs, enabling flexible mezzanine board stacking between 5 to 16 mm.

Common applications include notebook PCs, pen tablets, mobile phones, and other compact electronic devices requiring miniature connector packaging for space-constrained designs. Compact board-to-board socket with 0.8 mm pitch for high-density applications.

Supports current rating of 500mA and voltage of 100V. Constructed with liquid crystal polymer housing for durability. Gold-plated beryllium copper alloy female contacts ensure reliable connections. Designed for operating temperatures from -40°C to 125°C.

Straight orientation suitable for surface mount technology applications. Polarization feature for accurate mating and PCB positioning bosses for precise installation. Ideal for electronic devices like notebooks, mobile phones, and compact equipment.

Explore a wide range of TE Connectivity PCB Sockets in EnvMart for reliable and space-efficient connector solutions tailored to your industrial and commercial needs.
