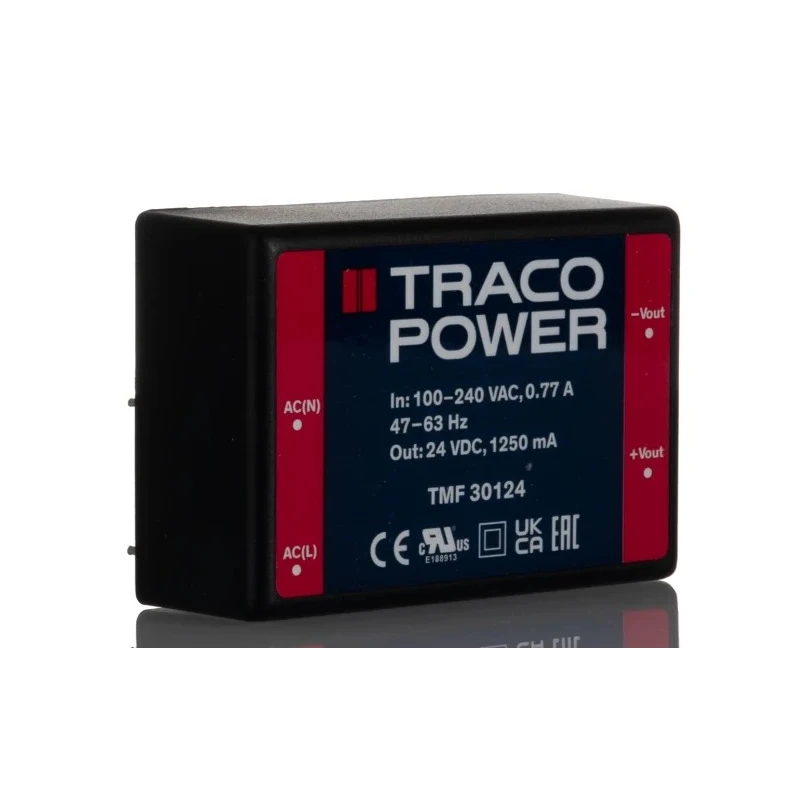

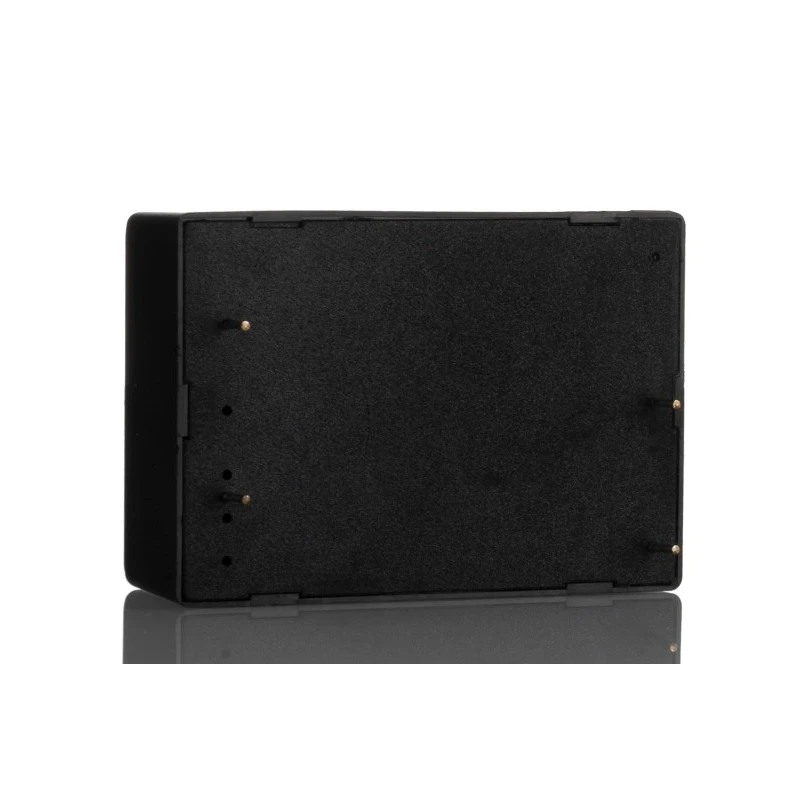

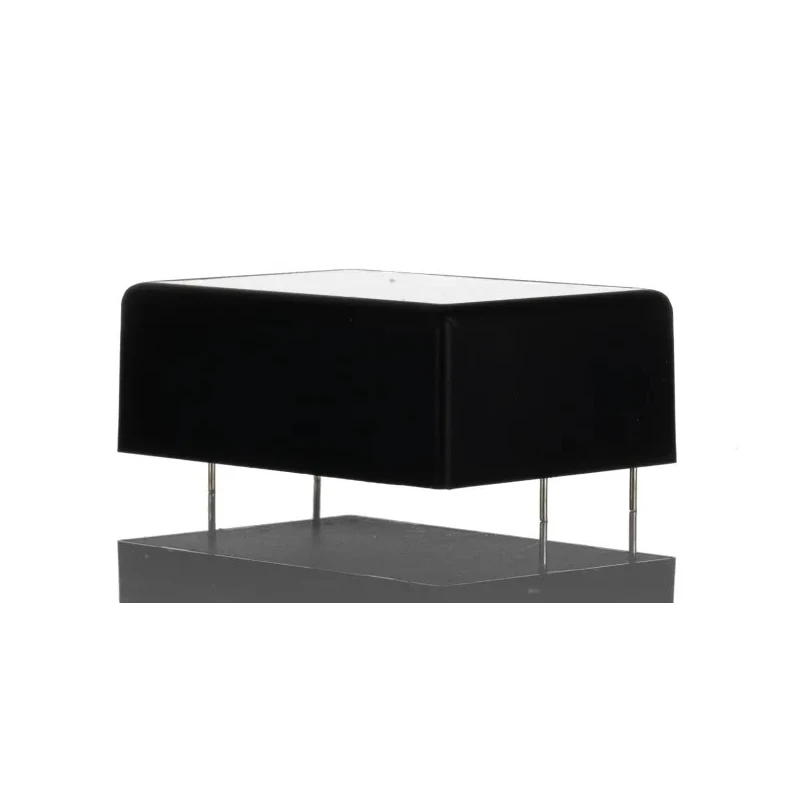

TRACOPOWER TMF 30124 Switching Power Supply 24V DC, 30W, PCB Mount, Medical Standard TMF 30124

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER TMF 30124 Switching Power Supply 24V DC, 30W, PCB Mount, Medical Standard TMF 30124

Name: TRACOPOWER TMF 30124 Switching Power Supply 24V DC, 30W, PCB Mount, Medical Standard TMF 30124
Brand: TRACOPOWER
SKU: 195385
Price: 80.73 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	30W
Efficiency	85%
Length	64.1mm
Model	TMF 30124
Depth	23.5mm
Gross Weight	135g
Width	45.6mm
Mount Type	PCB
Series	TMF 30
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	1.25A
Minimum Input Voltage	120, 90V dc
RoHS, ISO 14971, IEC/EN/ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1	14, ANSI/AAMI ES 60601-1

Key Features

This power supply supports an input voltage range of 90 to 264V AC and 120 to 370V DC.
It provides a single output channel with a maximum current of 1.25A for reliable operation.
Operating temperature range extends from -25°C to 70°C, suitable for diverse environments.
Its compact dimensions are 64.1mm length, 45.6mm width, and 23.5mm depth for PCB mounting.
The unit achieves 85% efficiency to minimize energy loss during operation.
Designed with reinforced insulation and low leakage current under 100μA for patient safety.
It meets IEC/EN/ES 60601-1 and other medical safety standards for use in healthcare equipment.
Fully encapsulated construction ensures robust protection in critical medical and automation devices.

Product Description

TRACOPOWER TMF 30124 switching power supply is engineered for medical applications requiring stable and safe power delivery. It features a compact PCB mount design with a 24V DC output voltage and 30W power rating, capable of supplying 1.25A current reliably. The power supply operates within a wide AC input range of 90 to 264V and DC input range of 120 to 370V, supporting various industrial and healthcare power systems.

This unit provides low leakage current less than 100μA to ensure patient safety and complies with strict medical standards including IEC/EN/ES 60601-1. Its operating temperature range of -25°C to +70°C allows usage in demanding environmental conditions, while the fully encapsulated design protects internal components effectively.

Measuring 64.1mm in length, 45.6mm in width, and 23.5mm in depth, the TMF 30124 is optimized for PCB mounting in compact and transportable medical and automation equipment. The power supply features short circuit protection and achieves 85% efficiency to reduce energy loss and thermal load.

Applications include medical devices requiring reliable power, PCB integrated circuitry in healthcare instrumentation, transportable medical equipment, as well as broader uses in automation and electronics industries.

This power supply supports an input voltage range of 90 to 264V AC and 120 to 370V DC. It provides a single output at 24V DC with 1.25A current and 30W power rating. Operating temperature range is -25°C to +70°C for versatile environments.

Compact dimensions of 64.1 x 45.6 x 23.5 mm, suitable for PCB mounting. Compliance with IEC/EN/ES 60601-1 medical standards ensures safety and reliability. Low leakage current under 100μA enhances patient safety in medical setups.

Short circuit protection extends component longevity and operational safety. Reinforced insulation and fully encapsulated design protect internal electronics. Energy efficiency of 85% helps reduce power loss and heat generation.

Explore the Electronics & Electricals category at EnvMart for more reliable Switching Power Supplies from TRACOPOWER and other trusted brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The TMF 30124 provides a single output voltage of 24V DC with a maximum output current of 1.25A, resulting in a power rating of 30W.

It supports an input voltage range of 90 to 264V AC and 120 to 370V DC.

This model measures 64.1mm in length, 45.6mm in width, and 23.5mm in depth, making it suitable for PCB mounting.

The operating temperature range extends from -25°C to +70°C, allowing for use in diverse environments.

It complies with IEC/EN/ES 60601-1 and other medical safety standards, ensuring safety for healthcare applications.

The TMF 30124 achieves an efficiency of 85%, minimizing energy loss during operation.

Yes, it includes short circuit protection to enhance operational safety and extend component longevity.

The gross weight of this model is 135g.

It has a low leakage current of less than 100μA, which is important for patient safety in medical applications.

This power supply is designed for PCB mounting, making it suitable for integration into compact devices.

It is suitable for medical devices requiring reliable power, PCB integrated circuitry in healthcare instrumentation, and broader uses in automation and electronics industries.

In addition to IEC/EN/ES 60601-1, it is also certified to RoHS, ISO 14971, CSA CAN/CSA-C22.2 NO. 60601-1, and ANSI/AAMI ES 60601-1.
