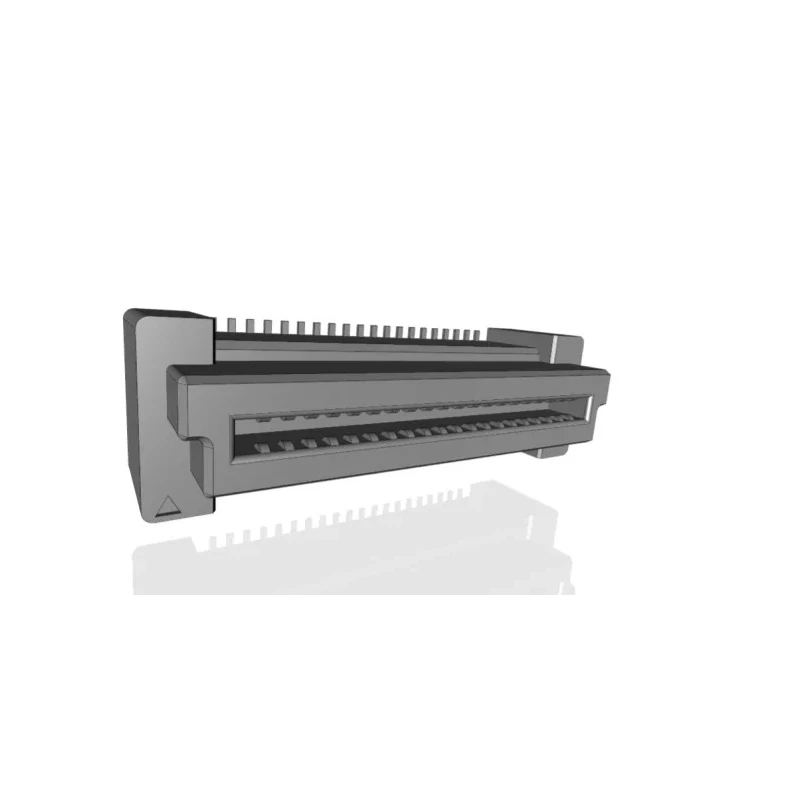

TE Connectivity Free Height Series Straight Surface PCB Socket 40-Contact 2 Row 0.8mm Pitch Solder 5-5179009-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for board-to-board connections with high density packaging.
- Contains 40 female contacts made of gold-plated beryllium copper alloy.
- Housing material is durable liquid crystal polymer for stability.
- Operates reliably from -40°C to 125°C temperature range.
- Supports 500mA current and 100V voltage ratings.
- Bellows type spring contacts provide resistance to scooping and stubbing.
- Suitable for notebook PCs, pen pads, and mobile phones usage.
- Manufactured in China under TE Connectivity's Free Height series.
Product Description
TE Connectivity 5-5179009-1 Free Height Series Straight Surface PCB Socket is a 40-contact board-to-board connector designed for high density electronic assembly. Engineered with a 0.8mm pitch and arranged in 2 rows, this surface mount PCB socket offers reliable solder termination and precision mechanical alignment.
The connector housing is made from durable liquid crystal polymer, resistant to environmental stresses. The contacts are female gender, composed of beryllium copper alloy with a high-quality gold plating to ensure consistent low resistance connections and enhanced durability. Its bellows-type spring contact design resists scooping and stubbing during mating cycles, delivering reliable electrical performance.
Operating temperature range from -40°C to 125°C makes this PCB socket suitable for demanding industrial and consumer electronics environments. It supports a current of 500mA and voltage rating of 100V, ideal for various low power applications.
The Free Height series supports multiple board stacking heights from 5mm to 16mm depending on the mating plug used, making it suitable for mezzanine and parallel board stacking in compact electronic equipment such as notebook PCs, pen pads, and mobile phones.
This product is compliant with UL E28476 standards and manufactured in China. The precise polarization and PCB positioning bosses improve the accuracy of placement and mating, resulting in robust and maintenance-free interconnect solutions.
Designed for high-density board-to-board electrical connections. 40 female contacts with gold plated beryllium copper alloy for optimal conductivity. Durable liquid crystal polymer housing for reliable mechanical stability.
Supports operating temperatures from -40°C to 125°C. Current rating up to 500mA and voltage rating up to 100V. Free Height bellows type spring contact design for mating durability. Ideal for use in notebook PCs, pen pads, and mobile phones.
Manufactured in China under TE Connectivity Free Height series.
Explore the extensive range of TE Connectivity PCB Sockets on EnvMart for reliable electronic component solutions in diverse industrial, commercial, and consumer electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 0.8mm, designed for high-density electronic assembly.
This model can operate at a maximum temperature of 125°C, making it suitable for demanding environments.
It supports a current rating of 500mA, which is suitable for various low power applications.
This PCB socket features 40 female contacts, ensuring reliable electrical connections.
The housing is made from liquid crystal polymer, while the contacts are composed of beryllium copper alloy with gold plating.
This socket utilizes solder termination, providing a secure connection to the PCB.
The voltage rating for this model is 100V, suitable for various electronic applications.
The orientation of this socket is straight, designed for board-to-board connections.
It is suitable for use in notebook PCs, pen pads, and mobile phones, among other compact electronic devices.
The minimum operating temperature for this socket is -40°C, allowing it to function in cold environments.
The bellows-type spring contact design provides resistance to scooping and stubbing during mating cycles, enhancing durability.
This product is manufactured in China under TE Connectivity's Free Height series.
