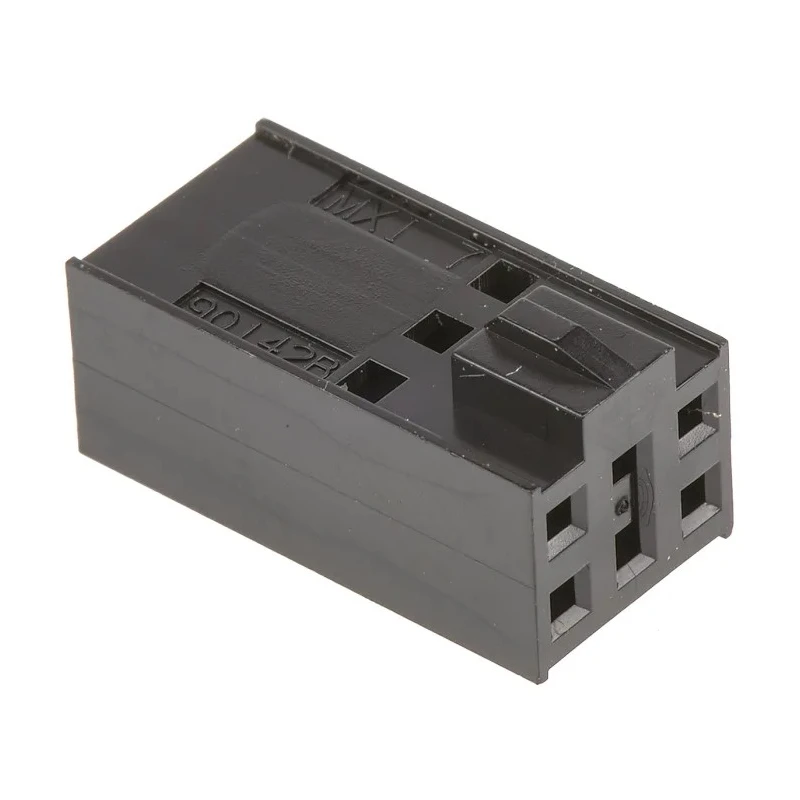

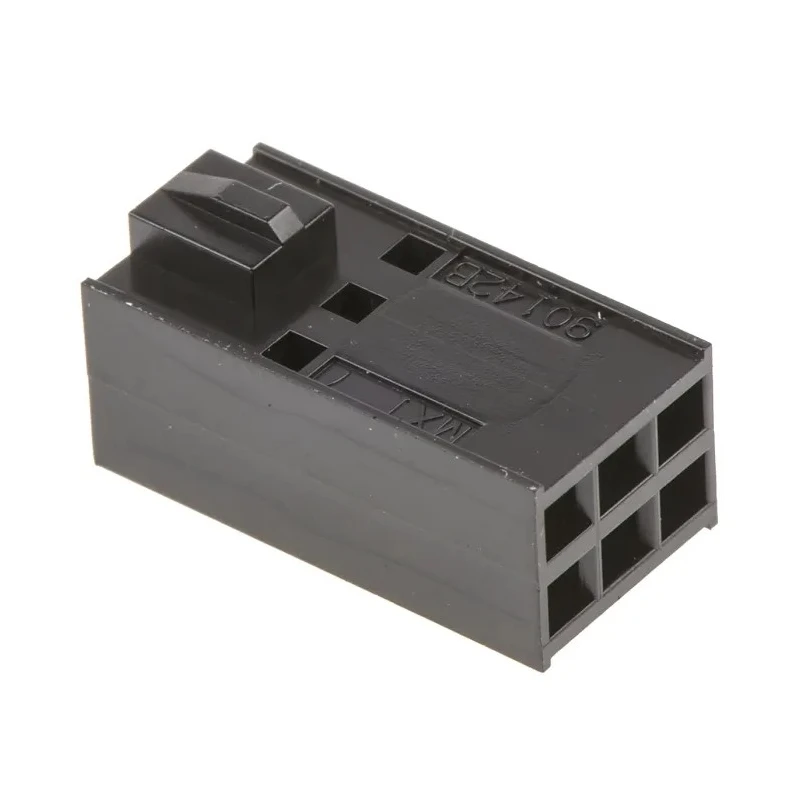

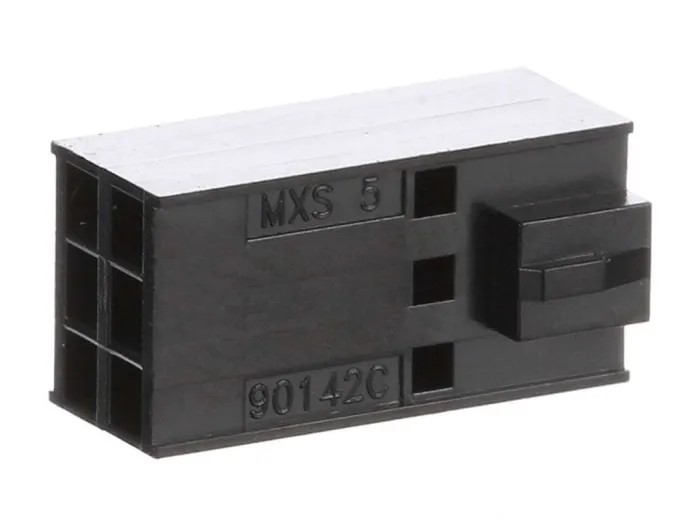

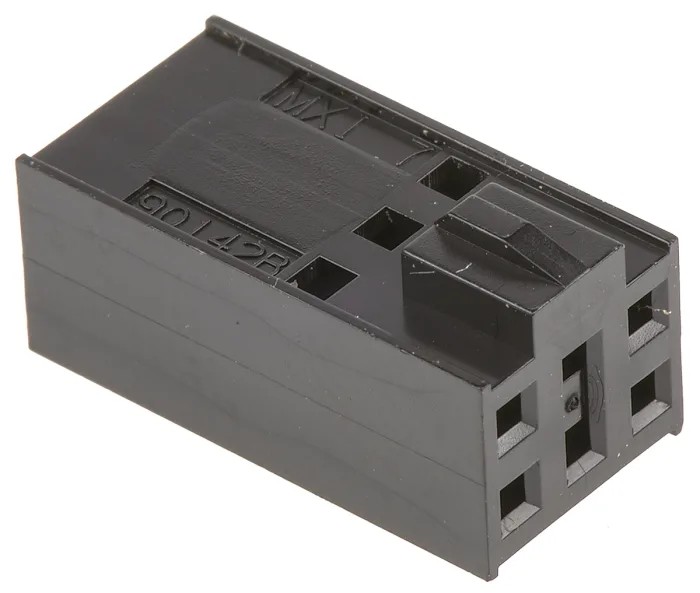

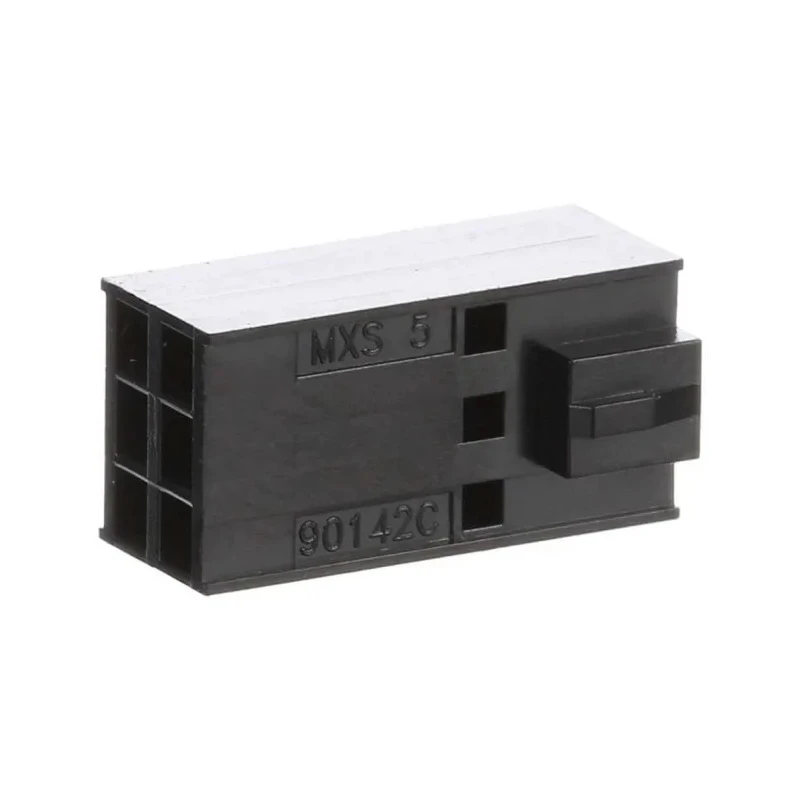

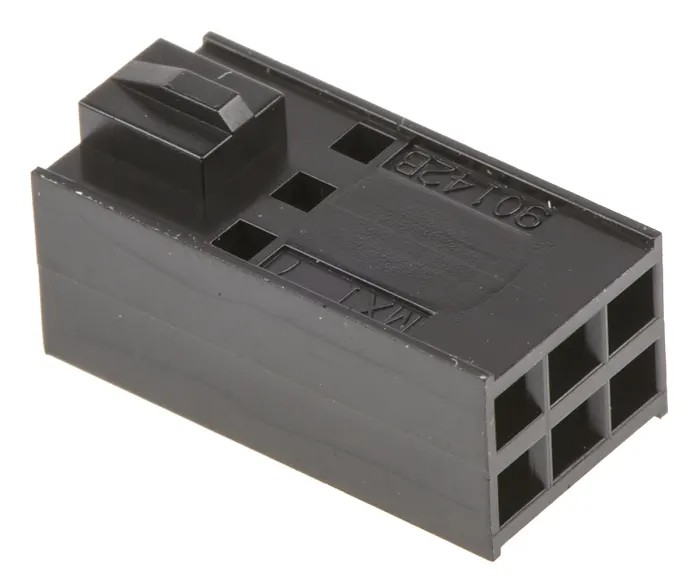

TE Connectivity C-Grid III Female Connector Housing 2.54 mm Pitch 6 Way 2 Row Straight 90142-0006
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 7.62mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Constructed from durable polyphenylene oxide material for mechanical impact resistance.
- Designed to provide reliable protection and insulation for connectors linked to PCBs.
- Compact size with length of 7.62 mm and width of 7.72 mm.
- Supports a current rating of 3 A, ensuring energy-efficient operation without heat dissipation.
- Includes polarization and keying features to prevent mismating and incorrect alignment.
- Wide operating temperature range from -55°C to +105°C suitable for harsh industrial environments.
- Features an audible click to confirm a secure lock on the connector housing.
- Compatible with Molex C-Grid III dual-row connector headers from 90122, 90130, and 90131 series.
Product Description
The Molex 90142-0006 is a female connector housing from the C-Grid III series, featuring a 2.54 mm pitch and 6-way, 2-row straight configuration designed for cable mounting applications. Made from robust polyphenylene oxide, this housing offers excellent durability and resistance to mechanical impact, making it suitable for demanding industrial and electronic environments.
This connector housing ensures reliable protection for connectors interfacing with printed circuit boards (PCBs), reducing the risk of electric shock through its insulating material. Its compact dimensions of 7.62 mm length and 7.72 mm width reduce strain on PCBs while facilitating multi-circuit signal transmission.
Rated at 3 amps, the housing operates efficiently without producing heat, enhancing safety and longevity. It features polarized and keyed design elements that prevent mismating and ensure correct alignment during assembly, supported by an audible click to verify secure locking.
Engineered to endure wide temperature extremes from -55°C to +105°C, the housing remains functional in challenging conditions encountered in medical equipment, robotics, automation, and automotive systems.
Compatible with Molex C-Grid III connector headers in the 90122, 90130, and 90131 series, this housing is part of a versatile interconnection system providing modular and flexible connectivity solutions.
Durable polyphenylene oxide construction resists mechanical impact. Reliable insulation prevents electric shock risks. Compact 7.62 mm length and 7.72 mm width reduce PCB strain. 3A current rating ensures energy-efficient, heat-free operation.
Polarized with audible locking for secure, accurate connections. Wide operating temperature range from -55°C to +105°C. Compatible with Molex C-Grid III dual-row headers.
This female Connector Housing is ideal for industrial, manufacturing, medical, robotics, automotive, and automation applications requiring dependable PCB connector protection. Browse EnvMart for additional Molex C-Grid III series components and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a 2.54 mm pitch and a 6-way, 2-row straight configuration, designed for cable mounting applications.
It is constructed from polyphenylene oxide, which provides durability and mechanical impact resistance.
This connector housing supports a current rating of 3 A, ensuring efficient operation without heat dissipation.
The housing has a length of 7.62 mm and a width of 7.72 mm, designed to reduce strain on printed circuit boards (PCBs).
It operates within a wide temperature range from -55°C to +105°C, making it suitable for harsh industrial environments.
The housing includes polarization and keying features that prevent mismating and incorrect alignment during assembly.
Yes, it features an audible click that confirms a secure lock on the connector housing when properly connected.
It is compatible with Molex C-Grid III dual-row connector headers from the 90122, 90130, and 90131 series.
This model is a female connector housing, designed for use with corresponding male connectors.
It is suitable for various applications including industrial, manufacturing, medical, robotics, automotive, and automation systems.
The connector housing is manufactured in Indonesia.
This model supports cable mounting, making it versatile for different installation scenarios.
