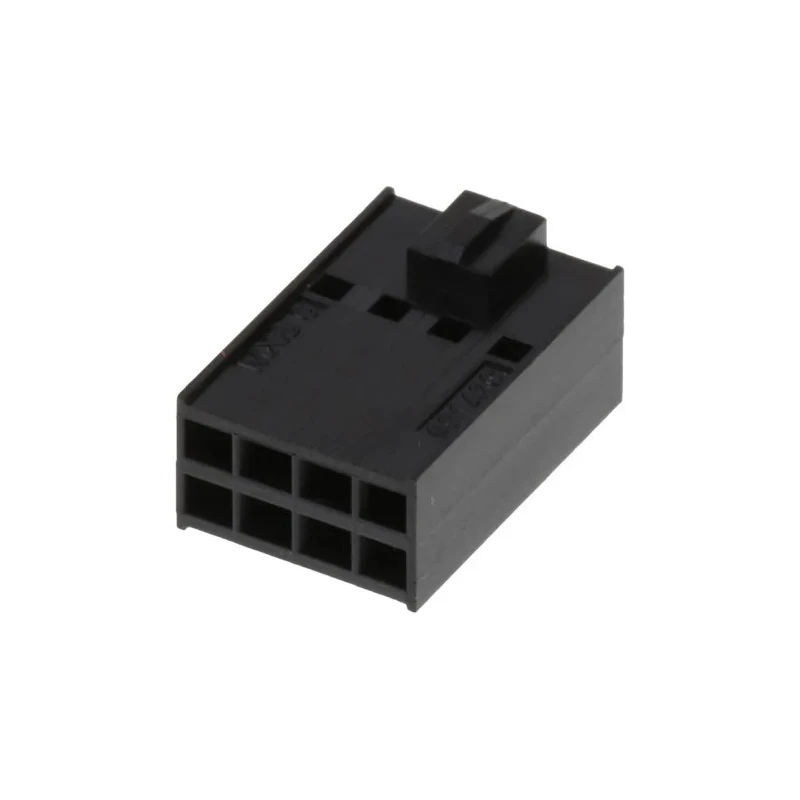

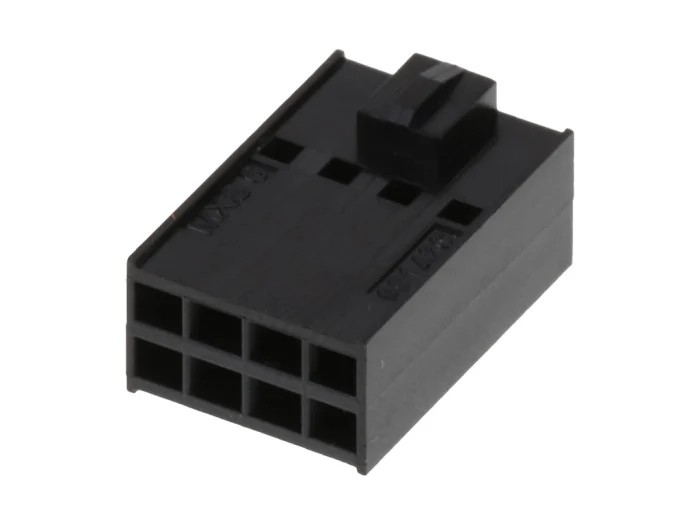

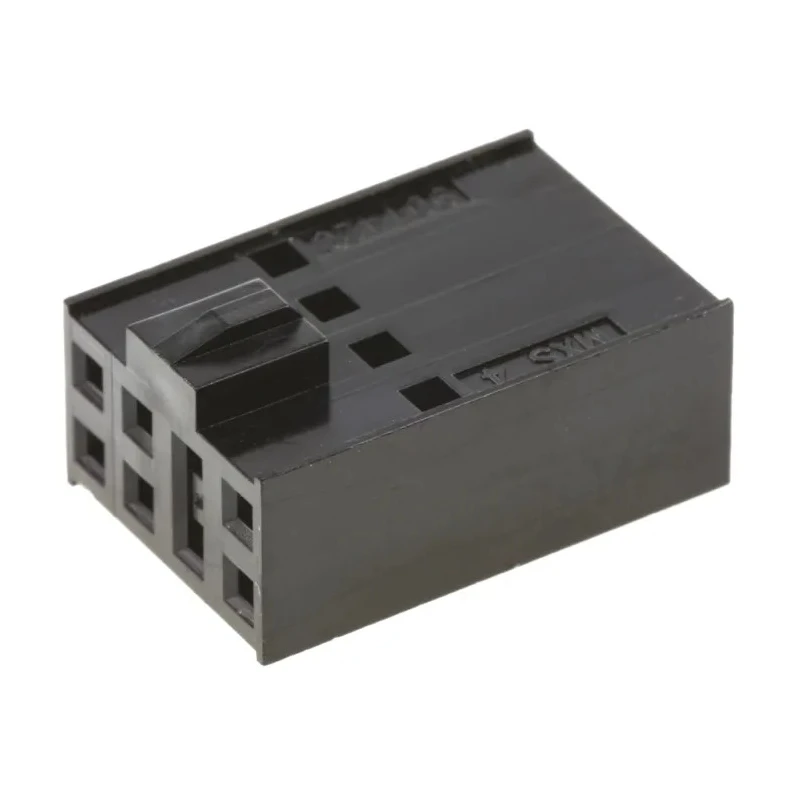

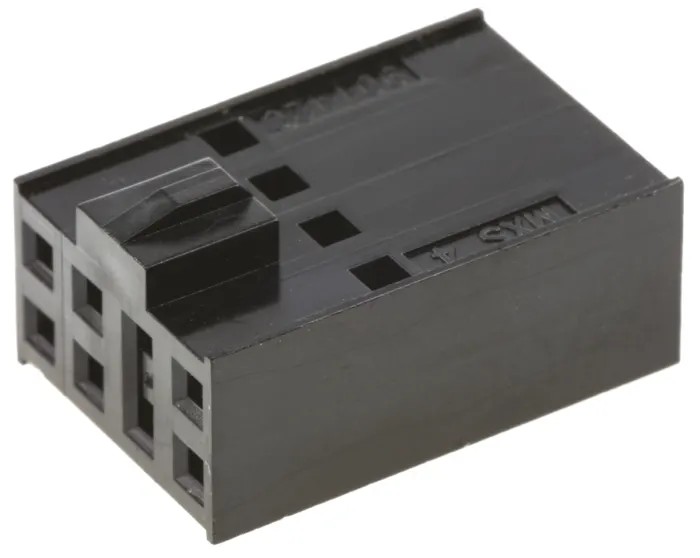

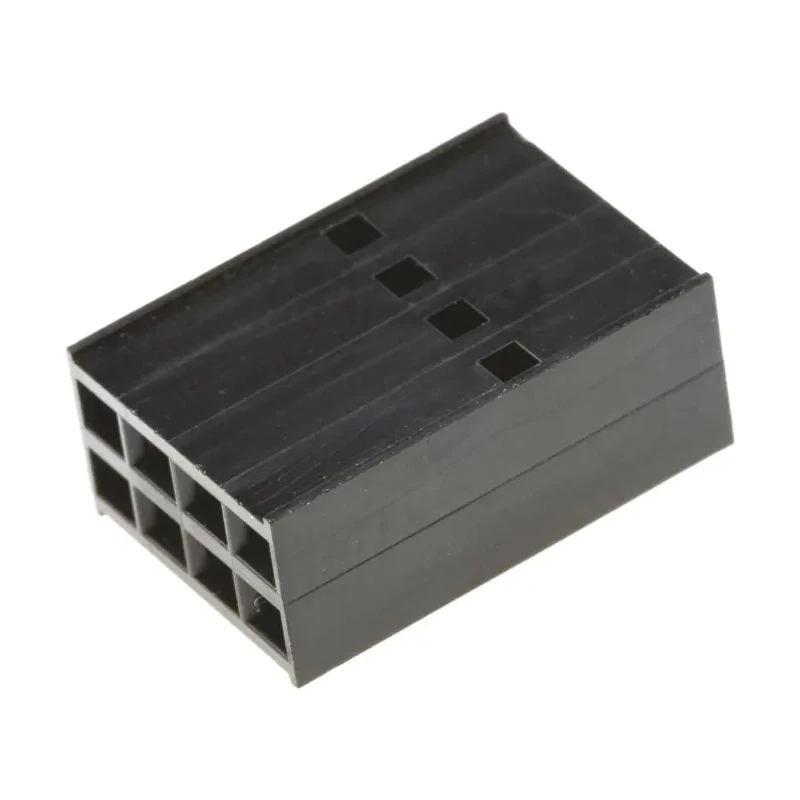

TE Connectivity C-Grid III Female Connector Housing, 2.54 mm Pitch, 8 Way, 2 Row Straight 90142-0008
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 10.16mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- This connector housing features a pitch of 2.54 mm for precise connections.
- It has 8 contacts arranged in 2 rows to support multiple connections.
- The housing is made of durable black nylon material suitable for harsh environments.
- Designed for cable mounting with a straight orientation for easy installation.
- The connector provides a wide operating temperature range from -55°C to +105°C.
- It supports a maximum current of 3A per contact ensuring energy efficiency.
- The connector housing is flame-retardant, stopping burning within 10 seconds.
- Ideal for use in personal computers, consumer electronics, and security systems.
Product Description
Molex 90142-0008 Female Connector Housing is part of the C-Grid III interconnection system, featuring a 2.54 mm pitch and 8-way contact configuration arranged in two rows with straight orientation for cable mounting applications. It is constructed from robust black nylon material, engineered to withstand wide temperature ranges from -55°C to +105°C, making it suitable for extreme climatic conditions.
This connector housing supports a maximum current of 3A per contact, ensuring low heat dissipation and efficient energy use. It incorporates a flame-retardant design that stops burning within 10 seconds, enhancing safety in volatile environments.
The C-Grid III system offers modular components and a uniform locking system, making the connector highly versatile and easy to assemble with simple hand crimping tools. Its compact size, with a length of 10.16 mm and a width of 7.72 mm, makes it ideal for tight integration in electronic devices.
Common applications include use in personal computers, consumer electronics, and security systems, where reliable and durable wire-to-board connections are essential. The connector meets industry standards DIN 41651 and HE13/14, underscoring its quality and compatibility.
The connector housing features a 2.54 mm pitch for precise pin spacing. It supports 8 contacts in a dual-row configuration. Constructed from flame-retardant nylon for enhanced safety. Designed for cable mount with straight orientation.
Wide operating temperature range from -55°C to +105°C. Maximum current rating of 3A per contact ensures energy efficiency. Compatible with the Molex C-Grid III series interconnection system. Uniform locking system facilitates secure connections.
Compact and durable design suitable for electronic equipment. Explore a wide range of high-quality Connector Housings and electronic components at EnvMart to support industrial, commercial, and consumer electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, allowing for precise pin spacing in connections.
This model supports 8 contacts arranged in 2 rows, making it suitable for multiple connections.
The maximum current rating per contact for this connector housing is 3A, ensuring efficient energy use.
It operates within a wide temperature range from -55°C to +105°C, making it suitable for extreme conditions.
The housing is made from durable black nylon, designed to withstand harsh environments.
This model is designed for cable mounting with a straight orientation for easy installation.
The dimensions of this connector housing are 10.16 mm in length and 7.72 mm in width.
This connector housing is part of the C-Grid III series, which offers modular components and a uniform locking system.
The connector gender for this housing is female, designed to accommodate compatible male connectors.
It meets industry standards DIN 41651 and HE13/14, ensuring quality and compatibility.
This connector housing is commonly used in personal computers, consumer electronics, and security systems.
Yes, it features a flame-retardant design that stops burning within 10 seconds, enhancing safety.
