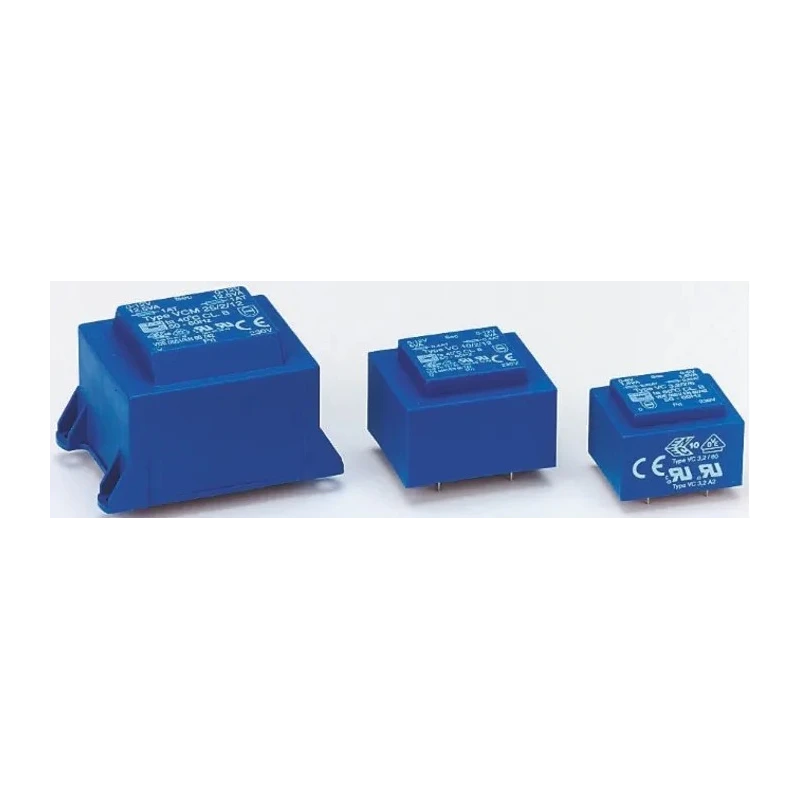

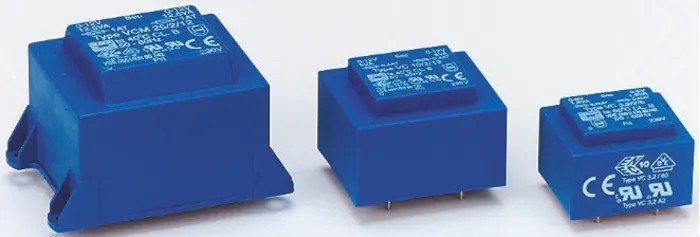

Block PCB Transformer 2 x 15 V ac 2 Output Pin Mount 16VA 230 V ac VC 16/2/15

Block VC 16/2/15 PCB Transformer is a high-quality pin mount transformer designed specifically for printed circuit board applications. It features a primary voltage of 230 V ac and two secondary windings delivering 15 V ac each, making it suitable for applications requiring dual output voltages.

With a power rating of 16 VA, the transformer efficiently converts power with an efficiency rating of 76.0%, ensuring stable performance in industrial and electronic environments. The compact dimensions of 57 mm length, 39 mm width, and 48 mm depth facilitate easy integration into dense PCB layouts.

The device supports operation at frequencies ranging from 50 Hz to 60 Hz and withstands maximum operating temperatures up to 40°C, ensuring reliability under typical operating conditions. Designed and manufactured in Germany, the transformer meets rigorous standards including DIN EN 61558-2-6, cURus, CSA 22.2 No.66, UL 5085-1/-2, and VDE certifications, reflecting compliance with international safety and quality norms.

Additional features include low inter-winding capacitance and low radiated noise, enhancing performance in sensitive electronic circuits. It is vacuum resin moulded to UL94-V0 rating for improved fire safety and includes provisions for extra fixing points for secure board mounting.

This PCB Transformer is ideal for industrial electronics, power supply units, manufacturing equipment, laboratory instruments, and other specialized electronic applications requiring dual voltage outputs.

Two 15 V ac secondary windings provide flexible output options. Pin mount design optimized for PCB integration. Compact dimensions facilitate installation in constrained spaces. Stable operation from 50 Hz to 60 Hz frequency.

Constructed to comply with multiple international safety standards. Vacuum resin moulded with UL94-V0 rating for fire resistance. Low inter-winding capacitance minimizes cross talk. Low radiated noise enhances signal integrity.

Manufactured in Germany ensuring high quality. Suitable for industrial, laboratory, and electronic manufacturing applications. Explore the range of power supply and transformer solutions on EnvMart for comprehensive options suitable for all your technical requirements.
