Block PCB Transformer 6 V AC 1 Output Pin, C-UL-US ENEC 10 (VDE) 2.8 VA VB 2,8/1/6

Free Delivery in India | Lowest Global Shipping Charges

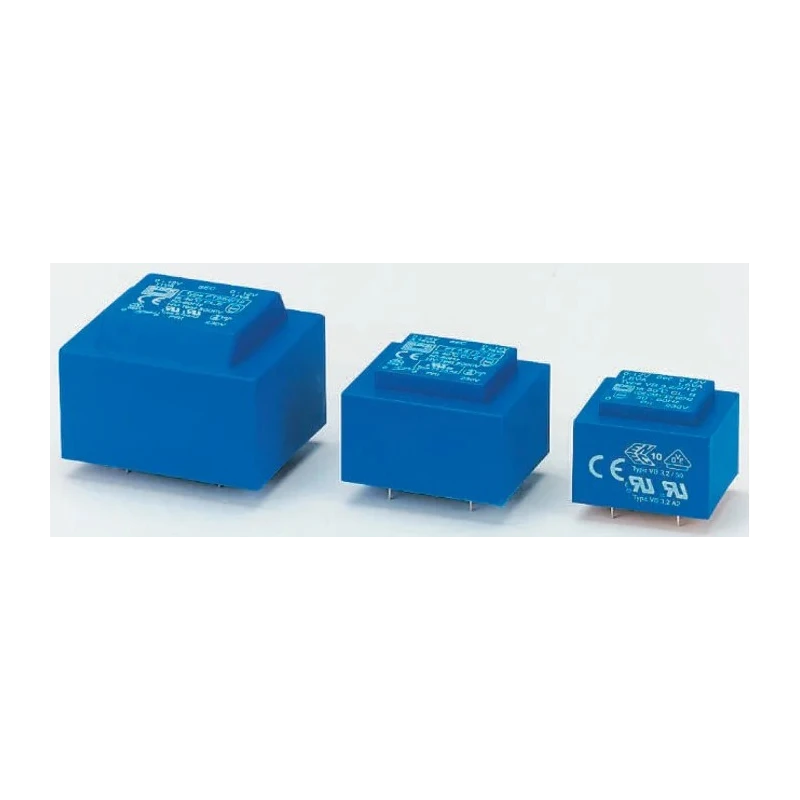

Block PCB Transformer 6 V AC 1 Output Pin, C-UL-US ENEC 10 (VDE) 2.8 VA VB 2,8/1/6

Name: Block PCB Transformer 6 V AC 1 Output Pin, C-UL-US ENEC 10 (VDE) 2.8 VA VB 2,8/1/6
Brand: Block
SKU: 314150
Price: 10.19 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	57%
Length	32.3mm
Model	VB 2,8/1/6
Depth	34mm
Gross Weight	140g
Width	27.3mm
Mount Type	Pin
Series	VB 2.8/1/6
Maximum Operating Temperature	70°C
Number of outputs	1
Standards/Approvals	C-UL-US, ENEC 10 (VDE)
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	6 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This model operates at a primary voltage of 230 V AC and outputs 6 V AC through a single output pin.
The transformer delivers 2.8 VA power capacity suitable for small power electronic circuits.
It features a pin mounting type for secure PCB installation.
The device has a maximum operating temperature of 70°C ensuring reliable performance.
Designed with high-voltage isolation up to 5000 V and 57% efficiency for safety and energy conservation.
Approved to C-UL-US and ENEC 10 (VDE) standards guaranteeing compliance with international electrical safety norms.

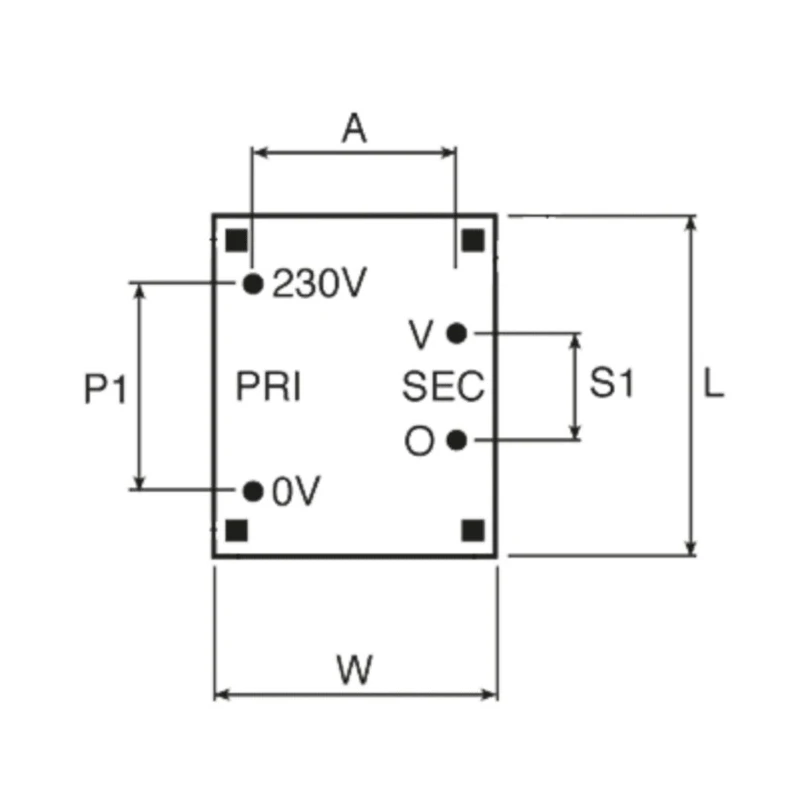

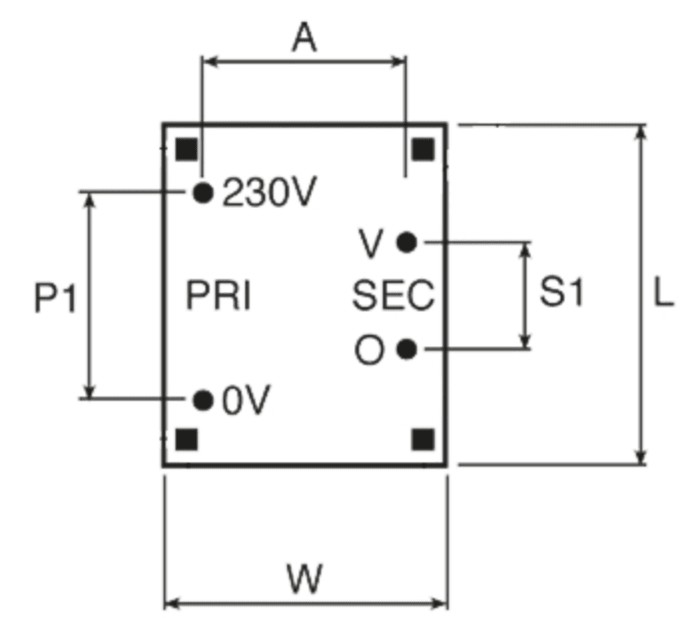

Its compact dimensions - 32.3 mm length, 27.3 mm width, and 34 mm depth - allow easy integration in electronic assemblies.

Product Description

Block VB 2,8/1/6 PCB Transformer delivers 6 V AC output from a 230 V AC primary voltage, providing 2.8 VA power suitable for various electronic applications requiring transformer isolation and power regulation.

This transformer is designed for PCB mounting using pin installation, featuring a compact design with dimensions of 32.3 mm length, 27.3 mm width, and 34 mm depth, which facilitates integration into electronic circuit boards.

Constructed with vacuum epoxy resin moulding rated to UL94-V0, and double-section glass fibre reinforced polyamide bobbins, it ensures durability and electrical safety. The device is 100% electrical and flash tested to guarantee reliable operation.

Key features include a maximum operating temperature of 70°C and an isolation voltage of 5000 V that protects sensitive electronics from voltage surges. The 57% efficiency rating supports energy-efficient power transformation with low temperature rise.

Standards compliance includes C-UL-US approval and ENEC 10 certification (VDE), making it suitable for industrial and commercial applications in electronics manufacturing, power supplies, and instrumentation.

This model is inherently short circuit proof up to its rated power rating, ensuring robust protection in typical operating conditions. Low inter-winding capacitance and low radiated noise support quieter electronic operation.

Designed primarily for use in electronic components, power supplies, and transformers sectors supporting laboratory, manufacturing, and industrial equipment. Country of origin: Germany. Explore more electronics power supply transformers and components on EnvMart for high-quality industrial and commercial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The primary voltage rating is 230 V AC.

This model provides a secondary output voltage of 6 V AC.

It delivers a power capacity of 2.8 VA, suitable for small power electronic circuits.

The dimensions are 32.3 mm in length, 27.3 mm in width, and 34 mm in depth.

The maximum operating temperature is 70°C.

It features a pin mounting type for secure PCB installation.

The efficiency rating is 57%, and it has an isolation voltage of 5000 V.

It is approved to C-UL-US and ENEC 10 (VDE) standards.

The minimum operating frequency is 50 Hz, and the maximum is 60 Hz.

The gross weight of this model is 140 g.

The transformer is manufactured in Germany.

It is designed for use in electronic components, power supplies, and transformers sectors, supporting laboratory, manufacturing, and industrial equipment.
