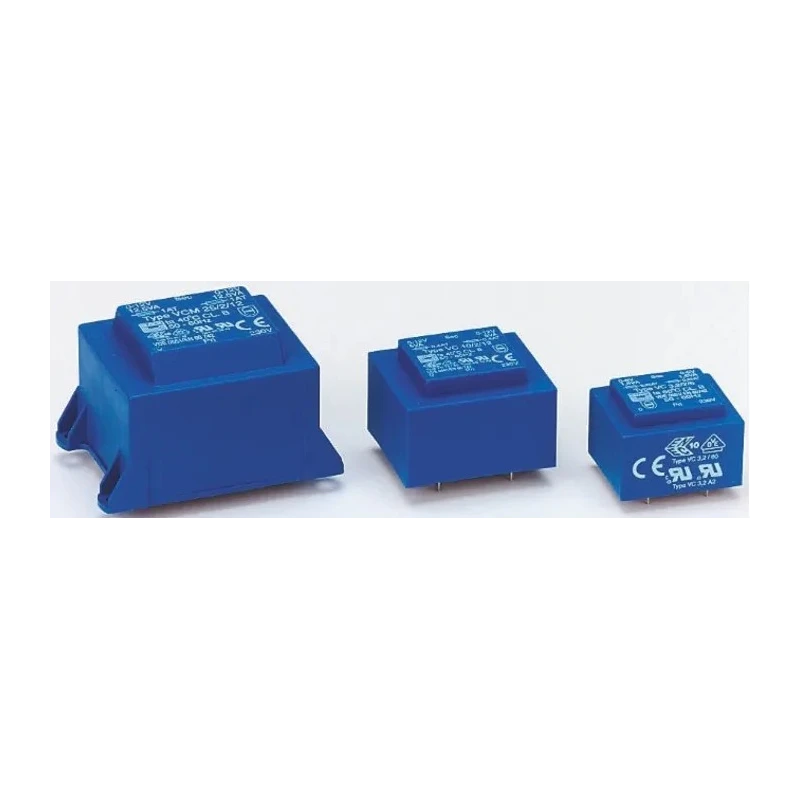

Block PCB Transformer 230 V ac Primary 18 V ac Secondary 2 Outputs Through Hole Mount 36 VA VCM 36/2/18

Block VCM 36/2/18 PCB Transformer is a high-quality industrial power transformer designed to provide 36 VA power conversion with a primary voltage of 230 V ac and a secondary voltage of 18 V ac via two separate outputs. The through-hole mounting style facilitates secure and durable attachment on printed circuit boards, common in various industrial and electronic applications.

This PCB transformer features a single primary winding with dual secondary windings that can be connected in series or parallel, allowing versatile installation configurations. The vacuum resin molding process achieves a UL94-V0 rating, which ensures flame retardance and enhances operational safety.

The design also benefits from low inter-winding capacitance that significantly reduces noise and electromagnetic interference, making it suitable for sensitive electronic equipment. Operating efficiently at 83%, the transformer handles a maximum operating temperature of 40°C, ensuring stable performance under typical industrial environmental conditions.

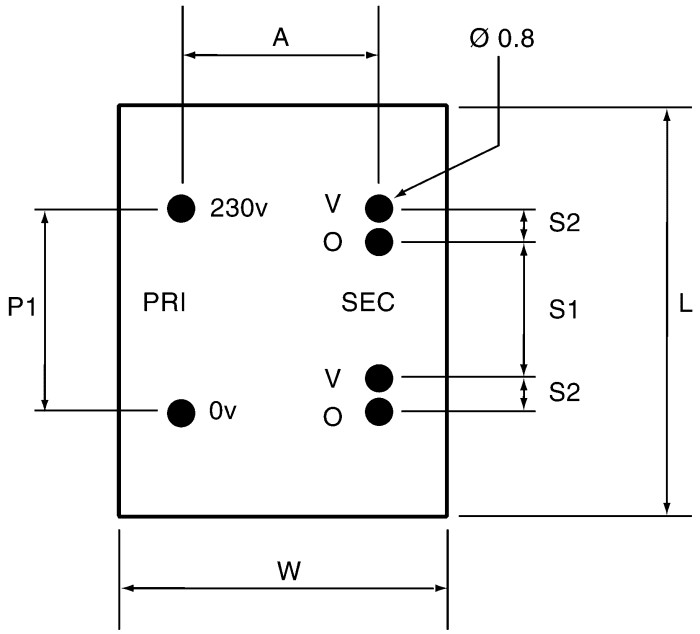

With physical dimensions of 87.2mm length, 48.5mm width, and 60mm depth, and a weight of 750g, the unit is compact yet robust for PCB transformer assemblies. It operates effectively within standard frequency ranges of 50 Hz to 60 Hz.

The VCM 36/2/18 complies with strict European and international standards including VDE 0550 and UL506. It is also ENEC and UL recognized, underscoring its compliance with high safety and quality requirements.

Manufactured in Germany, this transformer is ideal for electronic component, industrial power supply, and control system manufacturing environments. It is designed for reliable service life in areas including industrial machines, electronic devices, and general electrical equipment.

Offers efficient power transformation with 83% efficiency. Designed for PCB mounting using through-hole technology. Single primary winding with dual secondary outputs allows series or parallel connection. Compact dimensions of 87.2mm length, 48.5mm width, and 60mm depth.

Constructed with vacuum resin moulding achieving UL94-V0 rating for safety. Integrated low inter-winding capacitance to minimize interference. Capable of operating within 40°C maximum temperature range. Conforms to VDE and UL standards with ENEC and UL recognitions.

Suitable for 50 Hz to 60 Hz frequency applications. Manufactured in Germany ensuring high-quality craftsmanship. Explore more in EnvMart’s PCB Transformer category for quality power supply components from trusted brands like Block.
