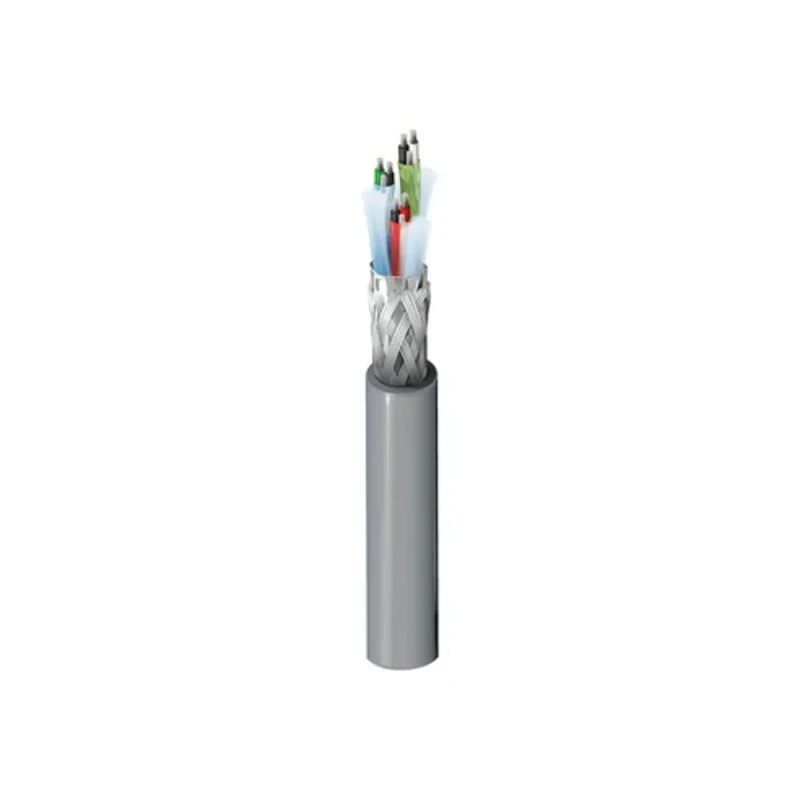

Belden 8163 Series Data Cable 3 Pairs 6 Cores 0.2 mm² 152 m Silver Sheath Polyvinyl Chloride 8163.012

Belden 8163.012 is a high-performance data cable featuring 3 pairs (6 cores) with a cross-sectional area of 0.2 mm² and an overall length of 152 meters. It is jacketed in silver polyvinyl chloride providing excellent insulation and mechanical protection suitable for a wide range of industrial and commercial applications.

The conductors consist of stranded tin copper wire composed of 7 strands of 32AWG, offering flexibility and robust electrical conductivity. Each pair of conductors is individually shielded with a Beldfoil (polyester/aluminium) in Zfold construction, reducing electromagnetic interference and crosstalk. Additionally, the cable has an overall Beldfoil tape shield and a 65% coverage tinned copper braid that further enhances signal integrity.

This cable is designed for low capacitance, making it ideal for applications such as computer networks, digital audio transmission, and RS-232/422 communications. The jacket material, polyvinyl chloride, is durable and resistant to operating temperatures ranging from -40°C to 60°C, ensuring reliable performance in varied environments.

Belden 8163.012 meets Euroclass Eca fire standards and UL1581 Vertical Tray fire behaviour requirements, ensuring safety compliance for installation in vertical trays and cable ducts. It is rated to operate at up to 300 volts, suitable for electrical and data transmission needs in industrial automation and control systems.

The cable’s silver sheath not only adds aesthetic value but also contributes to the shielding effectiveness. This product originates from the Netherlands, reflecting high manufacturing standards and quality control.

The cable has a stranded tin copper conductor for reliable electrical performance. Each pair is individually shielded with Beldfoil in Zfold construction for reduced interference. Overall Beldfoil tape and 65% tinned copper braid provide additional shielding.

The cable jacket is made from durable polyvinyl chloride with a silver coating. Designed for low capacitance applications including computer and digital audio systems. Operates at a maximum temperature of 60°C and minimum of -40°C.

Complies with Euroclass Eca fire standards and UL1581 Vertical Tray fire behaviour. Rated for a voltage of 300V ensuring safe industrial and commercial use.

This Data Cable is suitable for use in industrial, laboratory, manufacturing, and automation environments where robust data transmission with minimal signal loss is critical. It is commonly used in computer networking, digital audio communication, and RS-232/422 data links.
