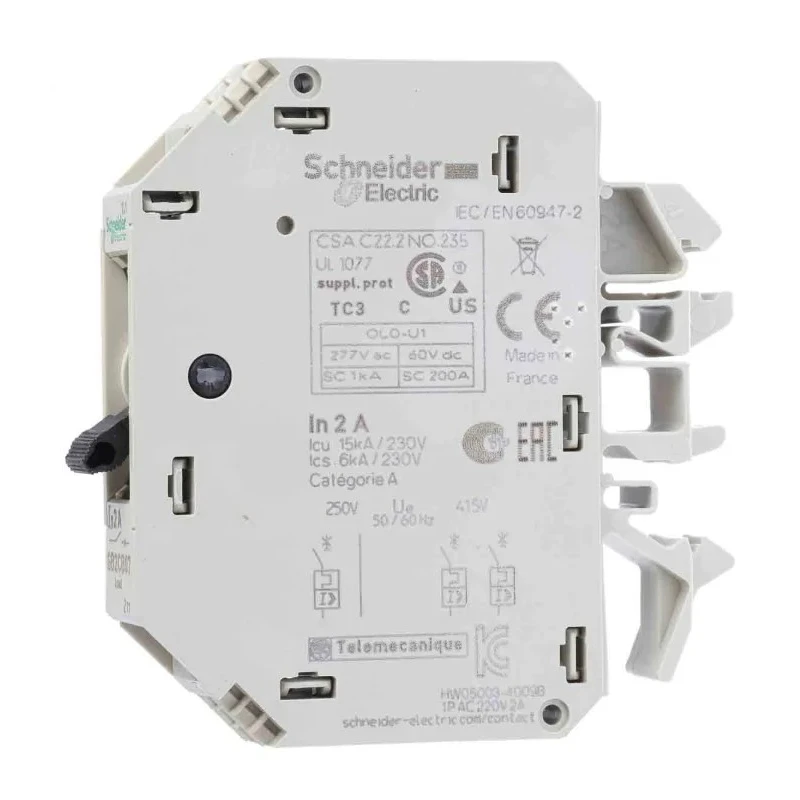

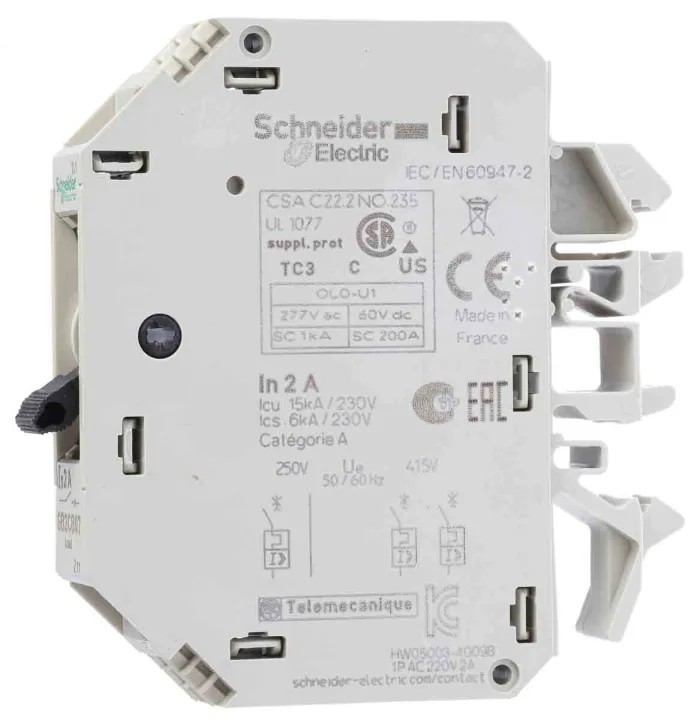

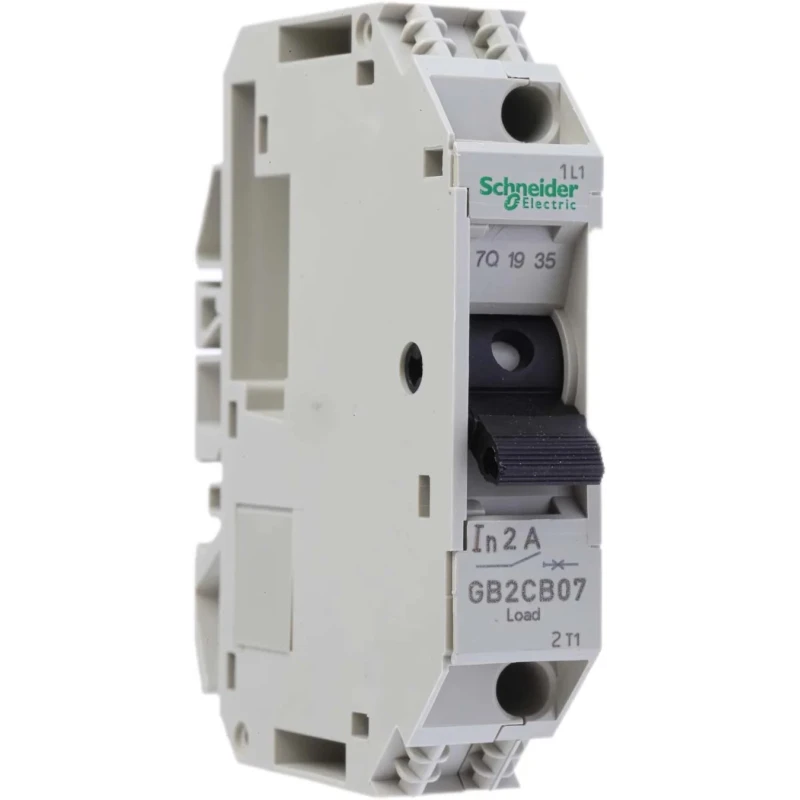

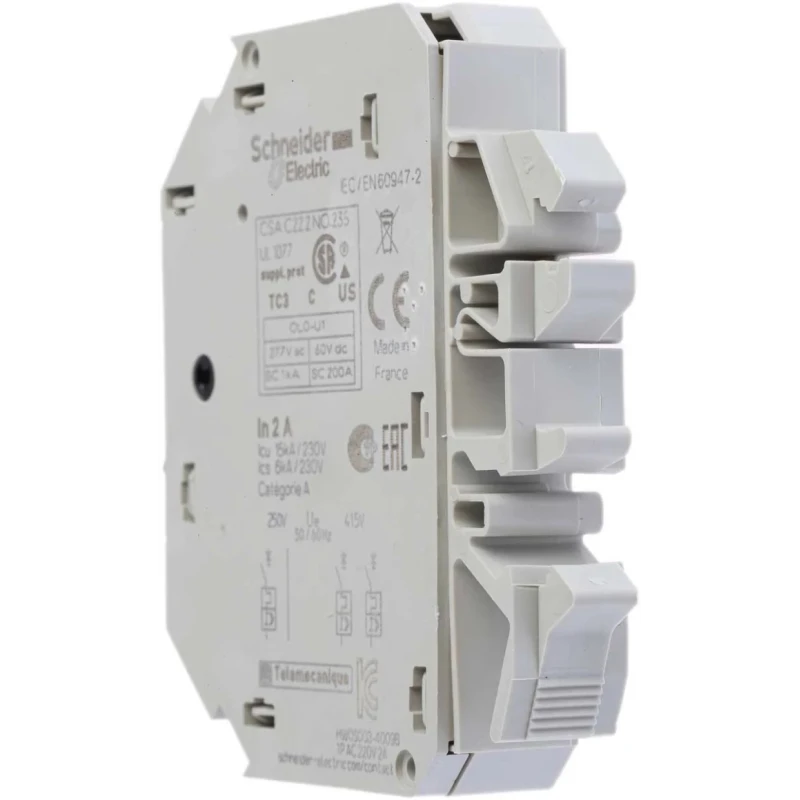

Schneider Electric TeSys GB2 Thermal Circuit Breaker 2A Current Rating 1-Pole DIN Rail Mount GB2CB07

Schneider Electric GB2CB07 Thermal Circuit Breaker is a 2A rated, 1-pole device designed for use in industrial and automation control panels. It integrates a thermal trip element combined with a magnetic short circuit response to provide reliable and resettable overcurrent protection in both AC and DC applications, supporting rated voltages up to 250V AC and 48V DC.

The breaker features a compact 15mm width and robust construction that clips on to standard 35mm DIN rails, enabling straightforward mounting both horizontally and vertically within electrical cabinets and control panels. The toggle switch actuator allows quick manual resetting in case of trips, which streamlines maintenance operations.

This circuit breaker provides a breaking capacity of 15kA at medium break time suitable for interrupting high fault currents safely. Cable terminals accommodate conductor sizes from 0.75 to 6mm², enhancing flexibility in wiring arrangements. The device complies with RoHS and CE standards, ensuring conformity with environmental and safety regulations.

Its application includes protection for control circuits, motor starter coils, and distribution branches within machine electrical cabinets. The GB2CB07 breaker is ideal for retrofit as well as new installations in industrial automation, HVAC control systems, manufacturing equipment, and various commercial electrical panels.

Mechanically and electrically rated for 8,000 operating cycles, it provides durable and reliable service life under normal operating conditions. This ensures sustained protection performance and reduced maintenance frequency in demanding industrial environments.

Offers 15kA breaking capacity for effective fault interruption. Thermal-magnetic tripping mechanism provides overload and short circuit protection. Rated for 250V AC and 48V DC operation ensuring versatility. Compact 15mm width supports space-saving designs.

Toggle switch reset actuator enables quick manual reclosure after trip. Cable terminals accept 0.75 to 6mm² conductors for flexible wiring. Meets RoHS and CE standards for safety and compliance. Suitable for industrial automation control panels and motor starter protection.

Mounts securely on standard 35mm DIN rails supporting retrofit installations. Designed for 8000 mechanical and electrical cycles for reliable long-term operation. Explore more Schneider Electric control and circuit protection products on EnvMart for comprehensive solutions.
