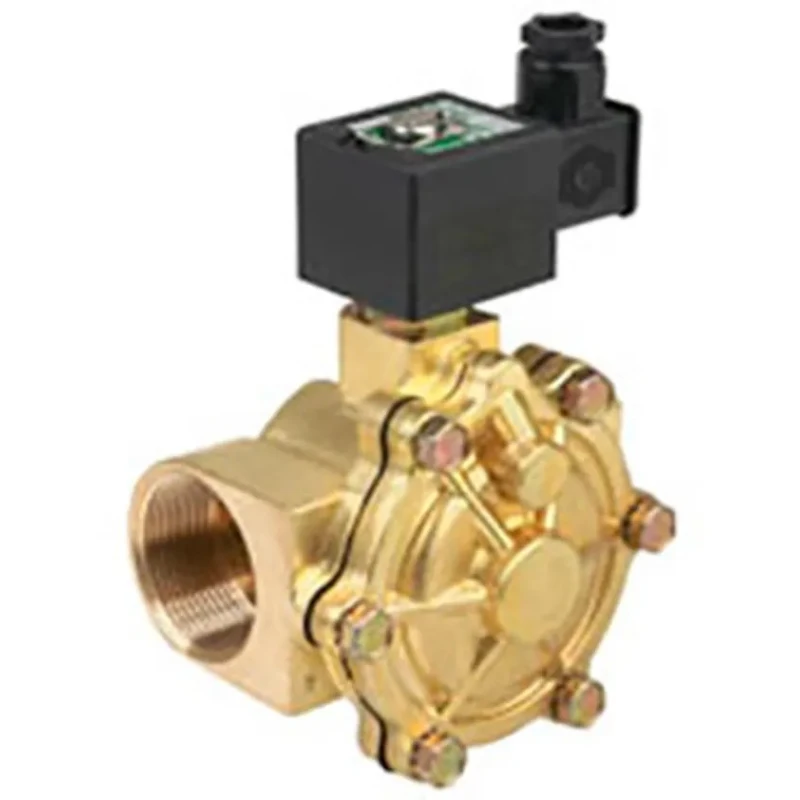

EMERSON ? ASCO Solenoid Valve 2 Port Normally Closed Brass Body 3/8 to 2 in Rp ISO 7/1 Thread 230V AC SCE210D022.230/50

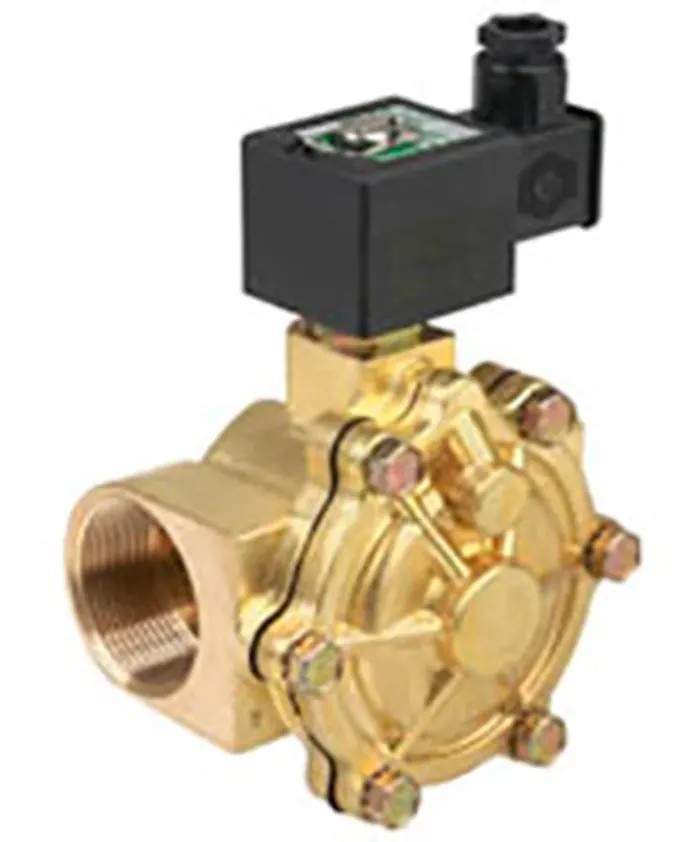

EMERSON ASCO SCE210D022.230/50 solenoid valve is a 2-port normally closed valve constructed with a robust brass body, suitable for multiple industrial fluid control applications involving air, inert gases, oil, and water.

This valve operates on a 230V AC power supply and features Rp ISO 7/1 inlet thread and RP outlet thread compatible with pipe connections measuring between 3/8 to 2 inches, providing versatile installation adaptability.

The solenoid valve offers a 32mm orifice diameter, facilitating a maximum flow factor Kv of 19.3 m³/h, optimized for efficient fluid flow management.

Performance parameters include a maximum operating pressure of 9 bar and an operational temperature range spanning from -20°C to 85°C, accommodating diverse industrial environments.

Equipped with servo assist technology, this valve ensures enhanced control responsiveness and reliability in fluid handling processes.

Compliant with multiple industrial standards and directives including EC Directives, optional NEMA, UL, CSA certifications, and hazardous area certification ATEX, it meets stringent safety and quality benchmarks.

The maximum opening and closing times are both rated at 120 milliseconds, supporting precise and timely actuation in automation systems.

Manufactured in the Netherlands, the valve's brass body construction combines durability with corrosion resistance, making it suitable for demanding applications in industrial, manufacturing, HVAC, water treatment, and laboratory fluid control sectors.

The valve features a 32mm orifice diameter for efficient flow. Designed with Rp ISO 7/1 inlet and RP outlet thread standards for pipe connections. Rated for a maximum operating pressure of 9 bar and temperature range from -20°C to 85°C.

Equipped with servo assist for improved operation performance. Standards compliance includes EC Directives and optional certifications such as UL, CSA, and ATEX. Maximum flow factor Kv of 19.3 cubic meters per hour. Maximum valve opening and closing time of 120 milliseconds each.

Manufactured in the Netherlands ensuring high-quality brass body construction. Explore the full range of industrial Solenoid Valves at EnvMart for reliable and efficient fluid control solutions.
