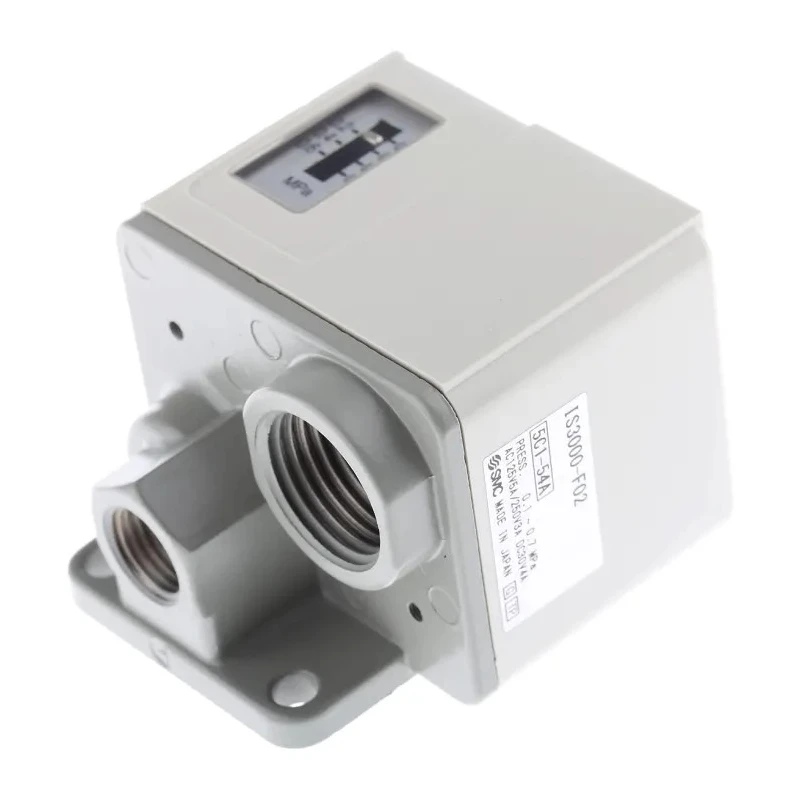

SMC Pressure Switch NC 0.1 MPa to 8 bar 1/4 in Port Size, 160mA Current, IP40, IS3000-F02
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 8 bar |
| Current | 160mA |
| Height | 70mm |
| Model | IS3000-F02 |
| Depth | 48mm |
| IP Rating | IP40 |
| Width | 58mm |
| Series | IS3000 |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Positive Pressure |
| Contact Configuration | NC |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -5°C |
| Minimum Operating Pressure | 0.1MPa |
| Suitable Medias | Gas, Air |
Key Features
- The pressure switch supports a port size of 1/4 inch.
- Operates with a minimum pressure of 0.1 MPa and a maximum pressure of 8 bar.
- Features a normally closed (NC) contact configuration suitable for safety applications.
- Current rated at 160mA for reliable switching performance.
- Designed for positive pressure media including gas and air.
- Operating temperature range from -5°C to 60°C for versatile environments.
- Includes adjustment screw with protection nut for pressure setting precision.
- Suitable for high operating frequency up to 1 operation per second.
Product Description
SMC IS3000-F02 Pressure Switch NC 0.1 MPa to 8 bar is a high-precision pneumatic pressure switch designed to regulate and monitor positive pressure within fluid power systems.
This pressure switch features a 1/4 inch port size and supports media such as gas and air, making it ideal for industrial applications requiring precise pressure regulation and control. The switch operates at a minimum pressure of 0.1 MPa and can handle pressures up to 8 bar.
Its normally closed (NC) contact configuration and current rating of 160mA allow for reliable signal switching suited for safety interlocks and automatic control circuits. The device supports a wide temperature range from -5°C to 60°C, enabling performance in varied environmental conditions.
SMC designed the IS3000 series with ease of pressure adjustment via a screw with a protection nut to prevent unintended changes. It can operate at high frequencies of one operation per second and offers a service life of more than 10 million cycles, ensuring robustness and longevity in demanding industrial, pneumatic, and automation systems.
The compact design with dimensions of 70mm height, 58mm width, and 48mm depth coupled with an IP40 rating provides adequate protection against dust ingress for typical industrial environments.
The pressure switch accommodates positive pressure media including gas and air. It integrates a relay output featuring 1 normally open and 1 normally closed contact for flexible circuit design. Adjustment protection by nut secures the set pressure during operation.
This product is particularly suited for industrial fluid power and pneumatic applications requiring reliable pressure monitoring. Service life exceeds 10 million operational cycles, ensuring excellent durability in continuous use scenarios.
This SMC pressure switch is an essential component for applications in pneumatics, manufacturing automation, and instrumentation systems. Browse the full range of SMC pneumatic components and Pressure Switches on EnvMart for enhanced control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum pressure of 0.1 MPa and a maximum pressure of 8 bar.
It features a port size of 1/4 inch, suitable for various pneumatic applications.
The current rating is 160mA, allowing for reliable signal switching performance.
It is designed for positive pressure media, specifically gas and air.
The operating temperature range is from -5°C to 60°C, making it versatile for different environments.
This pressure switch has a normally closed (NC) contact configuration, suitable for safety applications.
It can operate at a high frequency of up to one operation per second.
The dimensions are 70mm in height, 58mm in width, and 48mm in depth.
It has an IP40 rating, providing protection against dust ingress in typical industrial environments.
It includes an adjustment screw with a protection nut to ensure precision in pressure setting and prevent unintended changes.
The service life exceeds 10 million operational cycles, ensuring longevity in demanding applications.
The country of origin for this product is India.
