Eaton 2 Position 90 ° Knob Actuator Cam Switch 20 A 690 V AC Rated Voltage 78628225 T0-1-8220/E/EZ-P1(RS294-7771)

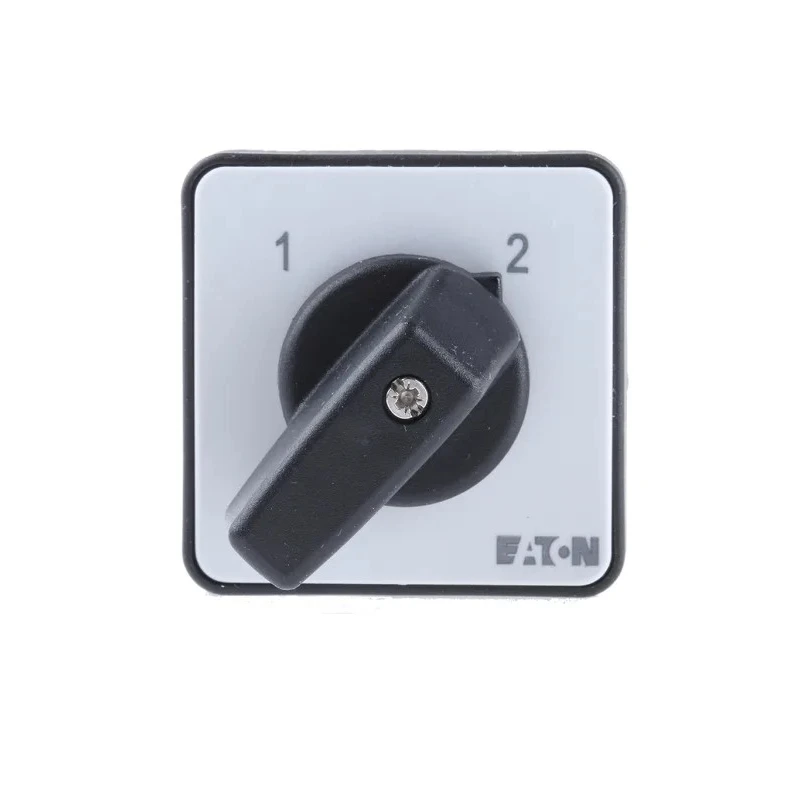

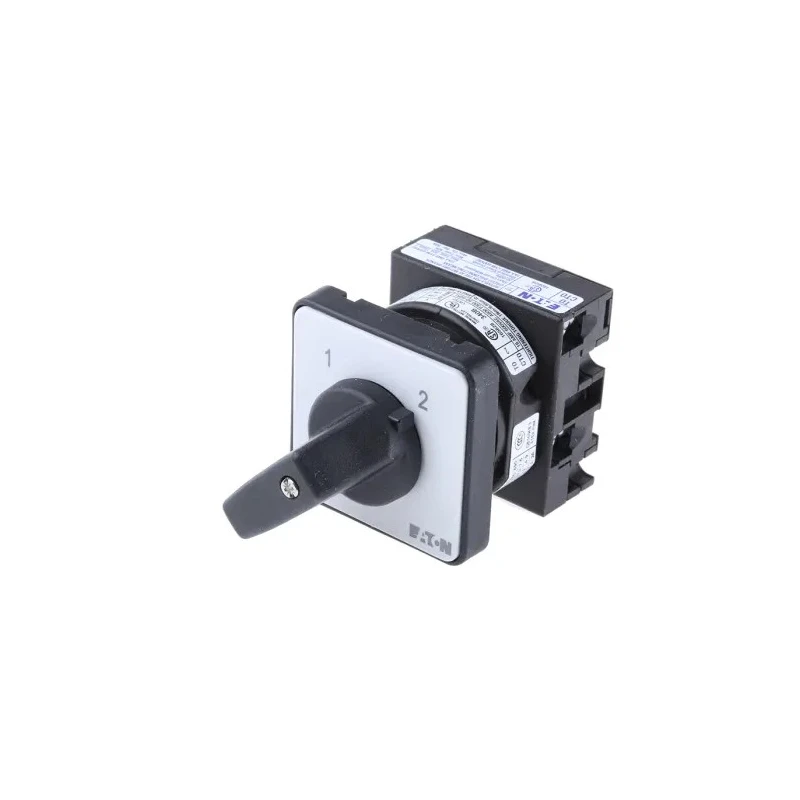

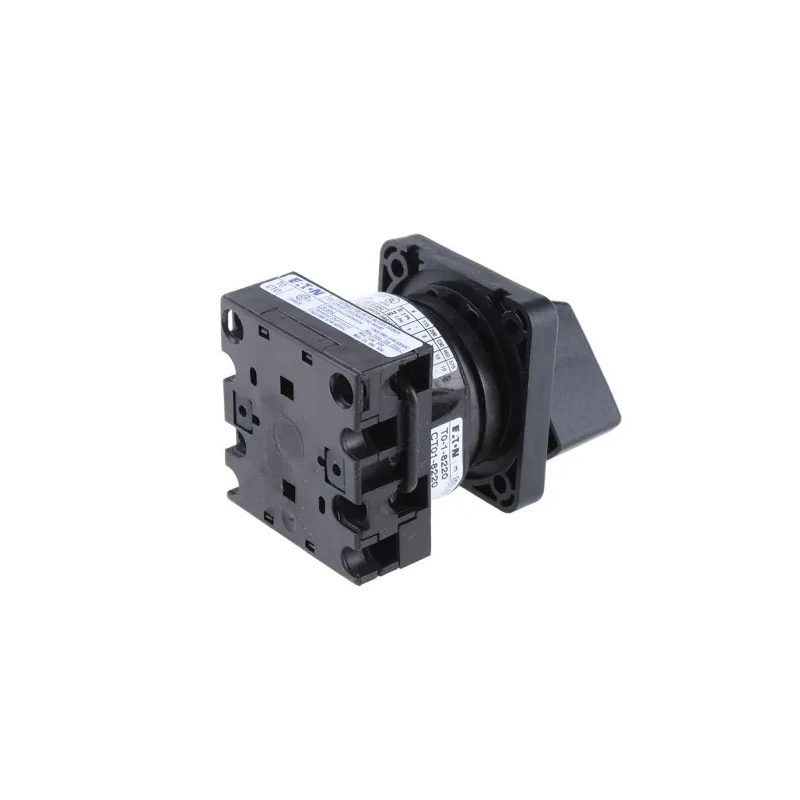

Eaton 78628225 T0-1-8220/E/EZ-P1(RS294-7771) 2 Position 90 ° Knob Actuator Cam Switch is engineered for switching power between two electrical circuits effectively. It features a panel-mounted rotary switch with a clear 2-position selection, allowing quick and safe operation with a thumb grip knob actuator. Rated for 20 A and 690 V AC, it ensures dependable electrical performance in industrial control systems.

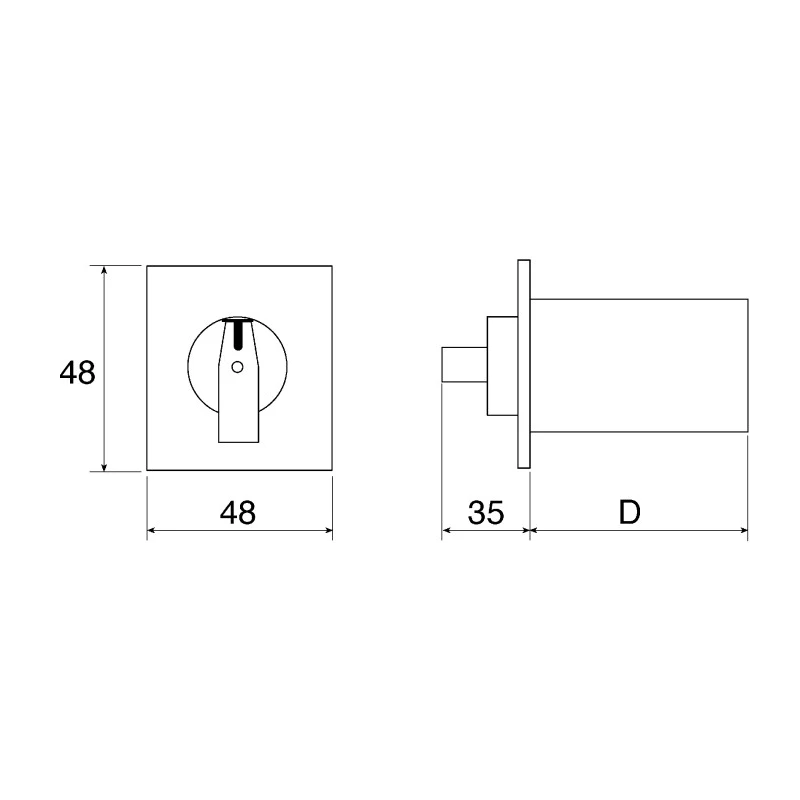

This cam switch supports single electrical phase and has one pole, making it suitable for variable-speed fans, lighting systems, and military communications equipment. Its robust construction includes a flush mount type and screw terminals for reliable electrical connections. The unit measures 48mm in width and length with a depth of 76mm, enabling compact installations in space-constrained panels.

The switch is rated IP65, providing dust-tight protection and resistance to water projected from a nozzle, making it ideal for demanding industrial environments. It operates effectively across a broad temperature range from -25°C to 50°C. Additionally, it complies with IECEx hazardous area certification and meets multiple international safety standards such as CE marking, CSA, UL, and VDE, ensuring high operational safety.

With a mechanical life expectancy of 10 million operations, this Eaton rotary switch guarantees long-term reliability. Its 90° angle of throw offers precise switching between circuit positions. This product is suitable for industrial, manufacturing, construction, electrical automation, and HVAC applications where robust and reliable power switching is essential.

Rated for 20 A contact current and 690 V AC operational voltage. Designed with a 2-position 90-degree angle of throw for precise switching. Flush mount type with screw terminal connection ensures easy installation. Durable knob actuator suitable for various industrial applications.

IP65 rated for dust-tight protection and water resistance. Operates reliably in temperature range from -25°C to 50°C. Supports one electrical phase and one pole configuration. Compact size: 48mm width, 48mm length, and 76mm depth.

Mechanical life expectancy of 10 million operations. Certified with IECEx hazardous area approval and multiple safety standards. Explore more Cam Switches and electrical automation components on EnvMart for your industrial and commercial needs.
