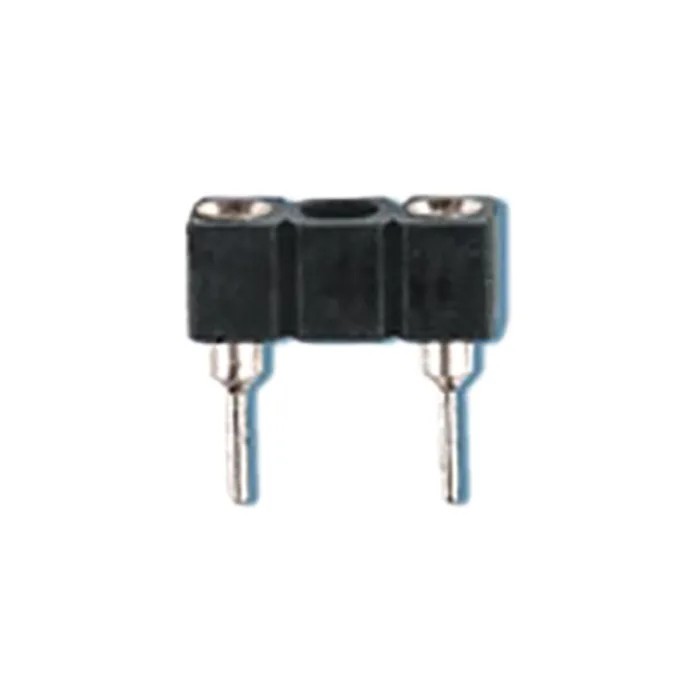

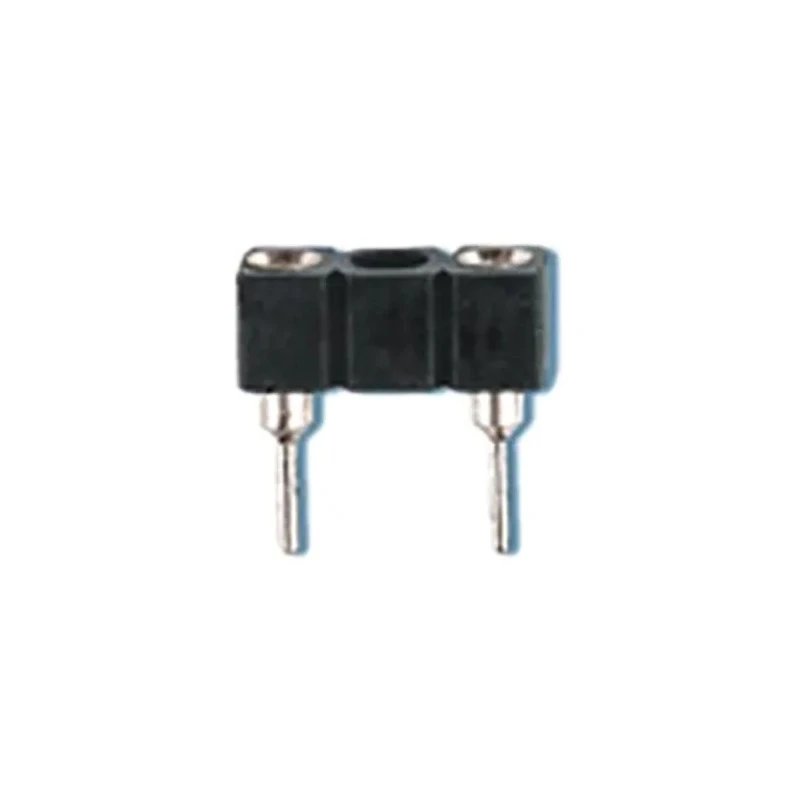

Littelfuse 6.3A PCB Mount Fuse Holder, 250V ac 56200001009
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Body Material | Black Thermoplastic |
| Dimensions | 19559 Std: 10 dia x 6.5 mm, 19560 LP: 9.5 dia x 5.6 mm |
| Contact Material | Copper Alloy |
| Series | 562 |
| Wire Diameter | 0.6mm |
| Terminal type | Pin |
| Standards/Approvals | UL, RoHS |
| Pin Spacing | 5.08mm |
| Fuse holder pitch | 5.08mm |
Key Features
- The fuse holder supports TR5 and TE5 series fuses with thermoplastic polyamide bodies.
- Black thermoplastic body construction ensures insulation and durability.
- Pin spacing is precisely 5.08 mm for PCB mounting compatibility.
- Copper alloy contact material provides excellent electrical conductivity.
- Fuse holder pitch is 5.08 mm with wire diameter of 0.6 mm for secure connections.
- Certified to UL and RoHS standards for safety and environmental compliance.
Product Description
Littelfuse 56200001009 PCB Mount Fuse Holder is engineered for industrial and electronic applications requiring secure fuse mounting solutions. Rated for 6.3A current and 250V ac voltage, this fuse holder offers reliable circuit protection in automation, manufacturing, and electrical equipment.
The body is made from black thermoplastic polyamide providing robust insulation and mechanical strength. It is designed to accommodate TR5 and TE5 series fuses featuring thermoplastic bodies, ensuring compatibility with standard fuse types.
Careful design includes a pin spacing of 5.08 mm aligning with common PCB layouts and copper alloy contacts for optimal electrical conductivity and durability in demanding environments. The wire diameter supported is 0.6 mm, creating secure electrical connections.
Dimensional details include two standard sizes: 10 mm diameter by 6.5 mm length for RS part 19559 Std, and 9.5 mm diameter by 5.6 mm length for RS part 19560 LP. These measurements help ensure the fuse holder fits appropriately within PCB-mounted fuse assemblies.
Compliance with UL and RoHS standards guarantees the fuse holder meets recognized safety and environmental regulations, making it suitable for industrial, laboratory, electrical maintenance, and commercial uses.
The fuse holder supports TR5 and TE5 series fuses with thermoplastic polyamide bodies. Black thermoplastic body construction ensures insulation and durability. Pin spacing is precisely 5.08 mm for PCB mounting compatibility.
Copper alloy contact material provides excellent electrical conductivity. Fuse holder pitch is 5.08 mm with wire diameter of 0.6 mm for secure connections. Dimensions include standard sizes 10 mm diameter x 6.5 mm length and 9.5 mm diameter x 5.6 mm length.
Certified to UL and RoHS standards for safety and environmental compliance.
This Littelfuse fuse holder is an optimal choice for electronics manufacturers, electrical system integrators, and maintenance professionals seeking dependable fuse mounting options that meet strict safety and quality standards. Browse Litttelfuse Fuse Holders and related components at EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This fuse holder is rated for 6.3A current and 250V AC voltage, providing reliable circuit protection for various applications.
It supports TR5 and TE5 series fuses that feature thermoplastic polyamide bodies, ensuring compatibility with standard fuse types.
The pin spacing for this fuse holder is precisely 5.08 mm, aligning with common PCB layouts for easy installation.
The body is made from black thermoplastic polyamide, while the contacts are constructed from copper alloy, providing good electrical conductivity.
The dimensions include two standard sizes: 10 mm diameter by 6.5 mm length for RS part 19559 Std, and 9.5 mm diameter by 5.6 mm length for RS part 19560 LP.
This model supports a wire diameter of 0.6 mm, which helps create secure electrical connections.
It is certified to UL and RoHS standards, ensuring it meets recognized safety and environmental regulations.
The terminal type for this model is pin, which is suitable for PCB mounting applications.
Yes, it is engineered for industrial and electronic applications requiring secure fuse mounting solutions, making it suitable for automation and manufacturing.
The fuse holder pitch is also 5.08 mm, ensuring compatibility with standard PCB layouts.
The country of origin for this fuse holder is China.
This fuse holder is suitable for use in electrical maintenance, commercial applications, and laboratory settings, providing dependable fuse mounting options.
