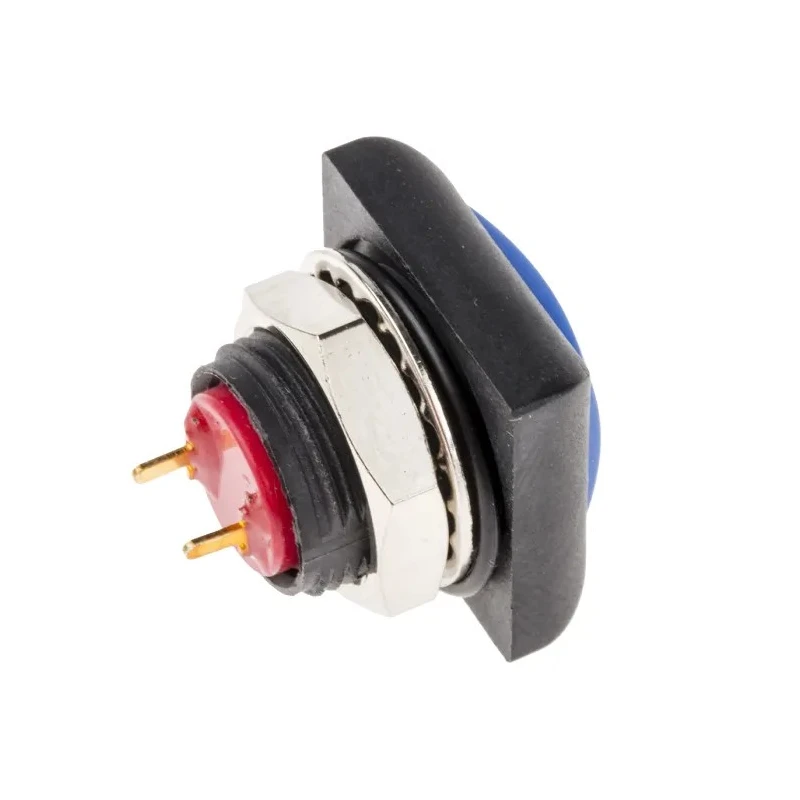

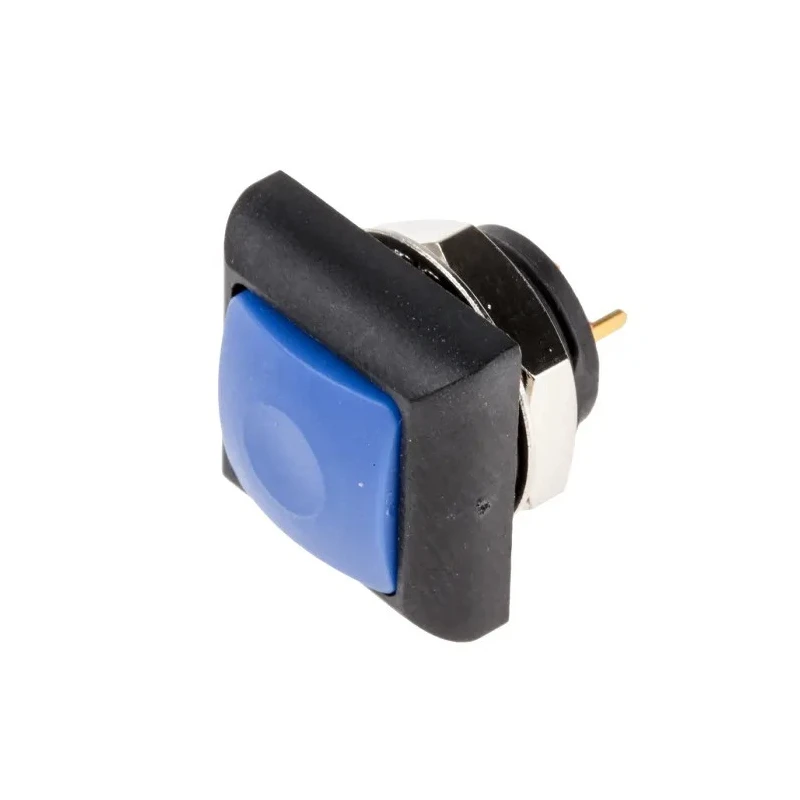

RS PRO Push Button Switch Momentary PCB Mount 13.6 mm Cutout SPST Blue LED IP67 50 V dc 32 V ac 820-7565

RS PRO 820-7565 Push Button Switch is a momentary electrical switch designed for PCB mounting applications. Featuring a 13.6 mm panel cutout size and a single-pole single-throw (SPST) contact configuration, this switch is optimized for precise control in electronic and electrical circuits.

The switch includes a blue LED actuator cap that provides visual indication while maintaining IP67 ingress protection, making it resistant to dust and water intrusion. This makes it ideal for industrial, automation, and control panel systems where environment protection is essential.

Operating at voltages up to 50 V dc and 32 V ac with a contact current of 400 mA, the switch supports low voltage control and signal switching tasks. The 2N to 5N operating force delivers dependable tactile feedback, ensuring accurate momentary contact switching.

The mechanical longevity of one million cycles highlights its robust build quality, promising reliability for extensive use in manufacturing, laboratory, and commercial equipment. Its maximum operating temperature of 85°C allows for stable performance in warm conditions or enclosed system designs.

The PCB pin terminals facilitate straightforward soldering with a maximum tolerated temperature of 350°C for 5 seconds, enabling efficient assembly on printed circuit boards. The switch's contact bounce time of 10 ms minimizes electrical noise, enhancing signal clarity in sensitive electronic applications.

Fully compliant with RoHS directives and lead-free, this product promotes environmental responsibility and safety standards compliance.

This push button switch is widely used in industrial automation, electrical control panels, HVAC control systems, manufacturing equipment, and other electronic devices requiring reliable momentary switch activation with visual LED status indication.

The switch features a blue LED actuator cap providing illumination control with an IP67 rating for dust and water resistance. It operates at a maximum contact voltage of 50 V dc and 32 V ac with a contact current of 400 mA.

The mechanical life of the switch is rated for one million cycles ensuring durable long-term use. Designed to withstand maximum operating temperatures up to 85°C, suitable for demanding electrical applications. The switch utilizes PCB pin terminals for easy mounting and soldering with a maximum soldering temperature of 350°C for 5 seconds.

A low operating force between 2N and 5N provides reliable tactile feedback during actuation. Contact bounce is minimized to 10 ms to improve electrical performance and reduce signal noise. Complies with RoHS and is lead-free, emphasizing environmental safety and compliance.
