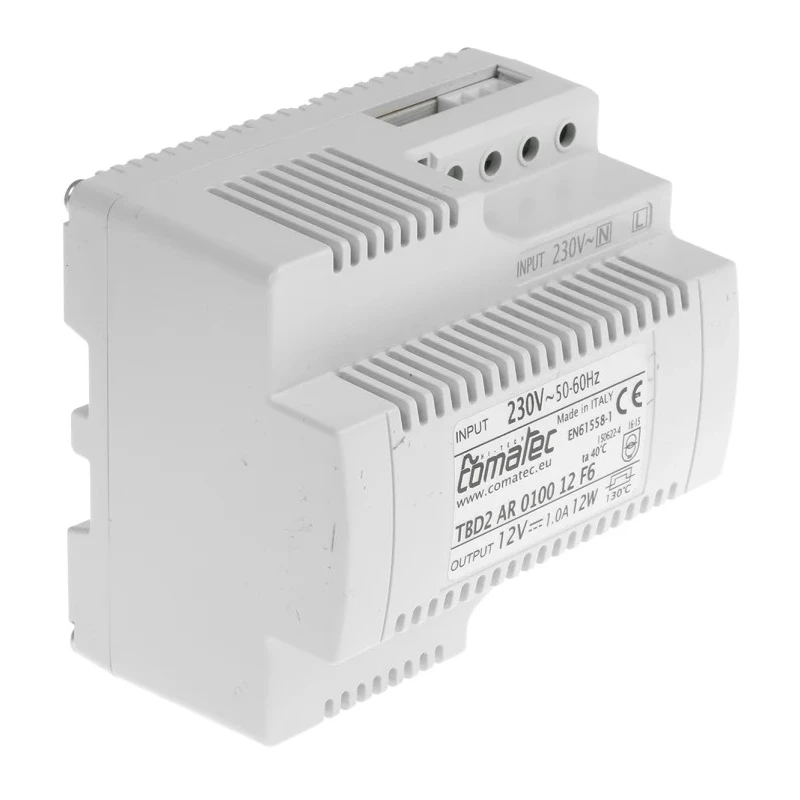

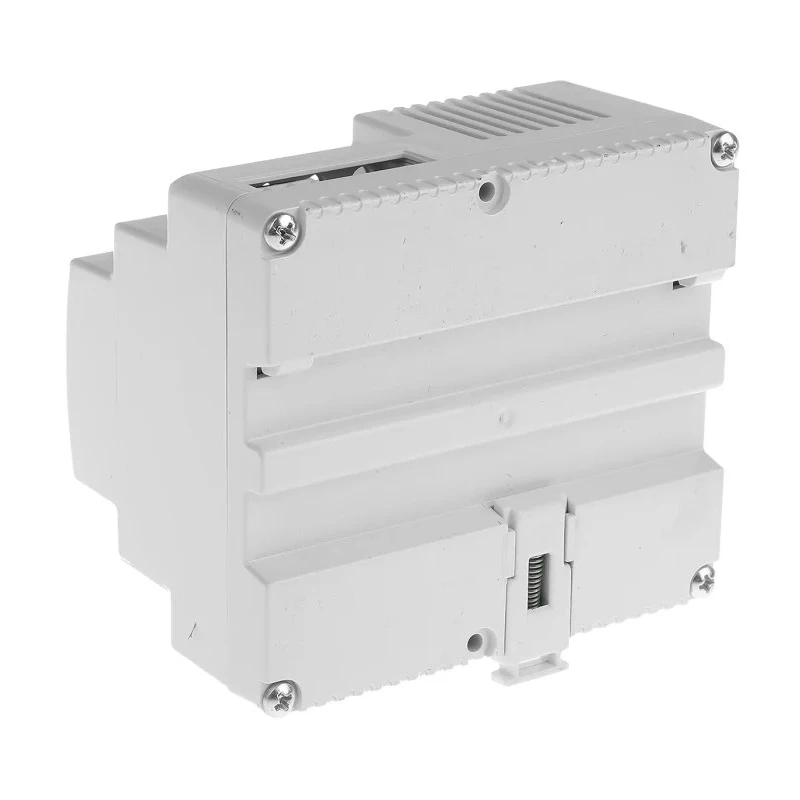

Comatec Linear DIN Rail Power Supply 230V AC Input 12V DC, 1 A Output 12 W TBD2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Comatec |
| Power | 12W |
| Efficiency | 30% |
| Height | 93mm |
| Model | TBD2 |
| Depth | 66.5mm |
| IP Rating | IP20 |
| Width | 93mm |
| Series | TBD2 |
| Output Current | 1A |
| Maximum Operating Temperature | 40°C |
| Sub Type | Linear |
| Minimum Operating Temperature | -5°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 230V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 12V dc |
Key Features
- The power supply features a linear regulated output for consistent performance.
- Compact design with dimensions of 93mm width, 93mm height, and 66.5mm depth.
- Suitable for home automation, security systems, and control cabinets.
- Includes single output with 1 A output current at 12 V DC voltage.
- Operates within an ambient temperature range of -5°C to 40°C.
- Equipped with screw terminal connections and DIN rail or chassis mounting options.
- Provides insulation class II safety standard, ideal for various industrial installations.
- Complies with EN 55024, EN 55032 (cl.B), EN 61000-3-2, EN 61000-3-3, EN 61558-1 standards and RoHS directive.
Product Description
Comatec TBD2 Linear DIN Rail Power Supply is designed to provide reliable and stable 12V DC output at 1 A current with a power rating of 12 W. It operates on a 230V AC input and is optimized for industrial and home automation purposes, including security systems and control cabinets.
The linear regulated design ensures minimal output noise, making it suitable for sensitive electronic applications requiring clean power delivery. Its compact and robust housing allows for easy installation on DIN rails or chassis with standard screw terminal connections for secure wiring.
This power supply supports insulation class II, enhancing operational safety by isolating the output from the input. The device operates efficiently within a temperature range of -5°C to 40°C, ensuring performance stability under various environmental conditions.
Compliance with EN 55024, EN 55032 (class B), EN 61000-3-2, EN 61000-3-3, and EN 61558-1 standards alongside RoHS certification confirms product quality and environmental safety.With an IP20 rating, it is designed for indoor use in dry environments, protecting against solid objects larger than 12mm but without water protection features.
The power supply features a linear regulated output for consistent performance. Compact design with dimensions of 93mm width, 93mm height, and 66.5mm depth. Suitable for home automation, security systems, and control cabinets.
Includes single output with 1 A output current at 12 V DC voltage. Operates within an ambient temperature range of -5°C to 40°C. Equipped with screw terminal connections and DIN rail or chassis mounting options. Provides insulation class II safety standard, ideal for various industrial installations.
Complies with EN 55024, EN 55032 (cl.B), EN 61000-3-2, EN 61000-3-3, EN 61558-1 standards and RoHS directive. Design rated for IP20 ingress protection, suitable for dry indoor environments. Efficiency rating of 30%, optimized for low power consumption.
This Comatec power supply is ideal for applications in industrial manufacturing, building automation, water treatment control systems, and HVAC control panels where a dependable 12V DC power source is required for control electronics and sensors.
Explore more power supplies and electronics components on EnvMart for comprehensive industrial automation solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a single output with a current of 1 A at a voltage of 12 V DC, resulting in a power rating of 12 W.
The unit has a compact design with dimensions of 93 mm in width, 93 mm in height, and 66.5 mm in depth.
It operates on a maximum input voltage of 230V AC.
The device operates efficiently within an ambient temperature range of -5°C to 40°C.
It can be mounted on DIN rails or chassis, and it includes screw terminal connections for secure wiring.
It complies with several standards including EN 55024, EN 55032 (class B), EN 61000-3-2, EN 61000-3-3, and EN 61558-1, along with RoHS directive.
The efficiency rating is 30%, which is optimized for low power consumption.
It has an IP20 rating, indicating it is suitable for indoor use in dry environments.
It is suitable for home automation, security systems, control cabinets, industrial manufacturing, building automation, and HVAC control panels.
It provides insulation class II safety standard, enhancing operational safety by isolating the output from the input.
The maximum output voltage is 12V DC.
