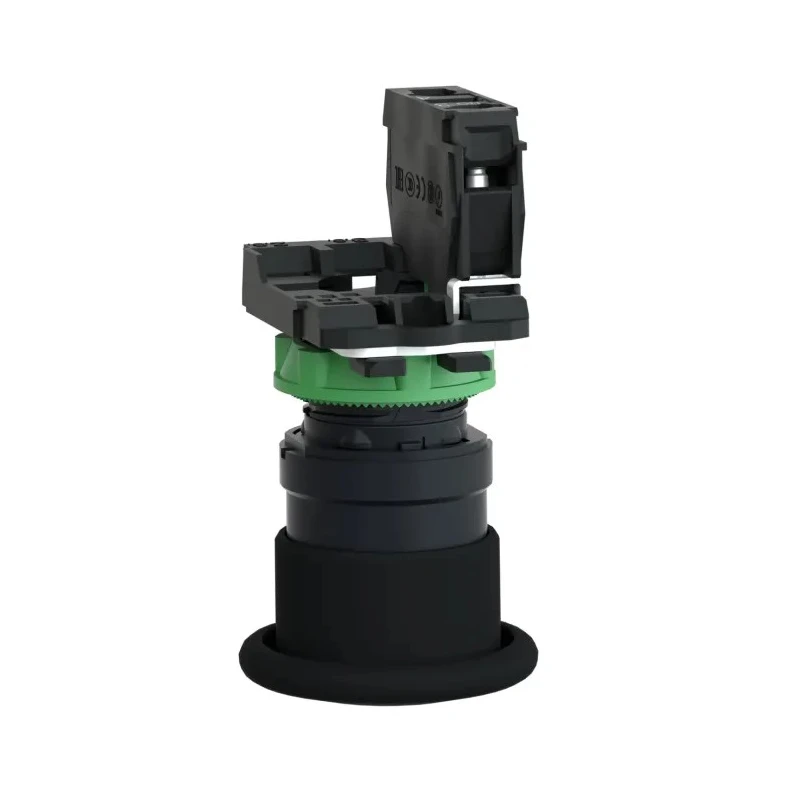

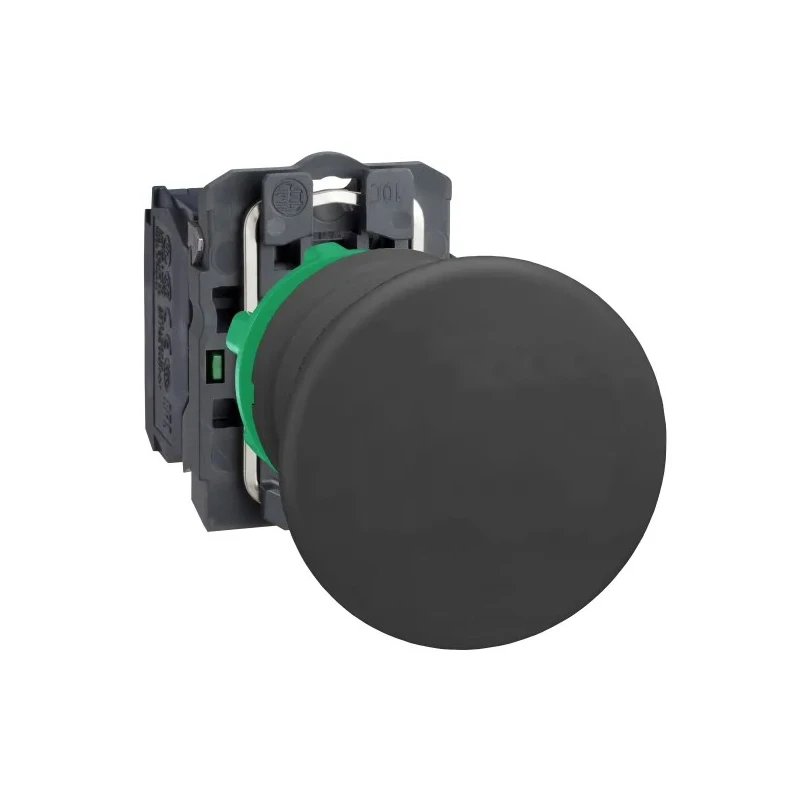

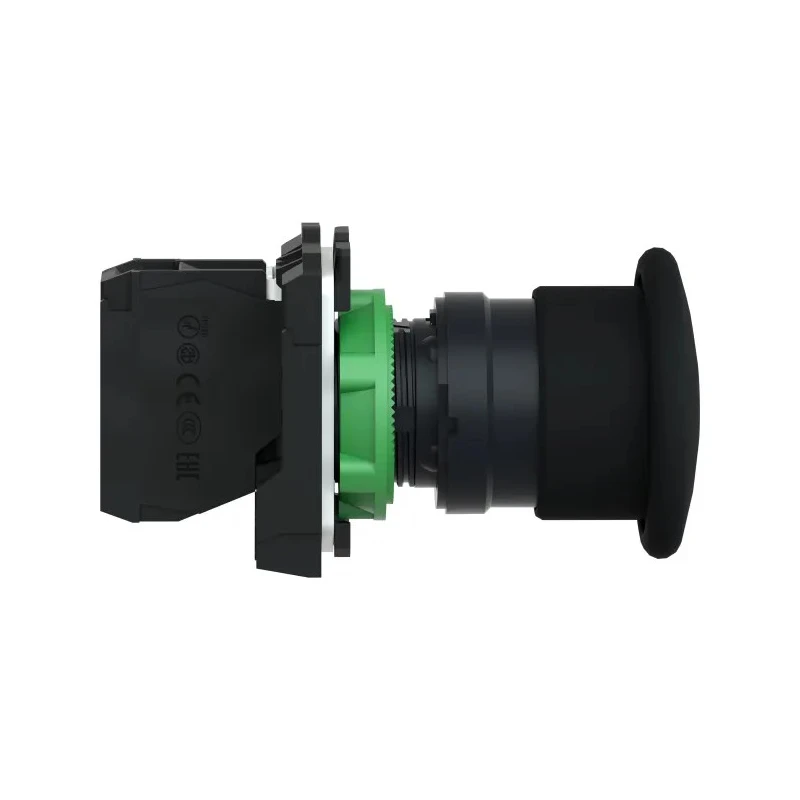

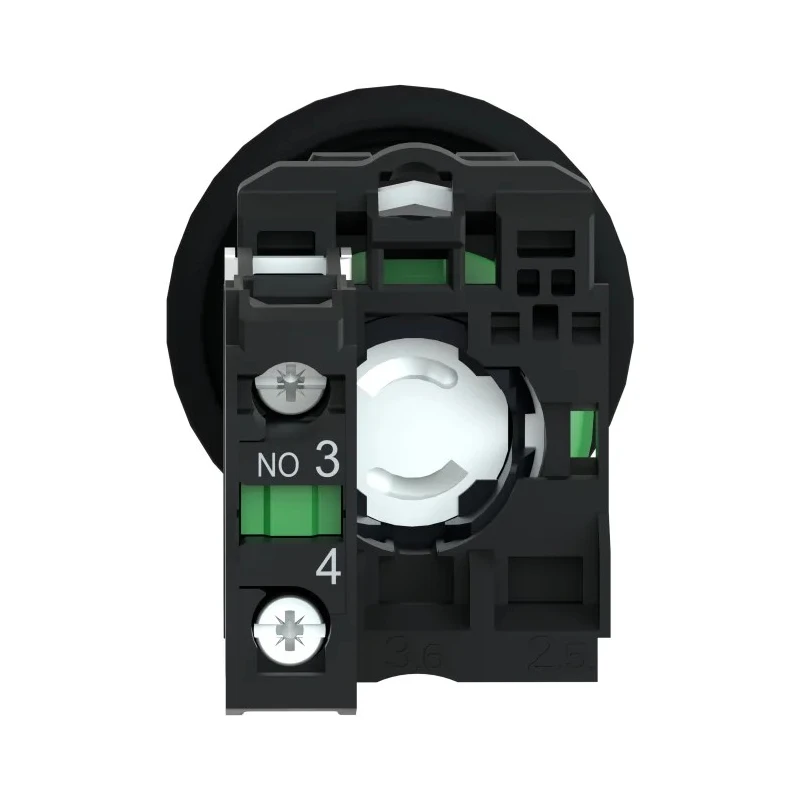

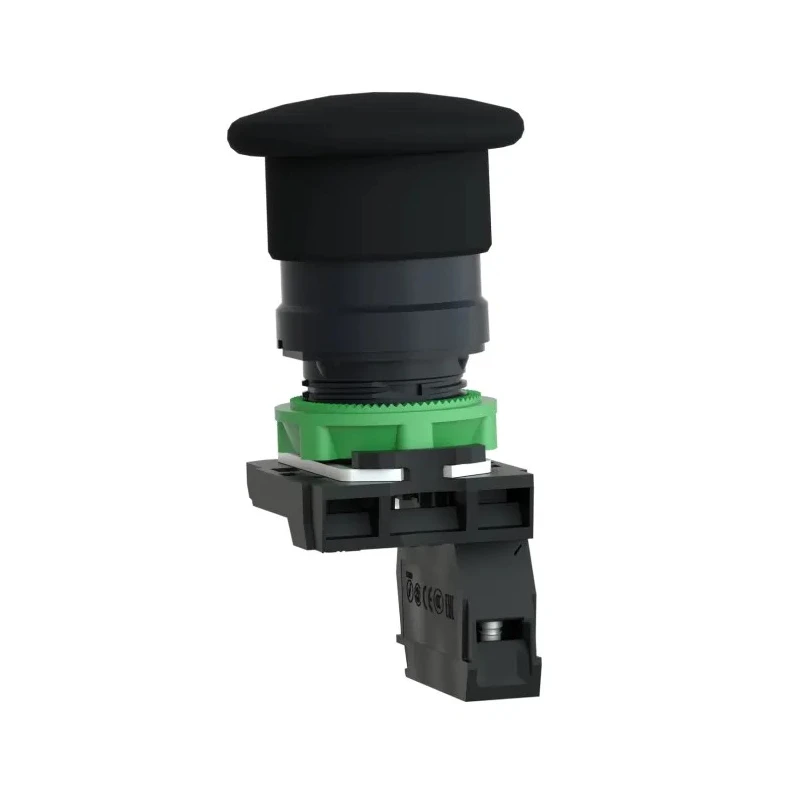

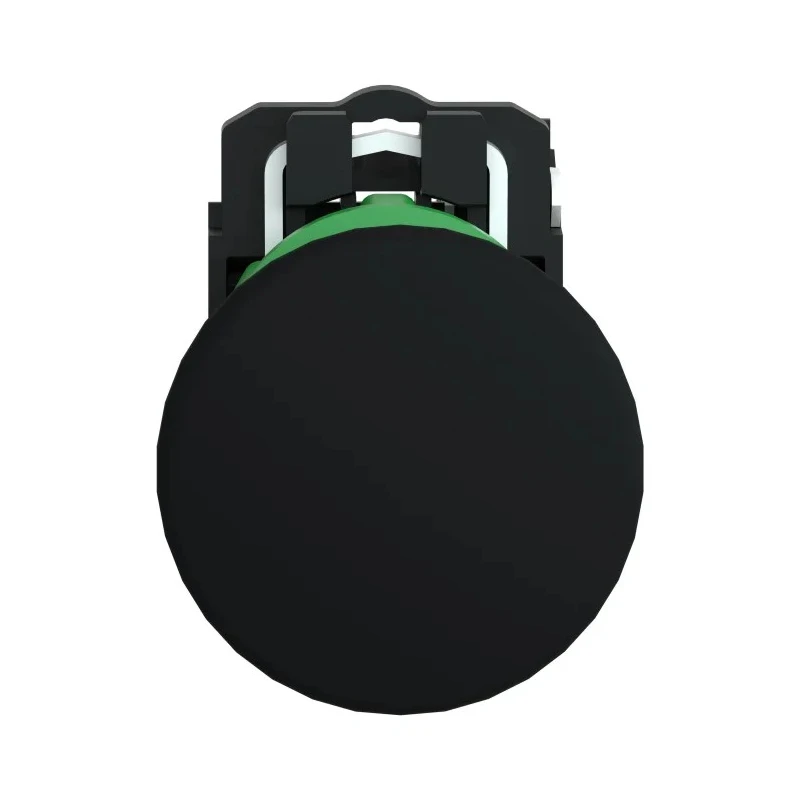

Schneider Electric Harmony XB5 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout SPST Black LED IP65 XB5AC21
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Height | 43mm |
| Length | 82mm |
| Model | XB5AC21 |
| IP Rating | IP65, IP69, IP69K |
| Width | 40mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect, Screw |
| LED Colour | Black |
| Switch Operation | Spring Return |
| Actuator Colour | Black |
| Contact DC Voltage | 600V |
| Actuator Style | Mushroom |
| Switch Contact Current | 12A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Designed with a robust mushroom actuator for easy manual reset after operation.
- Offers SPST contact configuration suitable for simple on/off control with a 12A contact switching rating.
- Panel mount with screw-clamp and quick connect terminals supporting up to 2x1.5mm² conductors.
- Rated for voltages up to 600V AC/DC and wide operating temperatures from -25°C to 70°C.
- Provides ingress protection rated IP65, IP69, and IP69K for resistance against dust and washdown.
- Meets international standards including IEC 60947 series, UL 508, and CSA C22.2 No 14 for durability and safety.
- Compact dimensions of 43mm height, 82mm length, and 40mm width for flexible panel integration.
- Suitable for emergency stop functions, food processing environments, and motor control panels with 22mm cutouts.
Product Description
Schneider Electric XB5AC21 Harmony XB5 Series Push Button Switch is a high-quality industrial control device designed for panel mounting with a 22 mm cutout. Featuring a spring return mushroom-style actuator and an SPST contact configuration, this switch is engineered to provide reliable on/off operation for various industrial machinery and control panels.
The switch carries a 12A contact rating, capable of handling higher load currents with ease. It operates over a wide temperature range from -25°C to 70°C, ensuring reliability in diverse environmental conditions. The device is rated with IP65, IP69, and IP69K ingress protection classifications, making it suitable for use in washdown and dusty environments, such as food processing and industrial manufacturing plants.
The terminal connections are designed with screw-clamp and quick connect options, accepting conductor sizes up to 2x1.5mm², enhancing installation flexibility. With compact dimensions of 43mm height, 82mm length, and 40mm width, the switch fits conveniently into control panels requiring 22mm cutouts.
Spring-return mushroom actuator enables quick and easy manual reset after operation. SPST contact arrangement ensures simple and effective on/off switching. Screw-clamp terminals accommodate multiple conductor sizes for versatile wiring.
Rated 12A for handling higher contact currents safely. High ingress protection of IP65, IP69, and IP69K prevents damage from dust and liquids. Wide temperature operating range ensures dependable performance in harsh conditions.
Compliance with IEC 60947, UL 508, CSA, and JIS standards confirms international quality. Ideal for emergency stop buttons, motor controls, and food industry applications requiring hygienic washdown.
Manufactured in the Czech Republic, this Push Button Switch offers durability and performance for critical industrial control systems. It is repairable by the end user, adding to its sustainability and lifecycle benefits.
Explore EnvMart’s selection of Schneider Electric products for reliable industrial automation components and electrical equipment trusted worldwide.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole Single Throw) contact configuration, suitable for simple on/off control.
The switch has compact dimensions of 43mm in height, 82mm in length, and 40mm in width, designed for panel integration with a 22 mm cutout.
It has a contact current rating of 12A, allowing it to handle higher load currents safely.
This push button switch is rated IP65, IP69, and IP69K, providing resistance against dust and washdown conditions.
The operating temperature range is from -25°C to 70°C, ensuring reliable performance in various environmental conditions.
It is designed for panel mounting and fits into a 22 mm cutout, with screw-clamp and quick connect terminals for installation.
This model features a spring return mushroom-style actuator, which allows for easy manual reset after operation.
The switch is equipped with screw-clamp and quick connect terminals, accommodating conductor sizes up to 2x1.5mm².
It meets international standards including IEC 60947 series, UL 508, and CSA C22.2 No 14 for safety and durability.
This model is manufactured in the Czech Republic, ensuring quality and performance in industrial applications.
It is suitable for emergency stop functions, food processing environments, and motor control panels, among other industrial applications.
The actuator of this push button switch is black in color, complementing its design for various applications.
