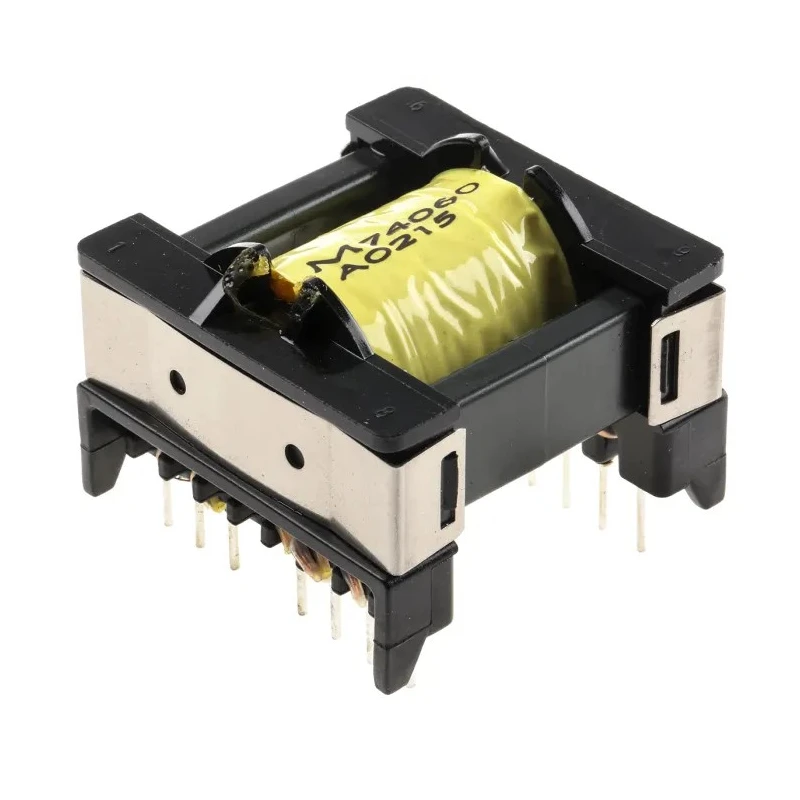

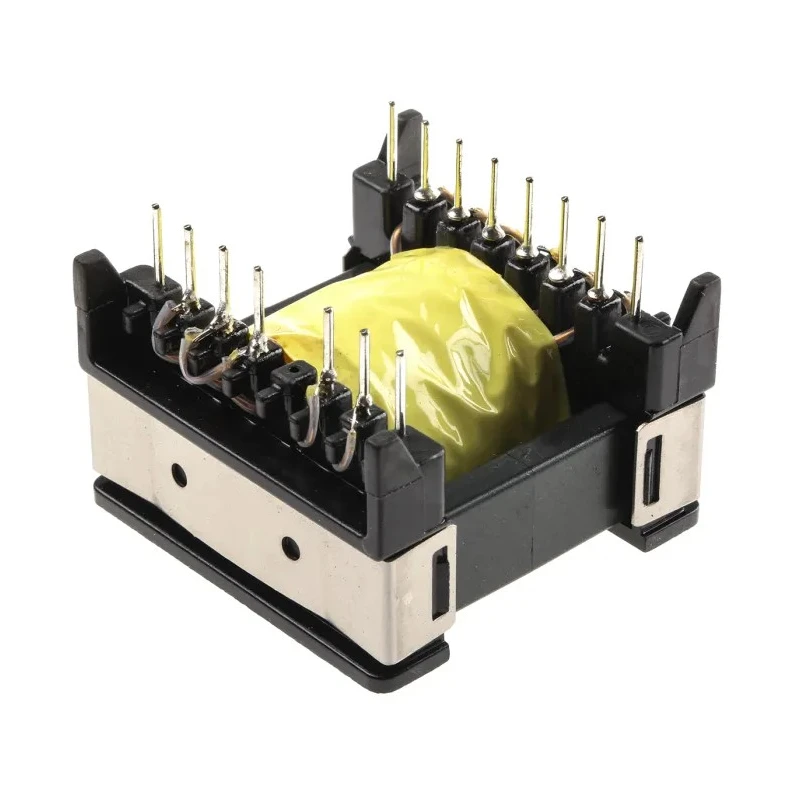

Myrra 2 Output SMPS Transformer 120 W Power ETD 39 Series 265 V AC Primary, 15.5 V DC Secondary, 440 μH Inductance 74060

Myrra 74060 2 Output SMPS Transformer is a high-performance switch mode power supply transformer engineered for industrial electronic applications requiring reliable dual outputs and robust insulation. It provides a power output of 120 W with a primary voltage rating of 265 V AC and secondary voltage of 15.5 V DC, capable of supplying up to 4 A current per secondary output.

The transformer belongs to the ETD 39 series and is fabricated with reinforced insulation meeting UL94-V0 standards. It supports primary and auxiliary insulation voltage ratings of ≥4000 V and ≥1500 V respectively, and creepage distances between primary and secondary of at least 8 mm to ensure electrical safety and operational stability.

Secondary outputs can be connected in series or parallel, allowing flexible voltage and current configurations tailored to specific power supply designs. The component complies with internationally recognized standards CEI61558, CEI335, and CEI950, underscoring its suitability for demanding industrial environments.

This SMPS transformer operates efficiently within a frequency range from 70 kHz to 100 kHz and supports isolation voltage up to 3750 V AC. Its robust construction includes an open frame laminated design optimized for PCB mounting, facilitating seamless integration into electronic equipment.

Operating temperature is rated up to 50°C ensuring dependable performance in varied ambient conditions. The transformer is produced in France, reflecting high manufacturing quality.

Provides 120 watt power capacity for industrial electronic power supply needs. Features two independent outputs with 4 A secondary current for flexible power distribution. Inductance rating of 440 microhenries ensures stable electrical performance.

Designed for maximum operating temperature of 50°C for continuous duty reliability. Isolation voltage of 3750 V AC delivers strong insulation for safety and compliance. Certified to standards CEI61558, CEI335, and CEI950 for high quality and safety assurance.

Compact ETD 39 series format suitable for PCB mounting in industrial power supplies. Primary voltage rating of 265 V AC with a minimum operating frequency of 70 kHz and maximum frequency of 100 kHz. Constructed using reinforced insulation materials compliant with UL94-V0 flame retardant standards.

Secondary windings configurable in series or parallel to adapt to diverse voltage and current requirements.

This transformer is ideal for industrial, manufacturing, electronic power supply, and laboratory applications requiring reliable and efficient switch mode power supply components. Explore the Electronics & Electricals category for more SMPS Transformers and components on EnvMart.
