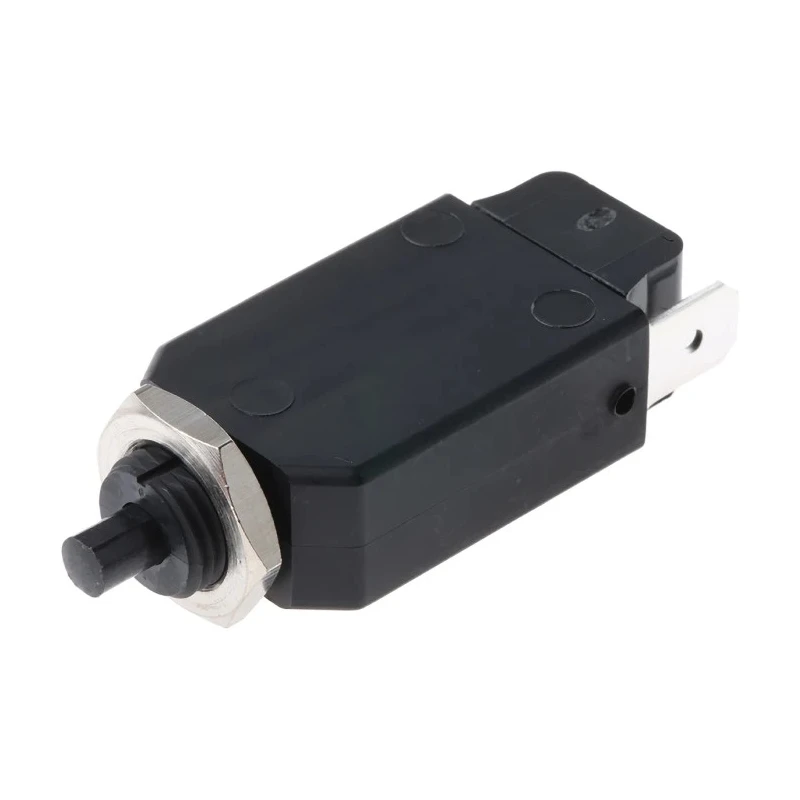

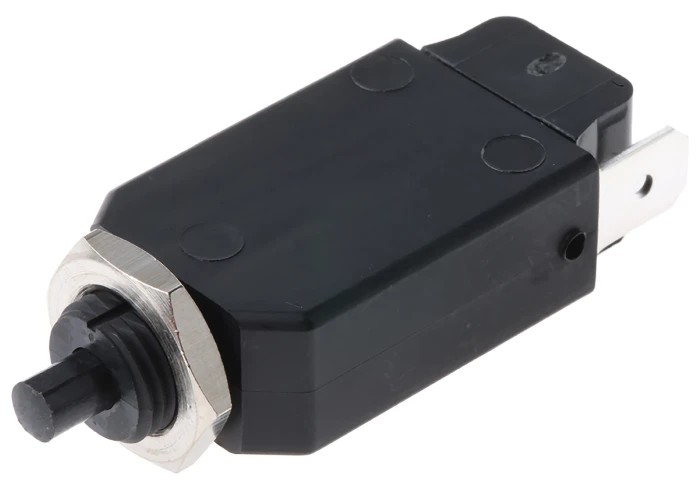

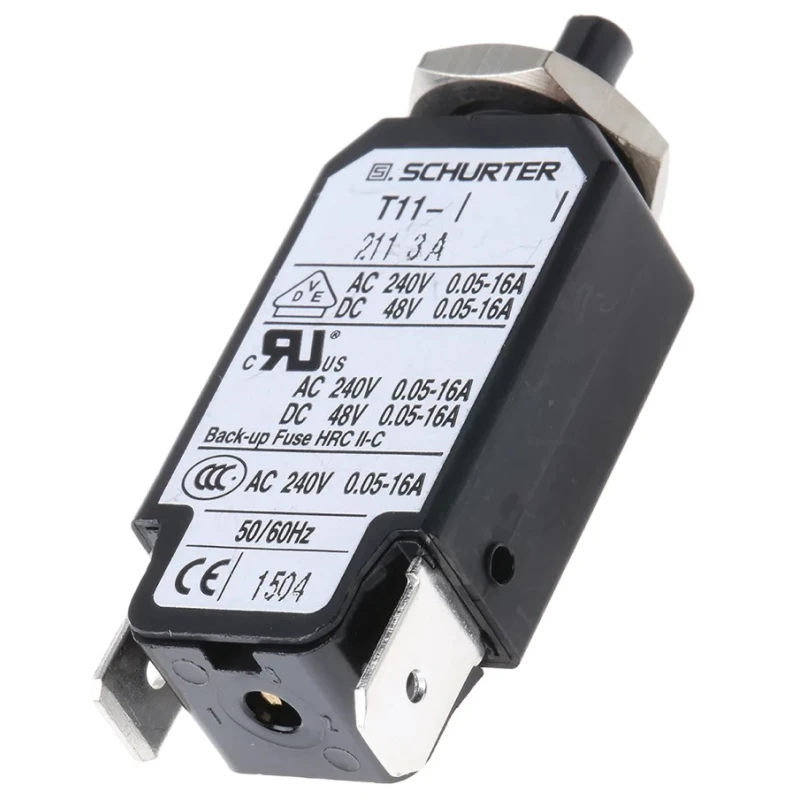

Schurter Thermal Circuit Breaker T11 Series 3A Current Rating 240V AC, 1-Pole Panel Mount 4400.001

Name: Schurter Thermal Circuit Breaker T11 Series 3A Current Rating 240V AC, 1-Pole Panel Mount 4400.001
Brand: Schurter
SKU: 323186
Price: 10.69 USD
Availability: InStock



Category Thermal Circuit Breaker Brand Schurter Condition New

Specifications

Country of Origin	Czech Republic
Range	T11
Brand	Schurter
Height	50.2mm
Model	4400.001
Width	15.2mm
Mount Type	Panel
Current Rating	3A
Series	T11
Terminal type	Threaded
Breaking Capacity	6.5A
Number of Poles	1
Standards/Approvals	RoHS
Rated AC Voltage	240V ac
Rated DC Voltage	48V dc
Tripping Mechanism	Thermal
Reset Actuator Type	Push Button
Mount Hole Size	13.6 mm
Break Time	Medium

Key Features

Compact design with 15.2mm width and 50.2mm height for space-efficient installations.
Features a thermal tripping mechanism activated by a bimetallic element.
Equipped with push button reset actuator for easy manual reset after tripping.
Threaded terminal type enables secure electrical connections.
Medium break time rating with a breaking capacity of 6.5A AC ensures reliable protection.
Rated for 240V AC and 48V DC voltages to cover various application needs.
Snap-in panel mount installation simplifies mounting and replacement processes.
High insulation resistance of over 100MΩ ensuring safety and durability.

Product Description

Schurter 4400.001 Thermal Circuit Breaker T11 Series is a compact, snap-in 1-pole device offering positively trip-free release. It is designed to protect circuits with a 3A current rating at a rated AC voltage of 240V and rated DC voltage of 48V. The breaker is suitable for panel mount applications facilitated by its snap-in mounting design and 13.6mm mounting hole size.

The breaker uses a thermal tripping mechanism triggered via a bimetallic element, providing reliable circuit protection that is largely insensitive to short start-up surges. It features a push button reset actuator for convenient manual resetting. The terminals are threaded for secure electrical connections.

Its compact dimensions (15.2mm width and 50.2mm height) enable installation in tight spaces. The medium break time and a breaking capacity of 6.5A AC ensure effective fault clearance. This model offers high insulation resistance above 100MΩ, enhancing operational safety and reliability.

Applications for this thermal circuit breaker include household equipment, industrial applications, power tools, uninterruptible power supplies, and chargers. The product meets RoHS compliance requirements and is manufactured in the Czech Republic, reflecting high manufacturing standards.

Compact 1-pole Thermal Circuit Breaker for circuit protection. Snap-in panel mount design for easy installation and replacement. Thermal tripping mechanism using bimetallic element. Push button reset actuator for manual reset.

Threaded terminals for secure connections. Rated for 3A current at 240V AC and 48V DC. Medium break time and 6.5A breaking capacity ensures safety. High insulation resistance over 100MΩ. RoHS compliant and CE certified.

This Schurter thermal breaker series offers reliable, compact protection solutions for industrial, commercial, and household electrical applications. Explore more products in the Circuit Breakers category at EnvMart for a wide range of electrical protection devices.
