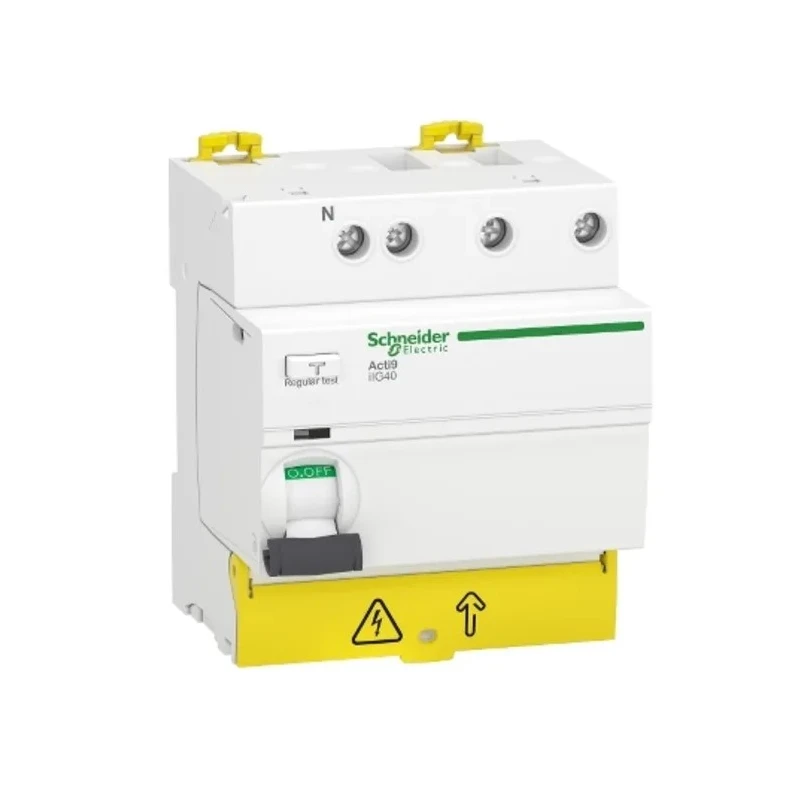

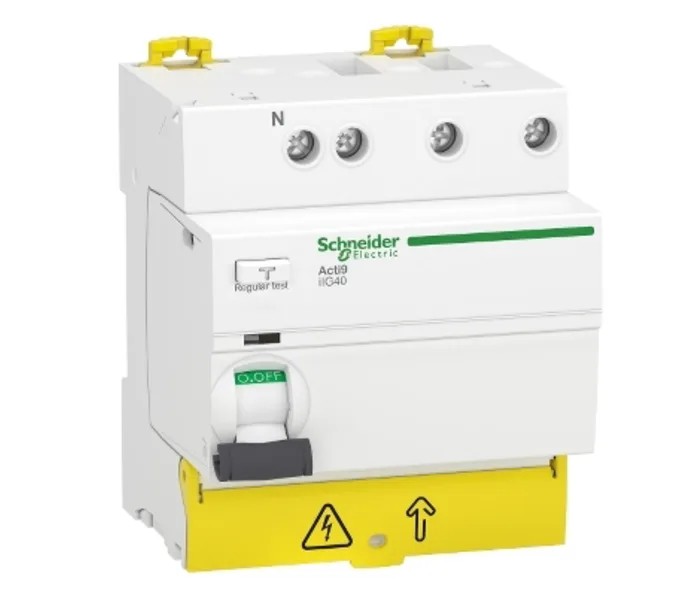

Schneider Electric Acti9 iIG40 Series Residual Current Circuit Breaker 25A 3+N-Pole 30mA Type AC 1500A 230V A9R67725

Schneider Electric A9R67725 is a Residual Current Circuit Breaker from the Acti9 iIG40 series designed for robust and precise earth-leakage protection in both industrial and residential electric installations. It features a current rating of 25A and supports 3+N poles, enabling effective protection across multiple circuits.

This RCCB provides instantaneous trip response with a sensitivity of 30 mA and Type AC tripping characteristics, making it ideal for detecting AC earth leakage faults. The breaker has a breaking capacity of 1500A at 230V AC to handle high fault currents safely.

The device is engineered for convenient DIN rail mounting and features screw terminal connections for secure wiring. It is equipped with a toggle switch actuator that provides clear ON/OFF operation status and includes a trip indicator for easy fault identification.

Compact installation dimensions of 85mm height, 74mm depth, and 36mm width allow for space-efficient integration within electrical panels. The design maintains high durability with electrical endurance of 20,000 operating cycles and an impulse withstand voltage rating of 4 kV.

Its operational temperature range from -25°C to 70°C and 95% relative humidity tolerance ensure reliable performance under varied environmental conditions. Additionally, the padlockable feature adds an extra layer of security during maintenance or downtime.

Compliant with EN/IEC 61008-2-1 standards, the Schneider Electric Acti9 iIG40 RCCB ensures safety and regulatory adherence. It is manufactured in Spain, reflecting high-quality European standards.

Provides instantaneous earth-leakage protection with a trip sensitivity of 30 mA. Features Type AC tripping characteristics suitable for AC earth leakage detection. Mounts easily on DIN rail with screw terminal connections.

Compact dimensions: 85mm height, 74mm depth, 36mm width. Breaking capacity of 1500A ensures high fault current protection. Toggle switch actuator with ON/OFF and trip indication for easy operation. Complies with EN/IEC 61008-2-1 standards for RCCBs.

Operates reliably in ambient temperatures from -25°C to 70°C. Padlockable design enhances operational safety. Manufactured in Spain as part of the Schneider Electric Acti9 iIG40 series.

This Residual Current Circuit Breaker is ideal for electrical protection in industrial automation, residential distribution boards, manufacturing plants, and commercial electrical systems. It contributes to the safety of electrical installations by preventing electric shock and fire risks caused by earth leakage currents.

EnvMart offers this high-performance Schneider Electric Acti9 iIG40 series RCCB with assured quality and compliance. Explore our full range of electrical protection devices and circuit breakers to meet your industrial and residential requirements.
