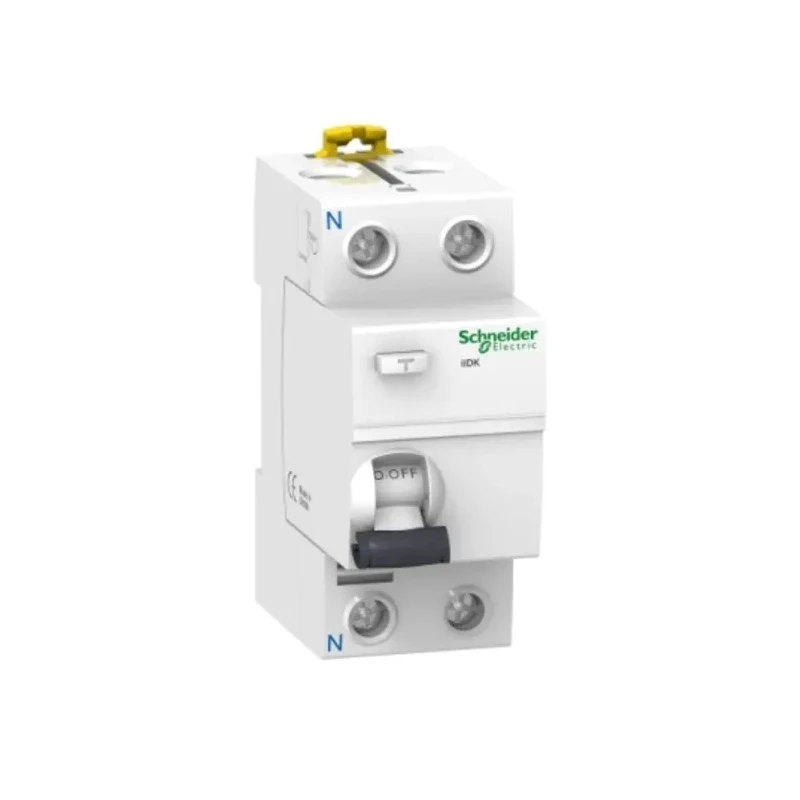

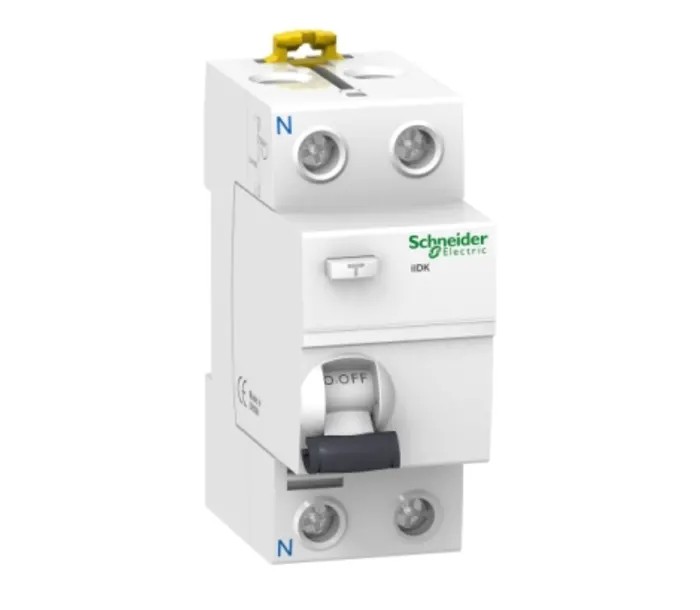

Schneider Electric Residual Current Circuit Breaker 25A 2-Pole 300 mA Type AC 500 A 240V ac Acti9

Schneider Electric Acti9 A9R56225 Residual Current Circuit Breaker (RCCB) offers robust instantaneous earth leakage protection with a trip sensitivity of 300 mA. Designed for both residential and industrial use, this 2-pole RCCB rated at 25A is engineered to provide reliable protection against electrical faults and leakage currents.

This circuit breaker features a toggle switch reset actuator with clear ON/OFF and trip indicators, ensuring easy operation and status monitoring. Its compact form factor measures 85 mm in height, 69 mm in depth, and 36 mm in width, making it suitable for standard DIN rail mounting inside electrical panels.

Meeting the stringent EN/IEC 61008-1 standards, the device provides reliable switching with a breaking capacity of 500 A, capable of handling short-circuit conditions efficiently. The screw-type terminals ensure secure and stable electrical connections, contributing to overall system safety and longevity.

Designed to operate efficiently at rated AC voltage of 240V, the Schneider Electric Acti9 RCCB also boasts an instantaneous break time for rapid response to detected earth leakage currents. Its AC earth leakage protection type suits installations requiring Type AC sensitivity characteristics.

Additional product features include a high resistance to impulse voltage up to 4 kV, electrical durability of up to 20,000 cycles, and an operating ambient air temperature range from -25°C to 70°C, which ensures performance in a wide variety of environmental conditions. The device is also padlockable for enhanced safety and comes from Schneider Electric's Green premium class range underlining commitment to environmental sustainability.

Current rating of 25 amperes for effective circuit protection. Two-pole configuration ensuring comprehensive electrical isolation. Trip sensitivity set at 300 milliamperes for instantaneous protection. Type AC tripping characteristics compliant with industry standards.

DIN rail mount type for easy installation in distribution boards. Compliant with EN/IEC 61008-1 standards ensuring quality and safety. Screw terminal type allows secure and reliable connections. Breaking capacity rated at 500 amperes to handle fault conditions.

Compact dimensions of 85mm height, 69mm depth, and 36mm width. Toggle switch reset actuator with ON/OFF and trip indicator for user convenience.

This RCCB is ideal for industrial, residential, and commercial electrical panels requiring reliable earth leakage protection. It ensures safety by reducing the risk of electric shock hazards and electrical fires.
