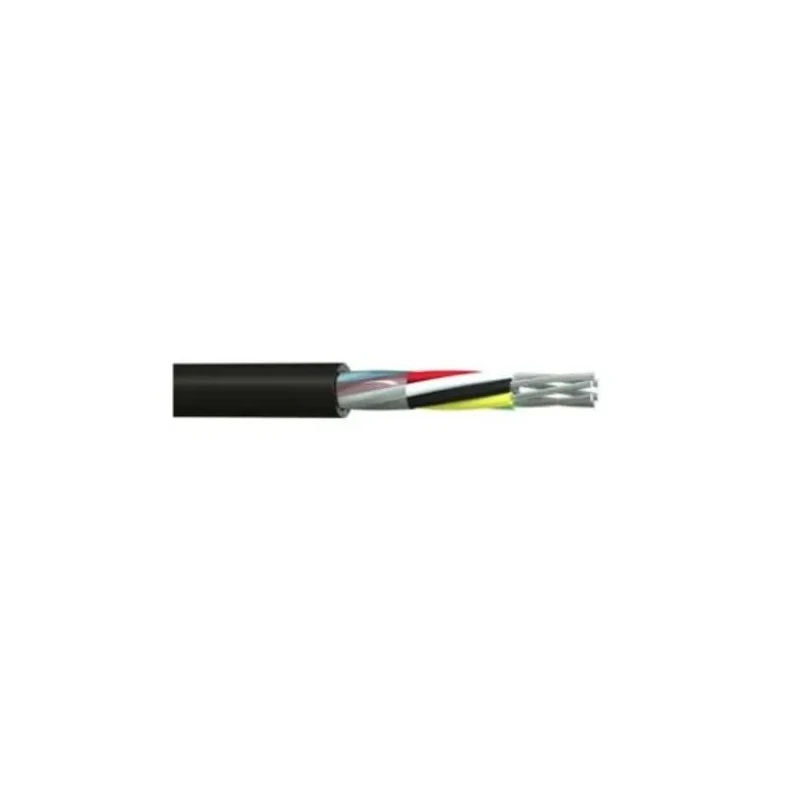

RS PRO Multi-Core Industrial Cable, DEF STAN Series, 20 Cores, 0.22mm² Tin Copper Stranded Conductors, Unscreened 236-9249
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 236-9249 |
| Cable Length | 100m |
| Series | DEF STAN |
| Outside diameter | 11mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 20 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EN, EAC, CE |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.22mm² |
| 4 cores - RS stock no | 236-9261 |
| 6 cores - RS stock no | 236-9267 |
| 8 cores - RS stock no | 236-9271 |
| 12 cores - RS stock no | 236-9246 |
| 20 cores - RS stock no | 236-9251 |
| 36 cores - RS stock no | 236-9256 |
| 2 cores - RS stock no | 236-9255 |
| 3 cores - RS stock no | 236-9259 |
Key Features
- This cable supports operating temperatures from -15°C to 70°C.
- The cable is flame retardant and complies with EN, EAC, and CE standards.
- It offers a 440 V rating for frequencies up to 1.6 KHz suitable for low-frequency industrial uses.
- Unscreened design provides a cost-effective and efficient cable solution.
- The sturdy PVC sheath protects the conductors and enhances cable durability.
- Armoured construction adds mechanical protection for industrial environments.
- 20 core multi-core construction helps organize multiple circuits effectively.
- Comes in 100 meter length for versatile industrial installations.
Product Description
RS PRO 236-9249 is a high-performance multi-core industrial cable designed for robust electrical applications requiring multiple conductors in a single cable. This DEF STAN series cable contains 20 cores of 0.22mm² tin copper stranded conductors housed within a durable black polyvinyl chloride (PVC) sheath. The cable features an armoured and unscreened design, providing both mechanical protection and cost-efficiency for suitable industrial applications.
Operating in temperatures ranging from -15°C to 70°C, this cable supports a voltage rating of 440 V at frequencies up to 1.6 KHz. Its flame retardant properties ensure safety in demanding environments. The unscreened cable type offers an economical solution for low-frequency use cases where electromagnetic interference is minimal or manageable.
The cable's construction includes a PVC sheath that delivers excellent durability and protection against physical damage, making it highly reliable for long-term industrial installations. The multiple color-coded cores facilitate safe and organized wiring within machines, DIN-Rail terminals, conveyor belts, and complex control panels.
This 100 meter length cable caters to extensive electrical routing needs in manufacturing plants, entertainment systems, factory automation, and machine control systems. The armoured sheath provides extra resistance to mechanical stress, enhancing the cable's lifespan in industrial conditions.
20 cores in multi-core configuration for complex electrical systems. Tin copper stranded conductors optimize conductivity and flexibility. Unscreened for cost-effectiveness in suitable low-frequency scenarios. Durable PVC sheath and armoured protection ensure longevity and safety.
Conforms to EN, EAC, CE standards guaranteeing quality and compliance. Temperature range from -15°C to 70°C adapts to varied environments. Flame retardant fire behavior enhances workplace safety. Ideal for automation, control equipment, entertainment, and conveyor applications.
This RS PRO Multi-Core Industrial Cable balances performance, durability, and cost-efficiency, making it a reliable choice for diverse electrical control and power distribution tasks in industrial automation, manufacturing, and commercial settings.
Explore more RS PRO electrical cables on EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this cable is 70°C.
This model features 20 cores.
The conductors are made of tin copper wire.
The cable comes in a length of 100 meters.
It complies with EN, EAC, and CE standards.
The cable has a voltage rating of 440 V.
The outside diameter of this cable is 11 mm.
It has a black polyvinyl chloride (PVC) sheath.
This cable is unscreened, making it a cost-effective solution for certain applications.
The minimum operating temperature is -15°C.
The cable is flame retardant, enhancing safety in demanding environments.
This cable is suitable for automation, control equipment, entertainment, and conveyor applications.
