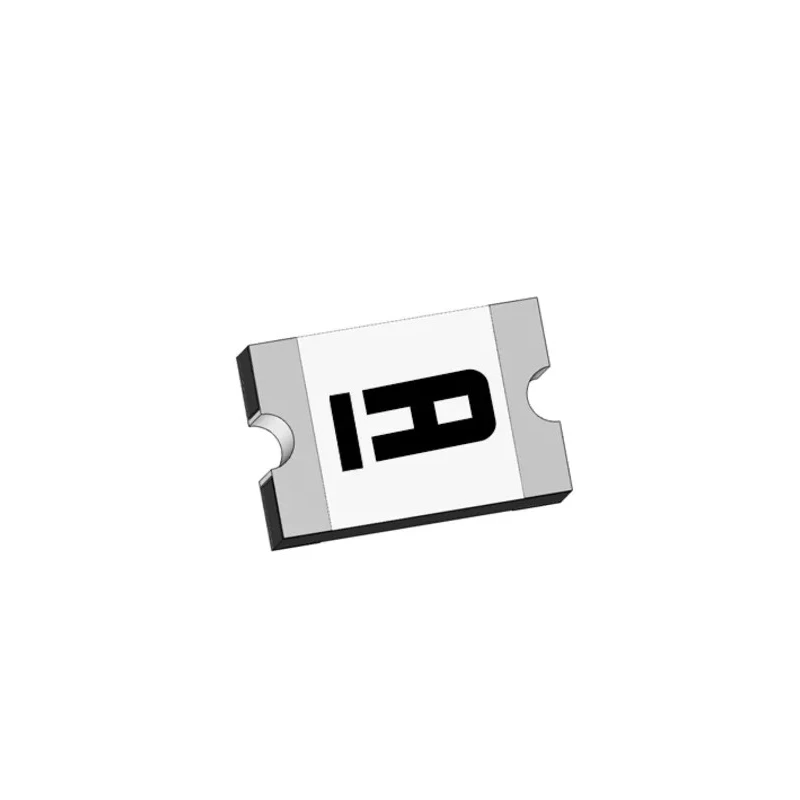

Eaton 0.75 A Resettable Fuse 6V Reel Low Resistance SMD PTC Fuse PTSLR08056V075
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 6V |
| Brand | Eaton |
| Height | 0.7mm |
| Length | 2.22mm |
| Model | PTSLR08056V075 |
| Width | 1.5mm |
| Current Rating | 50A |
| Series | Bussmann |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Trip Current | 1.5A |
| Power Dissipation | 0.6W |
| Standards/Approvals | RoHS, UL, cURus |
| Time to Trip | 0.2s |
| Hold Current | 0.75A |
| Minimum Resistance | 0.04Ω |
| Maximum Resistance | 0.16Ω |
Key Features
- Compact 0805 footprint suitable for surface mounting on printed circuit boards.
- Fast time-to-trip of 0.2 seconds enhances protection against overcurrent.
- Designed for low voltage handheld equipment, ensuring reliable performance.
- Applicable in USB protection, data ports, micromotors, and fan circuits.
- Supports PC-based medical equipment requiring precise current management.
- RoHS compliant with UL and cURus certifications.
- Supplied on reel for easy automated assembly processes.
- Manufactured in China under Eaton's Bussmann series.
Product Description
Eaton PTSLR08056V075 resettable fuse is an advanced low resistance SMD PTC fuse featuring a hold current rating of 0.75 A and operating voltage of 6V. It is engineered to provide rapid response with a 0.2 second time to trip, protecting sensitive electronic components from overcurrent conditions reliably.
This fuse has a compact 0805 package size with dimensions 2.22mm length, 1.5mm width, and 0.7mm height, which enables seamless integration into small and densely populated printed circuit boards commonly found in modern electronic devices.
It is ideally suited for applications such as USB protection, data ports, micromotor controls, and fan circuits. Its robust design supports use in low voltage handheld equipment and PC-based medical devices where precise current control is critical. The fuse’s low resistance (minimum 0.04Ω, maximum 0.16Ω) ensures minimal impact on normal circuit performance while effectively suppressing fault conditions.
The Eaton PTSLR08056V075 complies with RoHS directives and holds UL and cURus approvals, ensuring adherence to international safety and environmental standards. Packaged on reels, it supports efficient high-volume assembly processes in automated manufacturing environments.
Originating from Eaton’s Bussmann series and manufactured in China, this resettable fuse offers reliable circuit protection for various industrial, commercial, and medical electronics applications.
Compact 0805 surface-mount package for space-constrained PCB designs. Fast trip time ensures effective overcurrent protection. Low voltage rating for handheld and sensitive equipment. Industrial and medical use case suitability.
Compliance with international safety and environmental standards. Reel packaging supports automated assembly. Browse more Eaton Resettable Fuses and related electrical protection devices for advanced circuit safeguarding solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.75 A.
The maximum operating temperature for this model is 85°C.
This fuse has a fast time to trip of 0.2 seconds, enhancing protection against overcurrent.
The dimensions of the fuse are 2.22mm in length, 1.5mm in width, and 0.7mm in height.
The voltage rating for this resettable fuse is 6V.
The minimum resistance is 0.04Ω and the maximum resistance is 0.16Ω.
This model is suitable for applications such as USB protection, data ports, micromotor controls, and fan circuits.
It complies with RoHS directives and holds UL and cURus approvals.
The fuse is supplied on a reel, which supports automated assembly processes.
The minimum operating temperature for this model is -40°C.
The power dissipation rating of this fuse is 0.6W.
The trip current for this resettable fuse is 1.5A.
