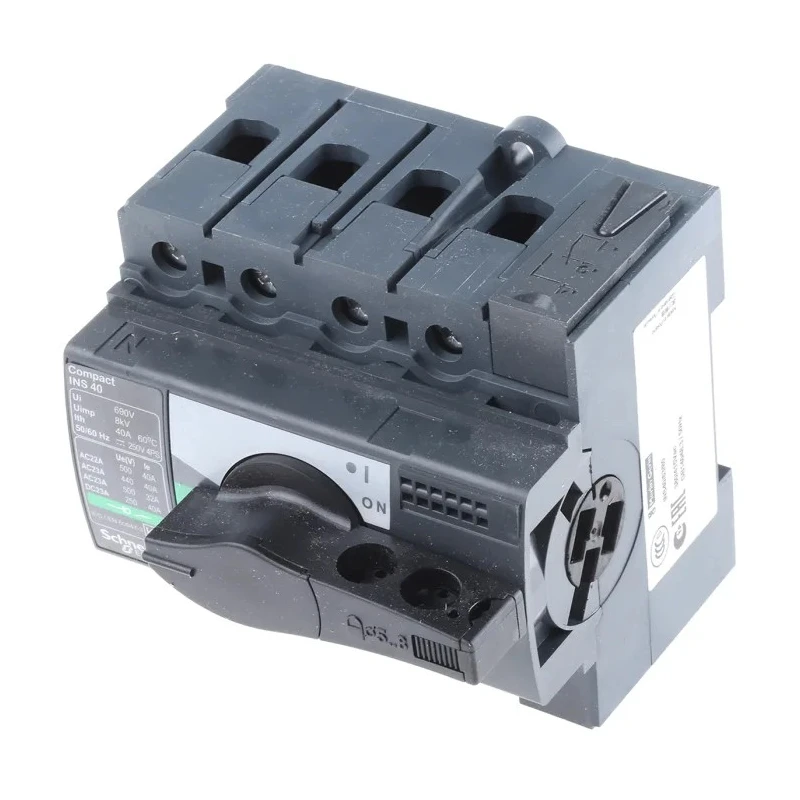

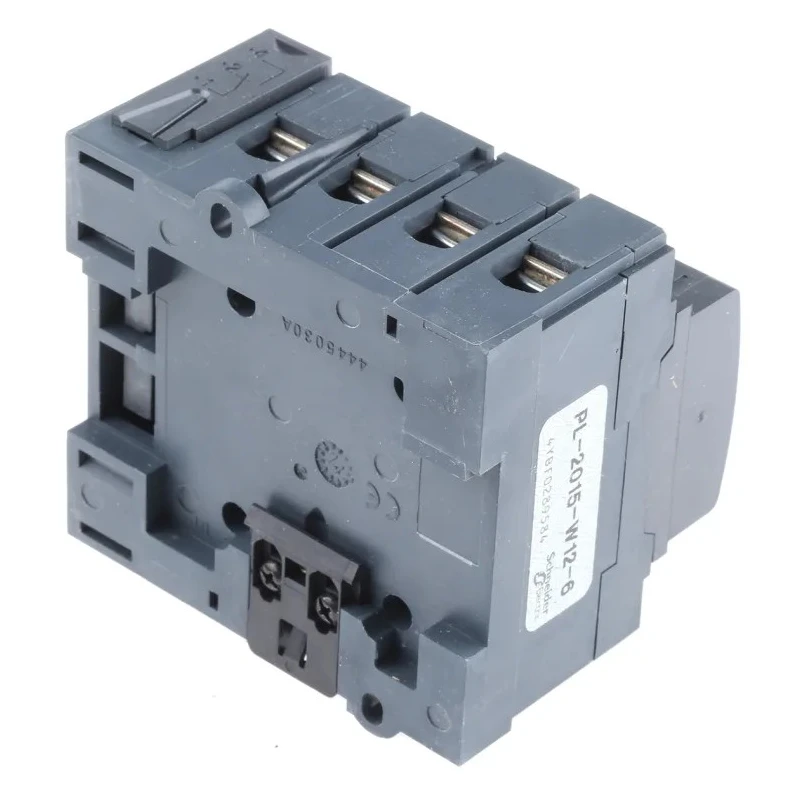

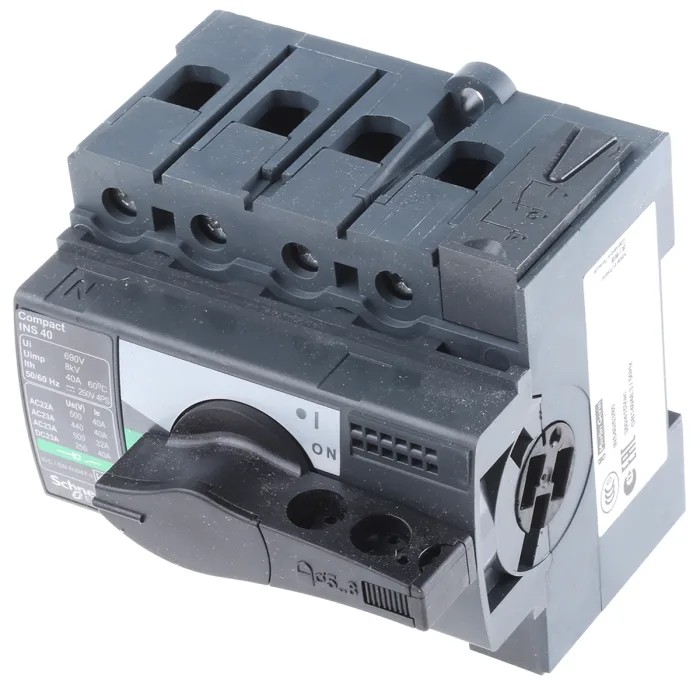

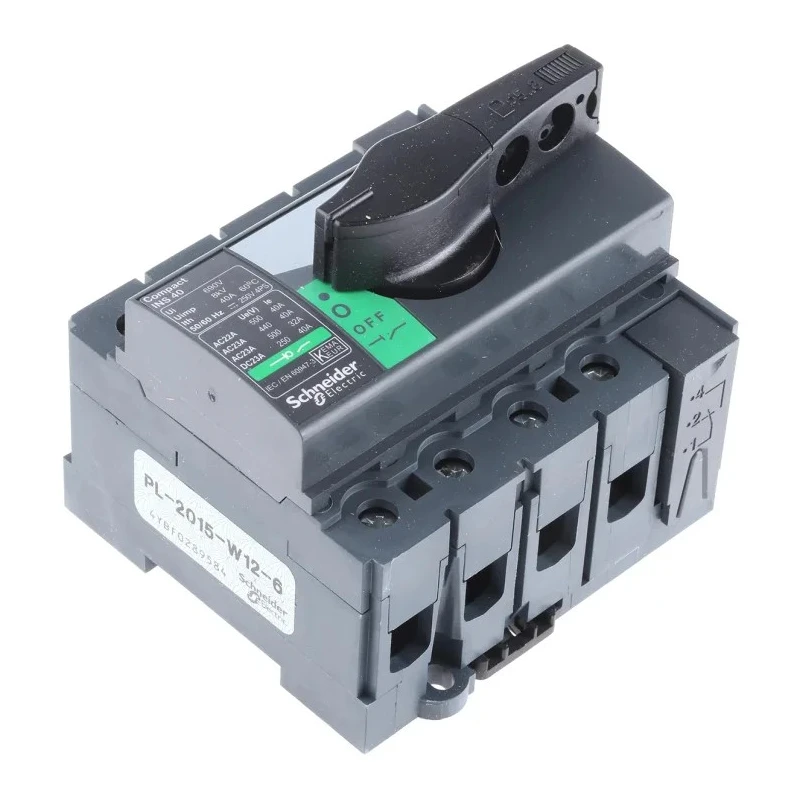

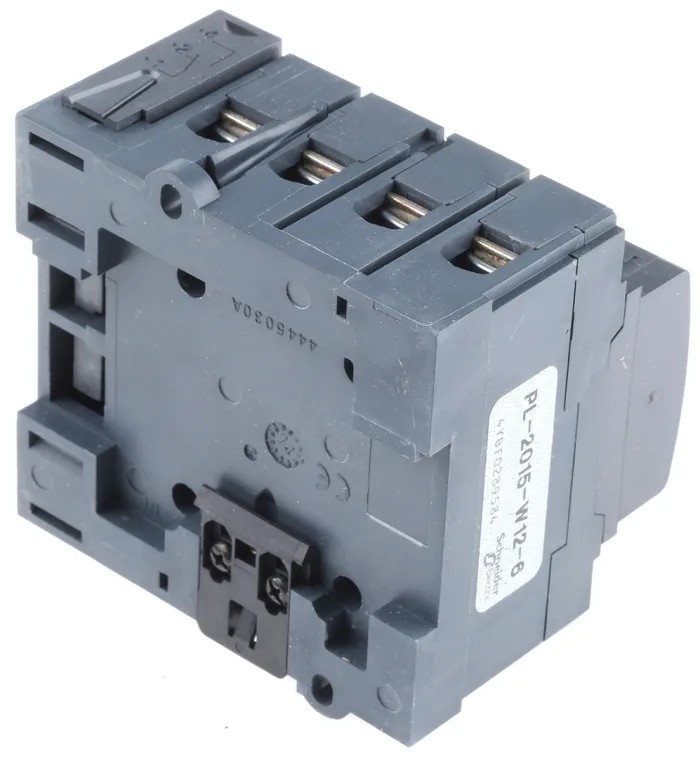

Schneider Electric 4-Pole Surface Isolator Switch, IP40, 22A, 22 kW, 3 Phase, ComPacT INS Series 28901

Schneider Electric 28901 4-Pole Surface Isolator Switch is a robust and reliable electrical switch designed for industrial and commercial applications needing secure isolation and control of three-phase electrical circuits. Rated for 22A current and 22 kW switching power, this surface-mounted isolator switch provides protection with an IP40 rating, making it suitable for indoor use where limited dust ingress is expected.

The switch features a black handle for easy manual operation and employs wire-type terminals for secure electrical connections. It is engineered to operate within a temperature range from -25°C minimum to 70°C maximum, ensuring durability and safety across various operating environments.

Manufactured under strict standards IEC 947-1, IEC 947-3, EN 60947-1, and EN 60947-3, the switch also complies with European RoHS directives, underscoring its sustainable design.

Applications include its use as inlet switches on modular distribution boards, PLC boxes, control cabinets, and local motor control boxes. The switch provides positive contact indication for enhanced operational safety and allows locking with up to three padlocks in the OFF position, with locking in the ON position also possible, enhancing workplace safety and compliance.

The compact size (90mm length x 81mm width x 62.5mm depth) and the ComPacT INS series pedigree make it a versatile choice in industrial control and automation systems. Its ability to safely switch AC voltages up to 240V and DC voltages up to 250V expands its usage scenarios in electrical installations.

Designed for surface mounting with IP40 rating to prevent accidental ingress of objects and provide reliable operation. Rated 22A switching current suitable for a wide range of industrial electrical equipment. Enables safe isolation of electrical circuits with positive contact indication.

Locking provisions improve operational safety and prevent unauthorized use. RoHS compliant and designed for disassembly, supporting sustainable electrical infrastructure development. Compact dimensions facilitate installation in varied electrical panel configurations.

ComPacT INS series assures quality and compatibility with modular distribution equipment.

This isolator switch is ideal for industrial, commercial, building automation, manufacturing, and motor control applications requiring reliable electrical isolation with robust operational features. Available from Schneider Electric with assured quality and global standards compliance.
