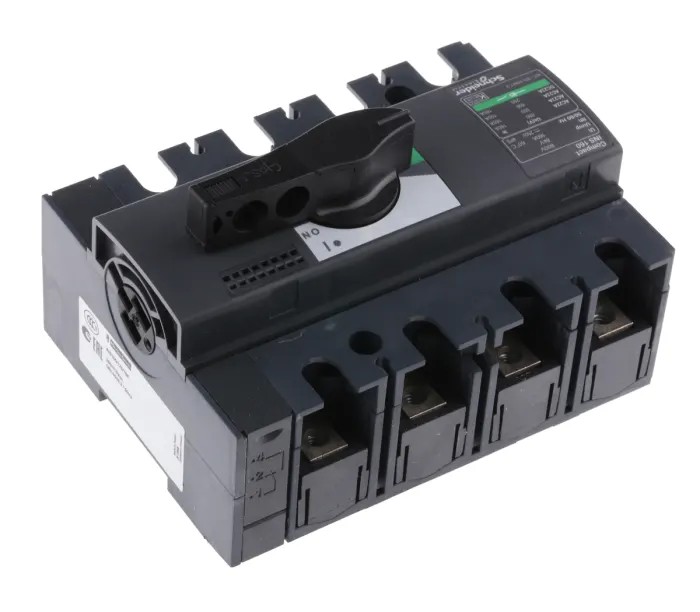

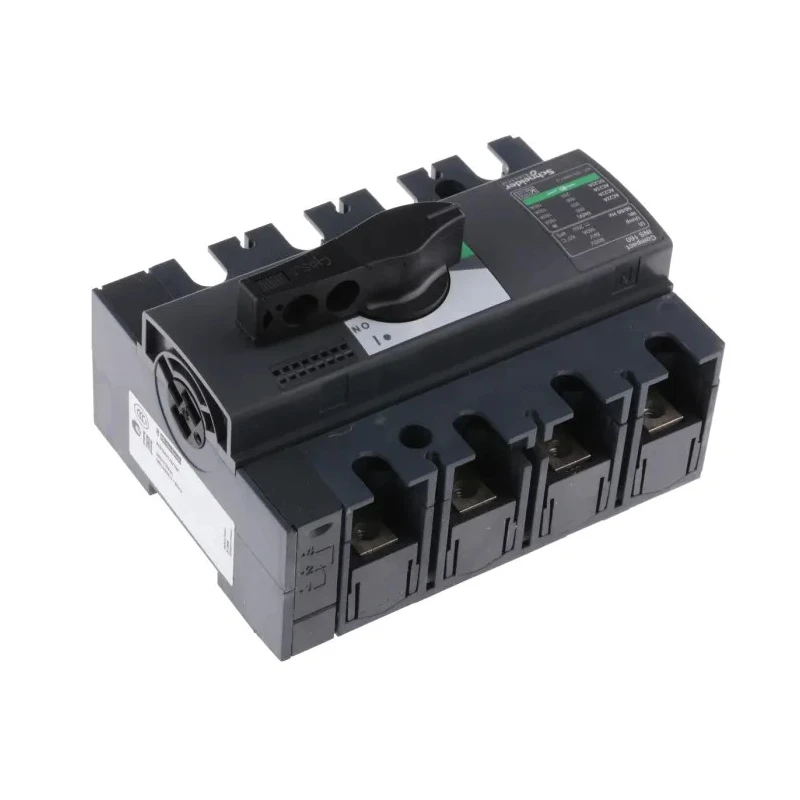

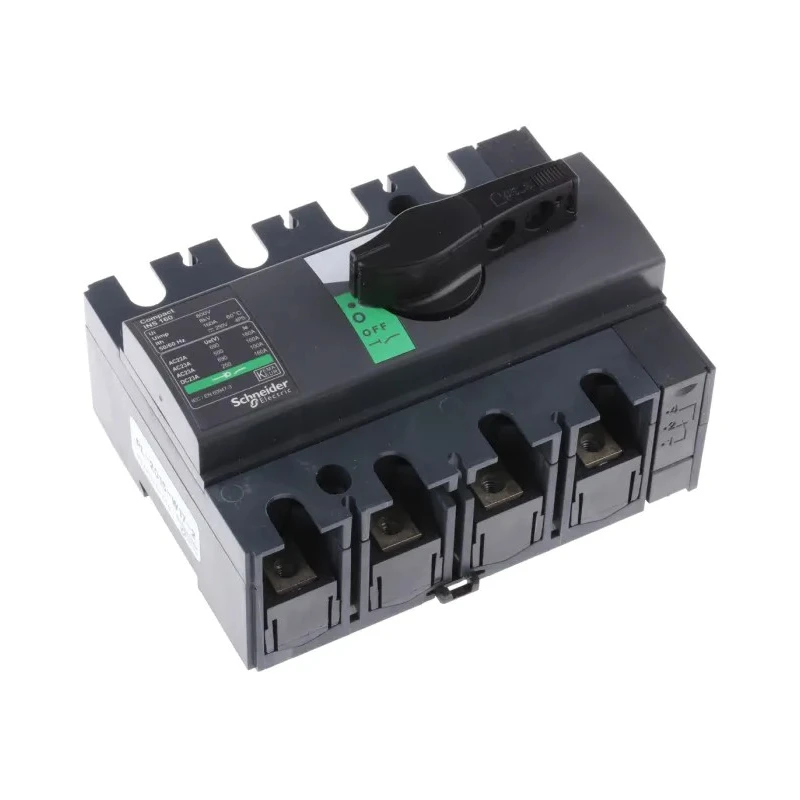

Schneider Electric 4-Pole Surface Isolator Switch, 160A, 22 kW, IP40, 3-Phase, Surface Mount 28913
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Schneider Electric |
| Length | 135mm |
| Model | 28913 |
| Depth | 62.5mm |
| IP Rating | IP40 |
| Width | 100mm |
| Mount Type | Surface |
| Series | ComPacT INS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 160A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Black |
| Number of Poles | 4 |
| Standards/Approvals | EU, RoHS |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Better World Claim | Designed for Disassembly |
| Switching Power | 22kW |
| Schneider Electric, Compact MCCB 4P 160A, Breaking Capacity 50 kA, Clip-OnBrand | Schneider Electric |
Key Features
- Surface mounted isolator switch for easy installation.
- IP40 rated enclosure suitable for indoor environments.
- Black handle with screw terminal type for secure connections.
- Supports switching voltages of 240V AC and 250V DC.
- Operating temperature range from -25°C to 70°C ensures durability in varying conditions.
- Lockable in OFF position with up to 3 padlocks for safety.
- ComPacT INS series ensuring compliance with IEC and EN standards.
- Manufactured in Poland with EU and RoHS approvals.
Product Description
Schneider Electric 28913 is a 4-pole surface isolator switch designed for industrial and commercial applications requiring reliable isolation and switching of electrical circuits. This isolator switch supports 3-phase electrical distribution systems and offers a switching current of up to 160A with a power rating of 22 kW, making it suitable for motor control, machine tools, and PLC cabinet installations.
The unit features a surface mount design allowing straightforward mounting on modular distribution boards, local control boxes, or inlet switches where easy access is essential.
Constructed to IP40 standard, it protects against solid objects above 1 mm but is intended for indoor use, with a robust black handle and screw terminal connections for secure wiring. The switch includes an extended rotating control mechanism that maintains isolation throughout operation, coupled with the capability to be locked in the OFF position by up to three padlocks, enhancing safety during maintenance.
Operational temperature ranges from -25°C to +70°C, ensuring durability in a variety of industrial environments. The ComPacT INS40/160 series complies with industry standards IEC 947-1, IEC 947-3, EN 60947-1, EN 60947-3, NFC 79130, and CNOMO, reinforcing its suitability for rigorous applications.
The compact dimensions of 135mm length, 100mm width, and 62.5mm depth provide a space-efficient solution for electrical isolation tasks. Manufactured in Poland, this switch follows EU and RoHS regulations, supporting sustainable and compliant installations.
Surface mount isolator switch with 4 poles for three-phase circuits. IP40 protection and black handle for operational safety. Lockable OFF position with up to 3 padlocks for enhanced security. Switching rating: 160A current, 22 kW power at 240V AC and 250V DC.
Temperature range from -25°C to 70°C suitable for varied environments. Complies with IEC and EU electrical standards ensuring quality. Compact form factor measuring 135 x 100 x 62.5 mm. Manufactured in Poland with RoHS compliance and Better World design for sustainability.
This Schneider Electric isolator switch is ideal for industrial, commercial, electrical distribution, automation, and control applications requiring reliable isolation and safety. Its robust construction and certified compliance make it a trusted component for switchgear and electrical panels.
Explore the extensive range of Isolator Switches and Schneider Electric products on EnvMart for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this isolator switch is 160A.
This model has a power rating of 22 kW.
It features an IP40 rated enclosure, suitable for indoor environments.
The dimensions are 135mm in length, 100mm in width, and 62.5mm in depth.
The operating temperature range is from -25°C to +70°C.
It can be locked in the OFF position with up to three padlocks for safety during maintenance.
It uses screw terminal connections for secure wiring.
This unit supports 3-phase electrical distribution systems.
It complies with IEC 947-1, IEC 947-3, EN 60947-1, EN 60947-3, NFC 79130, and CNOMO standards.
This isolator switch is manufactured in Poland.
The handle of this model is black.
It is suitable for industrial and commercial applications requiring reliable isolation and switching of electrical circuits.
